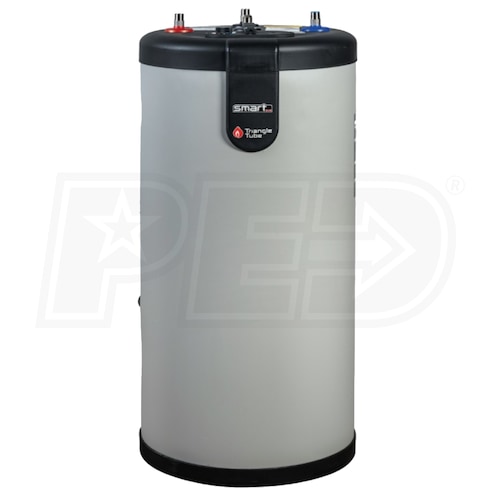

Triangle Tube Smart 316 - 36 Gallon - Residential Indirect Water Heater

Model:

P3SMART316L40

Write A Review
$1,341.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Dec 23rd
Shipping to60601
synchrony card logo
$224 / Month
Suggested monthly payments with 6 month financing.
Triangle Tube Smart 316 - 36 Gallon - Residential Indirect Water Heater
Triangle Tube Smart 316 - 36 Gallon - Residential Indirect Water Heater
Model: P3SMART316L40
$1,341.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Triangle Tube is best known for feats of hydronic innovation and incredibly efficient products. Heated by the hot water from your boiler, the Triangle Tube Smart 316 Series Indirect Water Heater consumes less fuel and conserves energy. With the exclusive "Tank-in-Tank" technology, the Smart 316 delivers a longer lasting and more efficient tank life. Featuring a recovery rate up to three times faster than a conventional water heater, the Smart 316 Series Water Heater heats more water more efficiently, making it ideal for the energy conscious consumer. The Smart 316 Series is self-cleaning and self-descaling and features acid pickling, helping to increase it's corrosion resistance. With an average lifespan of 20 years, the Triangle Tube Smart 316 Series Indirect Water heater is the perfect, efficient investment.
  • "Tank-in-Tank" Technology
  • Triangle Tube's "Tank-in-Tank" technology features an exclusive stainless steel, 316L inner tank that's suspended within the outer tank. This prevents lime build up and ensures efficient heat transfer.
  • Stainless Steel Construction
  • With 316L stainless steel construction, the Triangle Tube Smart 316 Indirect Water Heater is ideal for high temperature applications and doesn't require an anode rod.
  • Efficiency-Boosting Insulation
  • Two inches of CFC (chlorofluorocarbon) free foam insulation in the Triangle Tube Smart 316 helps to discourage heat loss, resulting in improved efficiency.
  • Superior Surface Area
  • The large heating area of the Smart 316 Water Heater allows for higher output and quick recovery time, allowing a smaller water heater to be used for the same water demand.
  • Low Pressure Drop
  • With the lowest pressure drop in the industry, the Triangle Tube Smart 316 can be used with a smaller circulator, resulting in higher efficiency.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

P3SMART316L40
specs product image PID-153293
General Information
Type
Indirect Water Heater
Product Line
Smart 316
Product Category
Water Heater - Indirect-Fired
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Indirect Fired
Storage Type
Tank
Application
Residential
Capacity
36 Gallons
Performance
Minimum Input Capacity
112000 BTU
First Hour Delivery Learn More
First Hour Delivery
Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
180 Gallons
Continuous Recovery Rate
150 Gallons
Dimensions
Storage Volume
36 Gallons
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
46 Inches
Product Width
22 Inches
Product Depth
22 Inches
Product Weight
135 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Vessel Warranty
Lifetime Years
