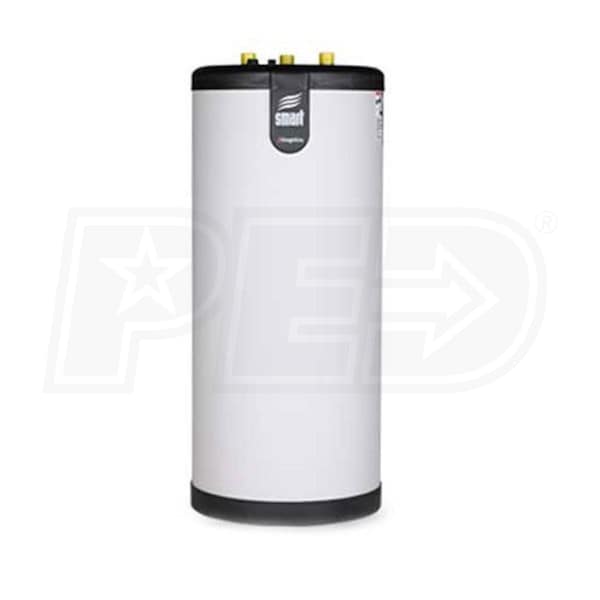

Triangle Tube SMART 100 - 95 Gallon - Indirect Water Heater

Model:

SMART 100

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Triangle Tube SMART 100 - 95 Gallon - Indirect Water Heater
Triangle Tube SMART 100 - 95 Gallon - Indirect Water Heater
Model: SMART 100
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Triangle Tube is best known for two things: feats of hydronic innovation and incredibly efficient products. These qualities are intertwined in Triangle Tube's Smart Series Indirect Fired water heaters. The Smart water heaters feature an exclusive "tank-in-tank" design that Triangle Tube has been refining for three decades. To heat domestic water, the outer tank of the Smart 100 fills with boiler water and the surface of the inner tank becomes a heat exchanger. Two inches of polyurethane insulation ensures that your domestic hot water stays hot, and stainless steel construction of the inner tank provides exceptional durability. When it comes to making a decision on your next water heater, the Smart lives up its name.
  • Tank-in-Tank Efficiency
  • Using boiler water as a heat source for the Smart 100 means that whenever your boiler fires it is providing heat not just for your home, but for your water as well.
  • Tank-in-Tank Safety
  • High temperatures prevent the growth of bacteria. High quality stainless steel and Triangle Tube's tank-in-tank design allow your domestic hot water to be stored at higher temperatures than traditional water heaters.
  • Incredible Recovery Rate
  • The large surface area of the inner tank means that water is heated very quickly. Smart Series Indirect Fired water heaters boast a recovery rate up to 300% greater than that of conventional water heaters.
  • Self-Cleaning
  • The inner tank of the Smart 100 is contoured to promote water movement. This design prevents lime build-up in your water heater and keeps it running efficiently.

Specifications

SMART 100
specs product image PID-23176
Overview
Product Category
Water Heater - Indirect-Fired
General Information
Type
Indirect Water Heater
Product Line
Smart
Product Category
Water Heater - Indirect-Fired
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Indirect Fired
Storage Type
Tank
Coils Quantity
1
Connection Type
NPT
Performance
First Hour Delivery Learn More
First Hour Delivery
Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
775 Gallons
Continuous Recovery Rate
700 Gallons
Dimensions
Storage Volume
95 Gallons
Cold Water Inlet
1 1/2 Inches
Hot Water Outlet
1 1/2 Inches
Supply Connection
1 1/2 Inches
Return Connection
1 1/2 Inches
Product Height
78 Inches
Product Width
26 Inches
Product Depth
26 Inches
Product Weight
362 Pounds
Shipping Weight
370 Pounds
Certifications
ETL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Vessel Warranty
10 Years
