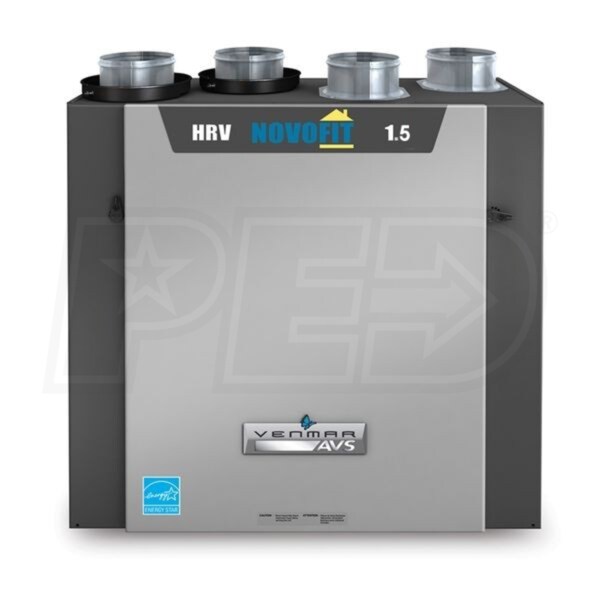

Venmar AVS E15 - 183 Max CFM - Heat Recovery Ventilator (HRV) - Top Ports - 6" Connection - Recirculation Defrost Type

Model:

43135

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Venmar AVS E15 - 183 Max CFM - Heat Recovery Ventilator (HRV) - Top Ports - 6
Venmar AVS E15 - 183 Max CFM - Heat Recovery Ventilator (HRV) - Top Ports - 6" Connection - Recirculation Defrost Type
Model: 43135
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    Venmar has a long, decorated history in the recovery ventilator market, manufacturing high grade home ventilation products that have helped millions of homes remove their stale air without sacrificing heat to the outdoors. A new decade calls for new products with new standards, and Venmar has answered this call with the E series heat recovery ventilators. The E series brings a new efficiency and ease of installation standard to the HRV market, with a new high efficiency heat recovery core and a built-in strap and balancing system to get your HRV up and running in record time.

    Product Features

    Polypropylene Heat Exchanger Core
    The high efficiency polypropylene heat exchanger core in Venmar E series HRVs brings fresh air into your home from the outdoors, pre-conditioning it with the heat energy in the stale air it expels from your home. The end result is a home that is both efficient and well ventilated, keeping you and your family feeling fresh.

    Expels Excess Moisture
    The E series HRV also functions as a dehumidifier. Excess moisture in your home's air is vented to the outdoors, keeping basements dry and potential mold and mildew growth to a minimum.

    Recirculation Defrost Cycle
    Venmar E series units occasionally need to defrost their internal core due to condensation buildup on the heat exchanger surfaces. A separate operation mode is included for this purpose which circulates warm air from your home throughout the unit, melting any frozen condensate in the process.

    Equalizes Indoor and Outdoor Pressure
    A less well known side effect of a well insulated home is unequal air pressure inside and outside of your home. Both negative and positive air pressure have negative consequences and can lead to increased energy costs and mold growth. Venmar's recovery ventilators solve this problem as well, allowing the air inside your home to exchange naturally with the outside air, easily balancing the pressure difference.

    Balancing System Reduces Installation Time
    The E series recovery ventilators come with a balancing system included from the factory. This eliminates the need for an external flow meter for proper installation, reducing installation labor costs.

Specifications

43135
specs product image PID-50155
General Information
Type
HRV
Product Line
AVS E15
Defrost Type Learn More
Defrost Type
ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Recirculation
Port Location
Top
Core Material
Polypropylene
UPC
772371131019
Performance
Maximum Air Flow
183 CFM
Apparent Sensible Effectiveness
83 %
Sensible Recovery Efficiency
75 %
Electrical Data
Voltage
120 Volts
Power Consumption
125 Watts
Phase
1
Frequency
60 Hz
Current Draw
1 Amp
Dimensions
Condensate Drain Size
1/2 Inch
Duct Connection
6 Inches
Product Height
25 5/8 Inches
Product Width
24 7/16 Inches
Product Depth
15 1/8 Inches
Product Weight
52 Pounds
Exchanger Area
100 Square Feet
Certifications
Country of Origin
Canada
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
Limited Lifetime Years
