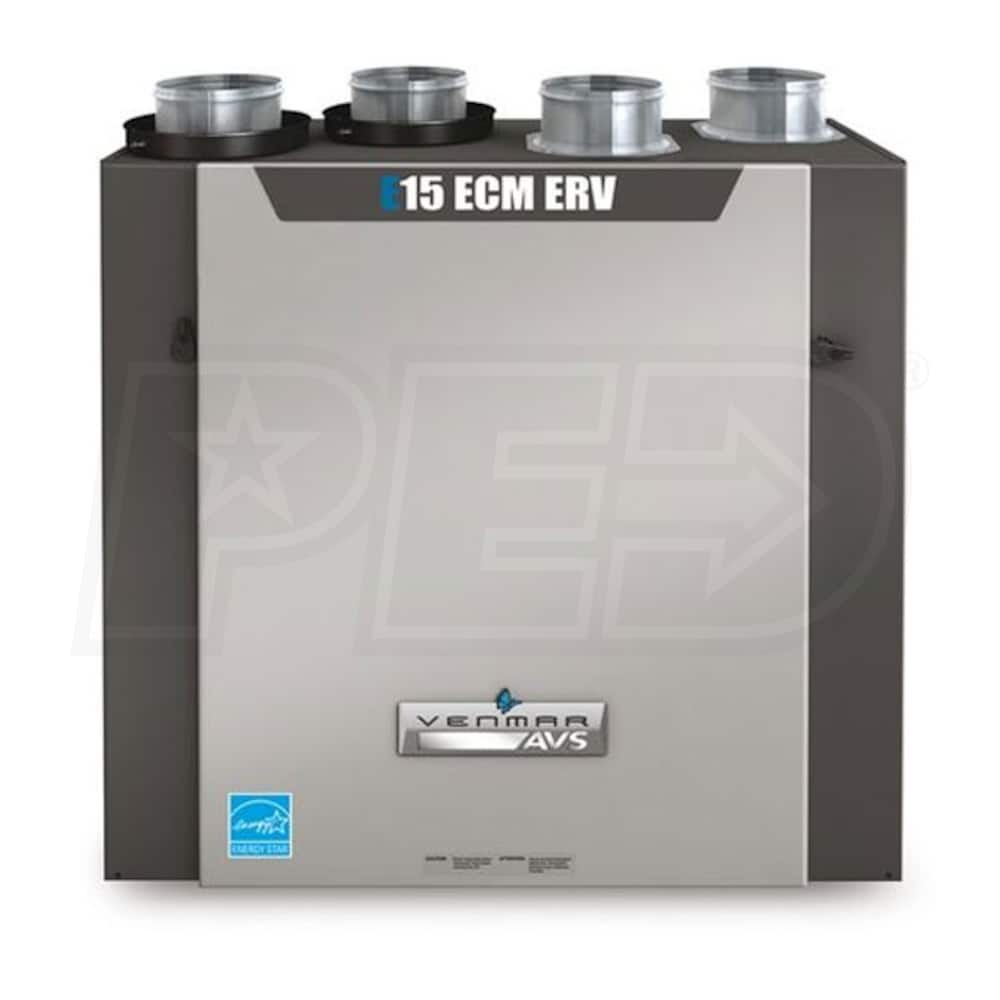

Venmar E15 ECM - 140 Max CFM - Energy Recovery Ventilator (ERV) - Top Ports - 6" Connection - Recirculation Defrost Type

Model:

43911

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Venmar E15 ECM - 140 Max CFM - Energy Recovery Ventilator (ERV) - Top Ports - 6
Venmar E15 ECM - 140 Max CFM - Energy Recovery Ventilator (ERV) - Top Ports - 6" Connection - Recirculation Defrost Type
Model: 43911
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    Using a recovery ventilator in your home's heating and cooling system comes with a wide variety of indoor air quality benefits, keeping your home comfortable in all seasons as well as mold and mildew free. Venmar has challenged the small efficiency decrease that usually comes with these air quality benefits with their EKO line of recovery ventilators. The EKO line is built from the ground up to satisfy every efficiency expectation imaginable with a newly developed ECM motor and low wattage internal circuitry design. Venmar's unique homeshield defrosting system and included mounting straps simplify both installation for the contractor and usage for the homeowner.

    Product Features

    Polymerized Energy Recovery Core
    The polymerized paper energy recovery core in Venmar ERVs brings fresh air into your home from the outdoors, pre-conditioning it with the heat energy in the stale air it expels from your home. The end result is a home that is both efficient and well ventilated, keeping you and your family feeling fresh.

    Balances Indoor Moisture Levels
    The ERV allows moisture to permeate the core's heat exchanger surface, bringing more moisture into your home in the winter heating months and less moisture into your home in the summer during cooling season.

    Homeshield Defrosting System
    Venmar EKO recovery ventilators use Venmar's homeshield defrosting system. This system prevents ice buildup on the core of the recovery ventilator for as long as possible, preventing negative pressure inside your home, and when necessary defrosts the ice with a quick recirculation cycle.

    State of the Art ECM Motor
    Venmar EKO recovery ventilators are built with a high efficiency ECM motor, requiring much less overall electricity to operate. Combined with a smarter internal wiring schematic, the motor brings efficiency up to unbelievable levels.

    Balancing System Reduces Installation Time
    The EKO series recovery ventilators come with a balancing system included from the factory. This eliminates the need for an external flow meter for proper installation, reducing installation labor costs.

Specifications

43911
specs product image PID-22924
General Information
Type
ERV
Product Line
AVS
Defrost Type Learn More
Defrost Type
ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Recirculation
Port Location
Top
Core Material
Polymerized Paper
UPC
772371118980
Performance
Maximum Air Flow
140 CFM
Apparent Sensible Effectiveness
73 %
Minimum Air Flow
40 CFM
Sensible Recovery Efficiency
67 %
Total Recovery Efficiency
52 %
Electrical Data
Voltage
120 Volts
Power Consumption
90 Watts
Phase
1
Frequency
60 Hz
Current Draw
1.3 Amps
Dimensions
Condensate Drain Size
1/2 Inch
Duct Connection
6 Inches
Product Height
24 9/16 Inches
Product Width
18 1/4 Inches
Product Depth
14 15/16 Inches
Product Weight
65 Pounds
Certifications
Country of Origin
Canada
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
5 Years
