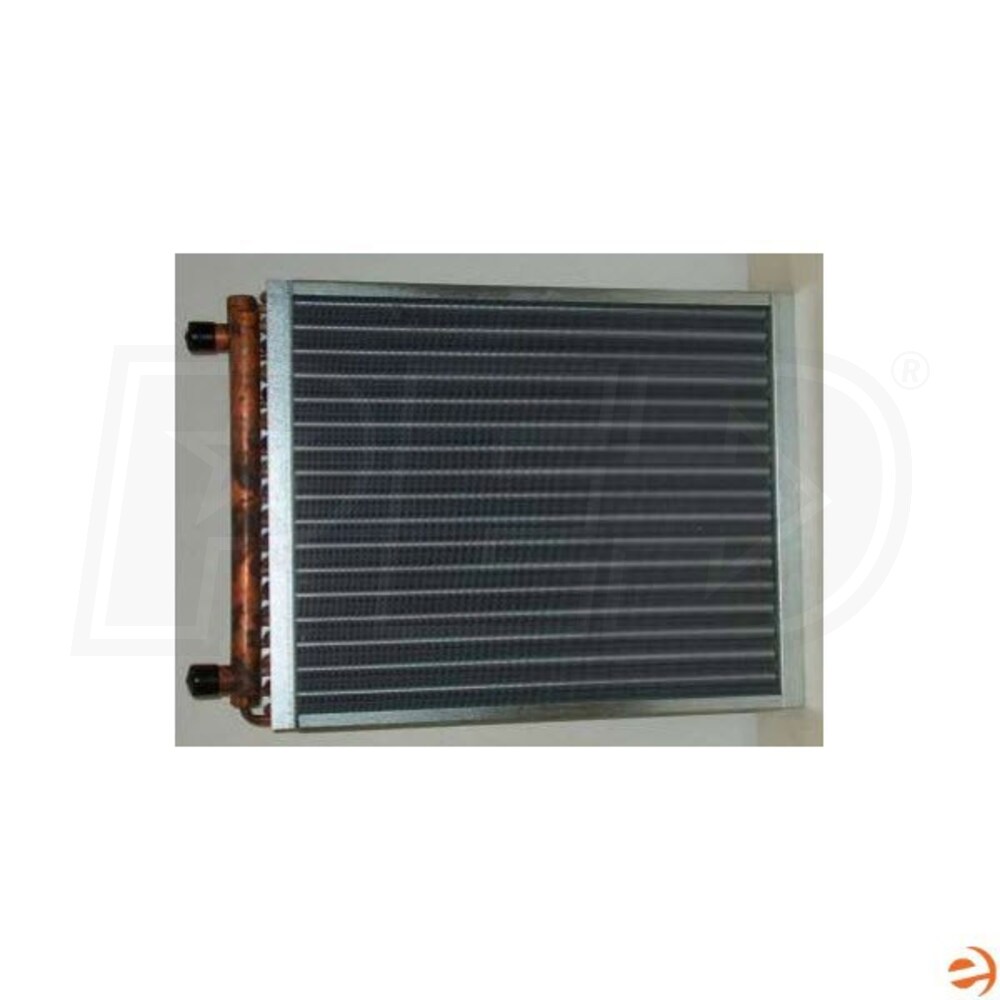

WSD Hot Water Coil, Water to Air Heat Exchanger - 40,000-106,000 BTU
Model:
WSD 16X18
+
Share This Product
Features
- WSD WSD 16X18 Features
- 16" x 18" fin dimension
- 20 gauge steel casing
- Three row of coils
- 1" copper sweat headers
Hot Water Coil, Water to Air Heat Exchanger is a three row A-shaped coil with twelve fins per inch. It is designed to transfer heat energy between water and another medium (usually air) as quickly and efficiently as possible. Heating coils transmit energy from hot water to a stream of air; cooling coils extract energy from an air stream and add it to cold water. The coils themselves consist of a matrix of copper tubes through which the water flows. The tubes run back and forth between two end-plates in an arrangement that lets the air flow perpendicular to the tubes. The tubes pass through and are attached to a layered array of thin metal plates known as fins. The fins are also perpendicular to the tubes, which mean they lie parallel to the direction of air flow. The air flows between them. Energy either passes from the water via the tubes and fins to the air or from the air via the fins and tubes to the water.
Specifications
WSD 16X18
Overview
Product Category
Boiler Accessories
General Information
Product Category
Boiler Accessories
Refrigerant Type
Hydronic
Casing
Cased
Style
Slab Coil
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
106000 BTU
Minimum Input Capacity
40000 BTU
Dimensions
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
16 1/4 Inches
Product Width
20 Inches
Product Depth
3 1/2 Inches
Product Weight
11.61 Pounds
Certifications
Country of Origin
United States
UL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
