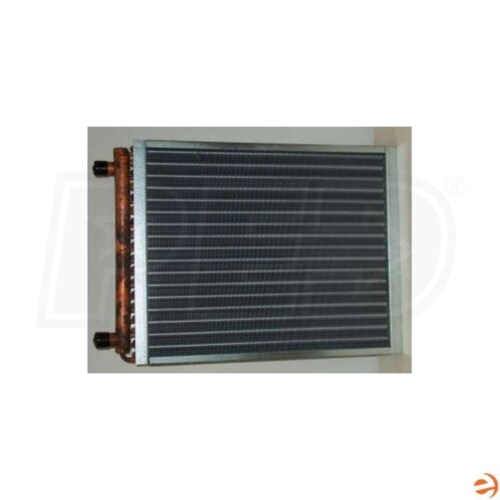

WSD Hot Water Coil, Water to Air Heat Exchanger - 49,000-133,000 BTU

Model:

WSD 18X20

Write A Review
$419.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
synchrony card logo
$70 / Month
Suggested monthly payments with 6 month financing.
WSD Hot Water Coil, Water to Air Heat Exchanger - 49,000-133,000 BTU
WSD Hot Water Coil, Water to Air Heat Exchanger - 49,000-133,000 BTU
Model: WSD 18X20
$419.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

    Hot Water Coil, Water to Air Heat Exchanger is a three row A-shaped coil with twelve fins per inch. It is designed to transfer heat energy between water and another medium (usually air) as quickly and efficiently as possible. Heating coils transmit energy from hot water to a stream of air; cooling coils extract energy from an air stream and add it to cold water. The coils themselves consist of a matrix of copper tubes through which the water flows. The tubes run back and forth between two end-plates in an arrangement that lets the air flow perpendicular to the tubes. The tubes pass through and are attached to a layered array of thin metal plates known as fins. The fins are also perpendicular to the tubes, which mean they lie parallel to the direction of air flow. The air flows between them. Energy either passes from the water via the tubes and fins to the air or from the air via the fins and tubes to the water.
  • WSD WSD 18X20 Features
  • 18" x 20" fin dimension
  • 20 gauge steel casing
  • Three row of coils
  • 1" copper sweat headers

Specifications

WSD 18X20
specs product image PID-45155
Overview
Product Category
Boiler Accessories
General Information
Product Category
Boiler Accessories
Refrigerant Type
Hydronic
Casing
Cased
Style
Slab Coil
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
133000 BTU
Minimum Input Capacity
49000 BTU
Dimensions
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
18 1/4 Inches
Product Width
22 Inches
Product Depth
3 1/2 Inches
Product Weight
14.44 Pounds
Certifications
Country of Origin
United States
UL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
