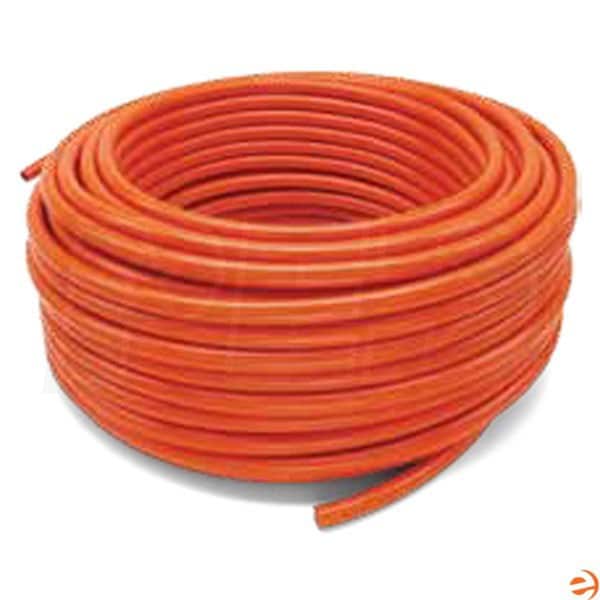

Watts Radiant RadiantPEX-AL - 1/2" - PEX-AL-PEX Tubing - 1000' Length - Orange

Model:

RL0508-1000-OR

Write A Review
$2,498.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order
synchrony card logo
$417 / Month
Suggested monthly payments with 6 month financing.
Watts Radiant RadiantPEX-AL - 1/2
Watts Radiant RadiantPEX-AL - 1/2" - PEX-AL-PEX Tubing - 1000' Length - Orange
Model: RL0508-1000-OR
$2,498.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

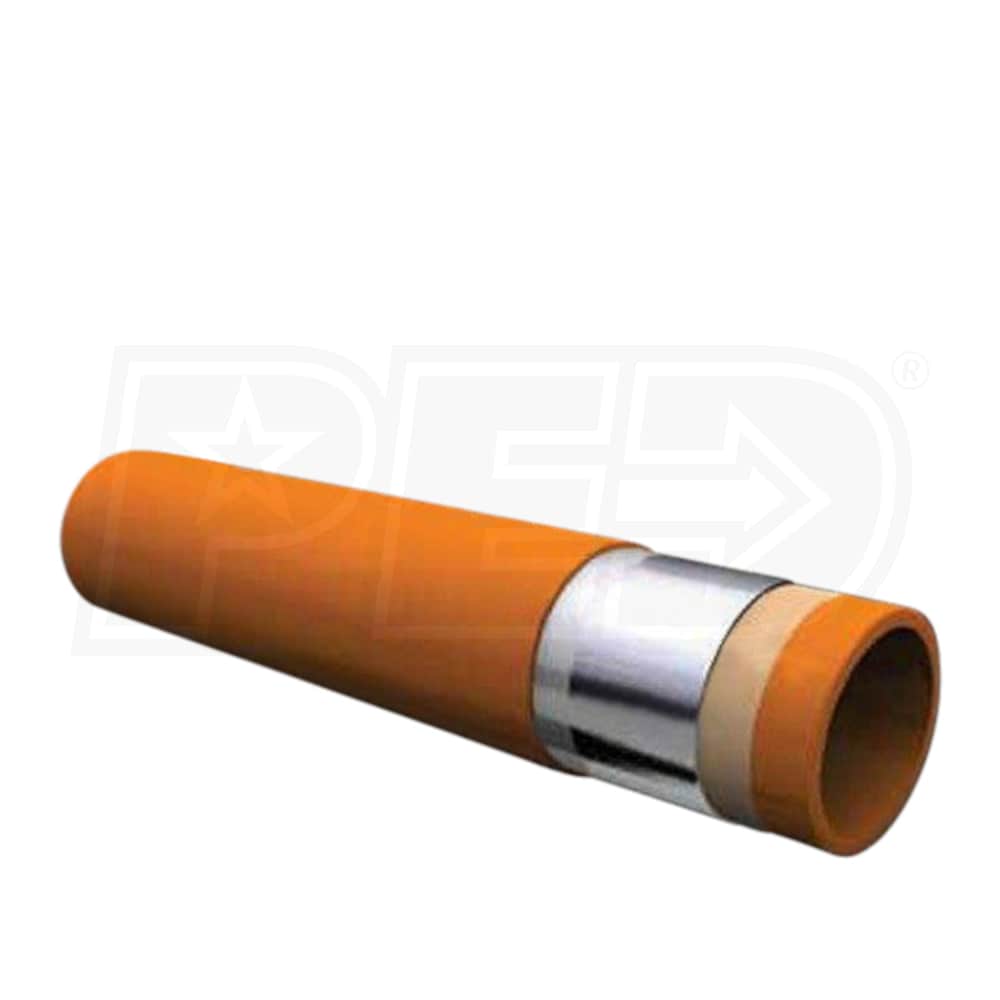

    Watts Radiant RadiantPEX-AL is a long-lasting, durable composite tubing pipe specifically developed for radiant floor heating, snow melting, and distribution piping. This unique 5-layer pipe's definitive feature is a layer of aluminum sandwiched in between two layers of durable cross-linked polyethylene rubber. This layer of aluminum gives the tube the ability to hold any shape it is formed into, allowing installations of PEX-AL-PEX pipe to be completed significantly faster than installations where standard pipe is used. The layer of aluminum also reduces expansion and contraction distance to an absolute minimum, making RadiantPEX-AL a steadfast, long-lasting piping solution for nearly any radiant heating application.
  • Holds its Shape for Easy Installation
  • Once bent into a certain shape by the installer, RadiantPEX-AL will hold that shape until it is bent otherwise. This allows one person to install RadiantPEX-AL faster than nearly any other PEX tubing.
  • Minimal Contraction and Expansion Distance
  • PEX tubing normally expands and contracts as the temperature changes. The layer of aluminum in RadiantPEX-AL tubing reduces these fluctuations in size to an absolute minimum. This reduces wear and tear on the hydronic system.
  • Silane Cross-Linking Construction
  • RadiantPEX-AL is manufactured using a superior manufacturing technology called Silane Cross-Linking. This manufacturing process gives the two PEX layers in the tubing much higher burst strength and provides superior anti-oxidant protection.
  • Highly Corrosion Resistant
  • RadiantPEX-AL tubing has unparalleled corrosion resistance, improving durability and further minimizing needed maintenance on the tubing throughout service life.

Specifications

RL0508-1000-OR
specs product image PID-25747
Overview
Product Category
Radiant Heating
UPC
840213095376
General Information
Product Line
RadiantPEX-AL
Product Category
Radiant Heating
Oxygen Barrier
Yes
Number of Pipes
1
Material
PEX-AL-PEX
Insulation
Yes
Dimensions
Product Diameter
1/2 Inch
Product Length
1000 Feet
Shipping Weight
70 Pounds
Inner Diameter
1/2 Inch
Outer Diameter
5/8 Inch
Certifications
Country of Origin
United States
UPC Listed
Yes
NSF Certified Learn More
NSF Certified
The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
Yes
ASTM Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
25 Years
