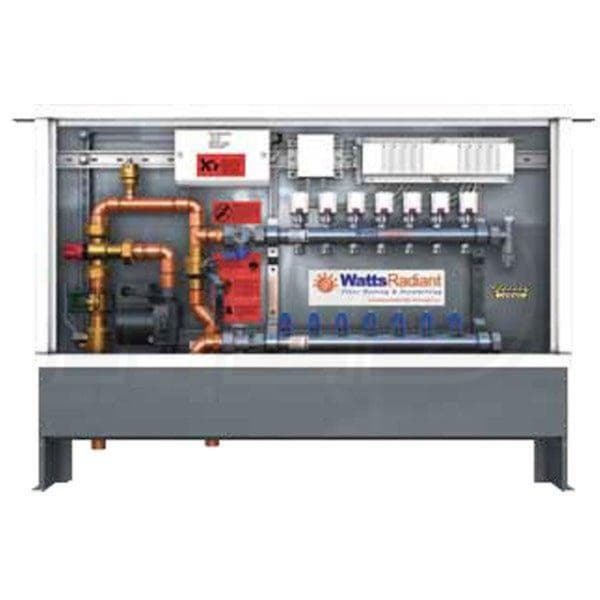

Watts Radiant HydroNex - 4 Circuits - Zone Mix Pump Panel - With Actuators - Watts Radiant 1558 Circulator
Model:
ZM-A-4
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Long Lasting Strength
- The panel itself is made out of powder coated steel. This gives the panel the strength and rigidity it needs to give you years of reliable use.
- Stainless Steel Manifold
- The included distribution manifold is made from stainless steel for corrosion resistance and can supply up to 2 GPM to each zone. Flow meters are included for each circuit for quick temperature readings.
- Pre-Wired Valve Actuators
- This zone panel contains actuators for every single outlet on the included manifold. These actuators are pre-wired to an included valve actuator control, taking any guesswork out of the installation.
- Primary Circulation Pump
- This panel includes a primary circulation pump powerful enough to circulate water throughout the entire hydronic system. The pump comes pre-wired and is tested before it leaves the factory to assure good performance.
- Temperature Mixing Capability
- The zone mix pump panel has a three way mixing valve to the panel enclosure, adding fixed temperature mixing capability to your hydronic circuit. This prevents system water temperature from exceeding a certain threshold.
Zone panels combination of commonly used components and pre-installed wiring make them Watts Radiant's most popular panel. It combines a rigid, durable powdered steel casing with a Watts Radiant M series stainless steel manifold. The manifold is pre-mounted to the casing, taking any guesswork out of installation. The enclosure has a built-in latching door to prevent tampering, and the manifold includes isolation valves, temperature gauges, and a vent and purge assembly. The ZM-A-4 panel also includes a primary circulator and a three-way thermostatic mixing valve to the panel, eliminating the need for a separate primary circulator in the hydronic circuit and giving the panel the ability to adjust temperature on the fly.
Specifications
ZM-A-4
Overview
Product Category
Boiler Accessories
UPC
840213076238
General Information
Type
Zone Mix Pump Panel
Product Line
HydroNex
Product Category
Boiler Accessories
Dimensions
End 1 Connection Type
NPT
End 1 Connection Size
1 1/4 Inches
End 2 Connection Type
NPT
End 2 Connection Size
1 1/4 Inches
Product Height
29 1/2 Inches
Product Width
41 1/2 Inches
Product Depth
4 1/2 Inches
Shipping Weight
70 Pounds
Certifications
Country of Origin
United States
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
