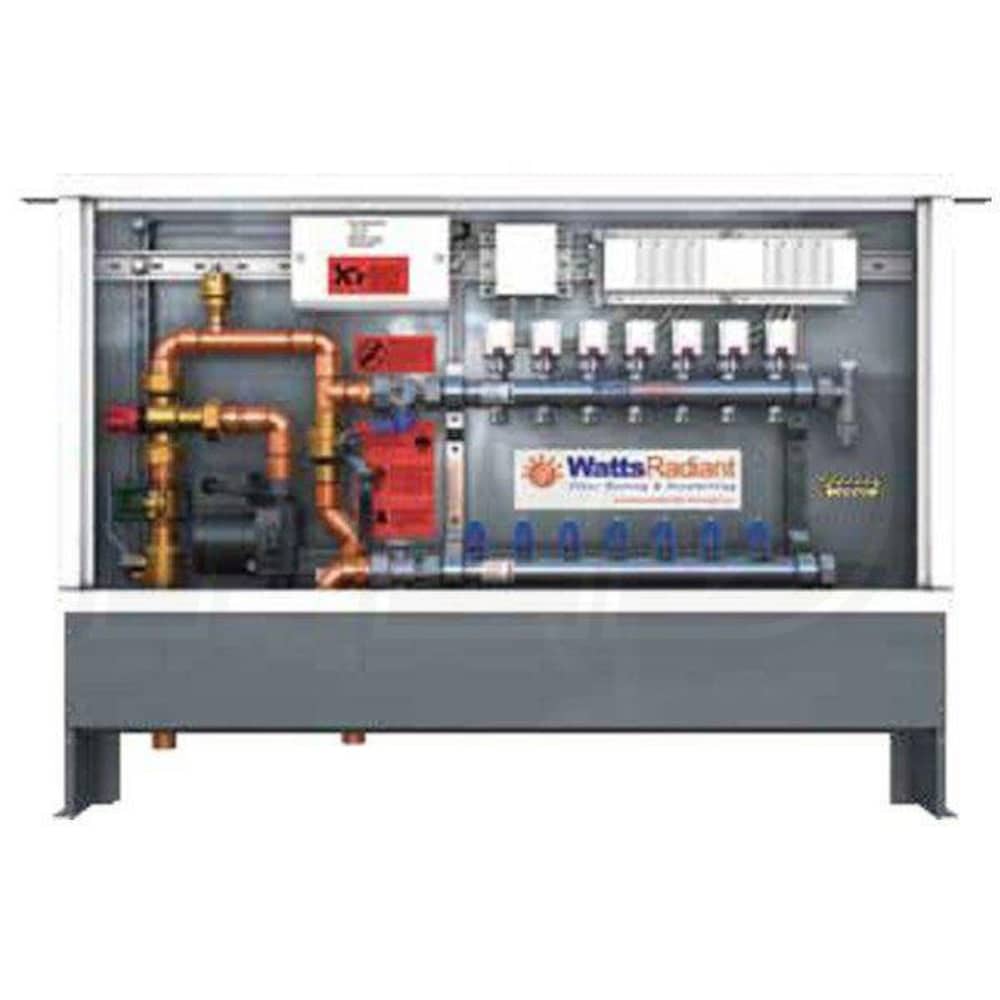

Watts Radiant HydroNex - 4 Circuits - Zone Mix Pump Panel - Watts Radiant 1558 Circulator

Model:

ZM-N-4

Write A Review
$6,269.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order
synchrony card logo
$79 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Watts Radiant HydroNex - 4 Circuits - Zone Mix Pump Panel - Watts Radiant 1558 Circulator
Watts Radiant HydroNex - 4 Circuits - Zone Mix Pump Panel - Watts Radiant 1558 Circulator
Model: ZM-N-4
$6,269.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Zone panels combination of commonly used components and pre-installed wiring make them Watts Radiant's most popular panel. It combines a rigid, durable powdered steel casing with a Watts Radiant M series stainless steel manifold. The manifold is pre-mounted to the casing, taking any guesswork out of installation. The enclosure has a built-in latching door to prevent tampering, and the manifold includes isolation valves, temperature gauges, and a vent and purge assembly. The ZM-N-4 panel also includes a primary circulator and a three-way thermostatic mixing valve to the panel, eliminating the need for a separate primary circulator in the hydronic circuit and giving the panel the ability to adjust temperature on the fly.
  • Long Lasting Strength
  • The panel itself is made out of powder coated steel. This gives the panel the strength and rigidity it needs to give you years of reliable use.
  • Stainless Steel Manifold
  • The included distribution manifold is made from stainless steel for corrosion resistance and can supply up to 2 GPM to each zone. Flow meters are included for each circuit for quick temperature readings.
  • Primary Circulation Pump
  • This panel includes a primary circulation pump powerful enough to circulate water throughout the entire hydronic system. The pump comes pre-wired and is tested before it leaves the factory to assure good performance.
  • Temperature Mixing Capability
  • The zone mix pump panel has a three way mixing valve to the panel enclosure, adding fixed temperature mixing capability to your hydronic circuit. This prevents system water temperature from exceeding a certain threshold.

Specifications

ZM-N-4
specs product image PID-25460
Overview
Product Category
Boiler Accessories
UPC
840213076177
General Information
Type
Zone Mix Pump Panel
Product Line
HydroNex
Product Category
Boiler Accessories
Dimensions
End 1 Connection Type
NPT
End 1 Connection Size
1 1/4 Inches
End 2 Connection Type
NPT
End 2 Connection Size
1 1/4 Inches
Product Height
29 1/2 Inches
Product Width
41 1/2 Inches
Product Depth
4 1/2 Inches
Shipping Weight
70 Pounds
Certifications
Country of Origin
United States
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
