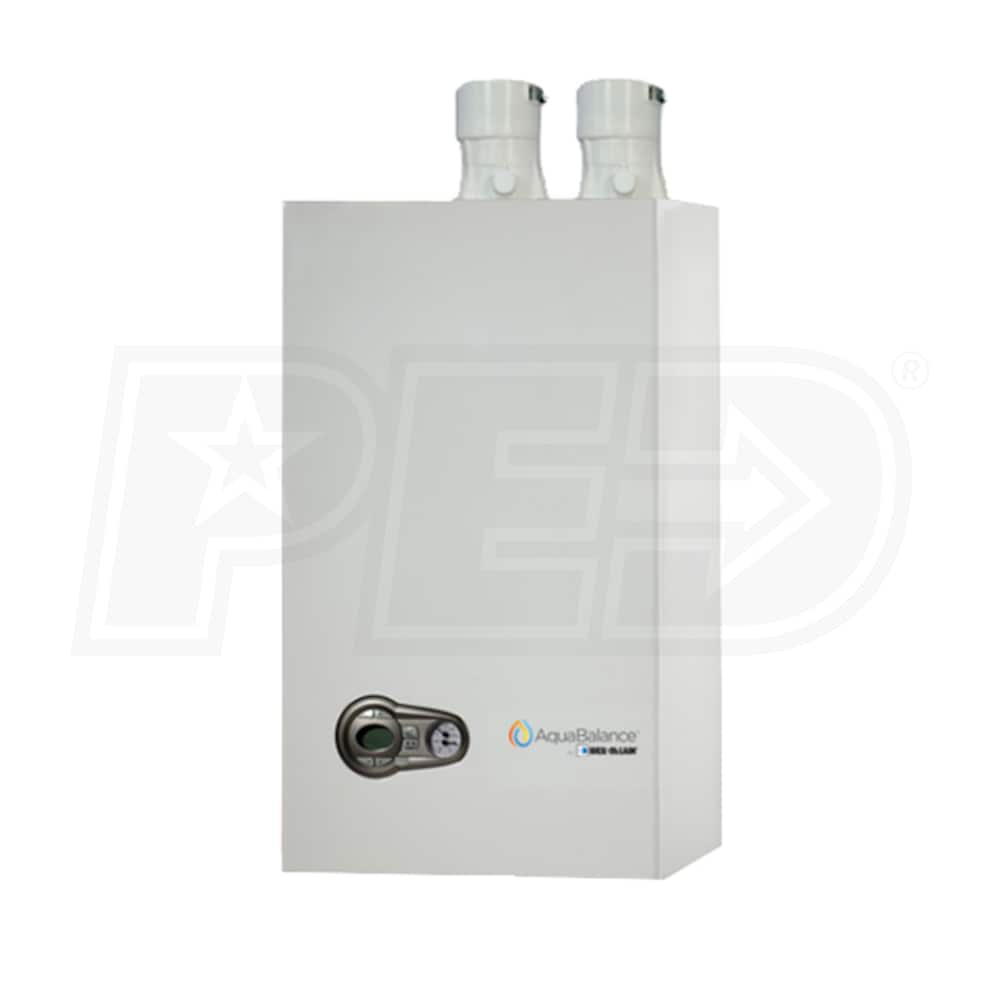

Weil-McLain AquaBalance™ AB-120-C - 112K BTU - 95% AFUE - Combi Gas Boiler - Direct Vent
Model:
383100040
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
23
Model: 573002A
Backflow Preventer
$159.00
Only 5 In-Stock
$125.89
In-Stock
Connection Type
$278.00
Only 3 In-Stock
Model: PPKIT-3HC-78
Maximum Straight Run (Inches)
$374.00
Only 1 In-Stock
Model: 170SV
$138.00
Factory-Direct
$128.00
Factory-Direct
$59.00
In-Stock
$101.00
Factory-Direct
$127.00
In-Stock
Model: 44443WPR
$127.00
In-Stock
$546.00
In-Stock
Model: 640000114
$172.00
Only 2 In-Stock
Model: 383500350
$125.00
In-Stock
Model: 383500397
$74.00
Only 1 In-Stock
Model: 382200430
$127.00
Model: 383500631
$134.00
In-Stock
Model: 640000025
$97.00
Factory-Direct
$159.00
Factory-Direct
Model: 551007A
Connection Type
$273.00
Only 4 In-Stock
Model: PPKIT-2VC-42
Maximum Straight Run (Inches)
$450.00
Model: PPKIT-2HT-18
Maximum Straight Run (Inches)
$287.00
Features
- High Efficiency Heating and Hot Water
- Weil-McLain's rigorous standards of boiler efficiency are clearly shown in the AquaBalance™ Combi line. The AB-120-C combines space heating and domestic hot water production, boasting an impressive 95% AFUE rating without compromising performance.
- Easy Installation
- The AquaBalance™ comes pre-wired with a plug-in ready electrical design. Fewer pipes and connection points streamline the installation process, allowing you to get the system up and running quickly.
- Compact Design
- The AquaBalance's™ compact design is small enough to fit in a closet; a perfect solution for families living in smaller homes or apartments. It also features a heavy gauge insulated jacket to provide extremely quiet operation.
- Outdoor Reset Control
- An outdoor reset sensor is included with every AquaBalance™ boiler. This sensor allows your boiler temperature to be adjusted relative to the temperature outside, eliminating excess energy use and guaranteeing comfort.
- Contractor Friendly
- Along with simple installation, the AquaBalanace™ also features removable sides panels. This makes all of the internal components very accessible, allowing for quick and easy service.
- Product Includes
- (1) Weil-McLain AquaBalance™ AB-120-C Hot Water Boiler
- (1) Outdoor Temperature Sensor
- (1) Mounting Bracket & Hardware
- (1) 3-in-1 Vent Adapter
- (1) 3-Speed Circulator
Over the last 130 years, Weil-McLain has built a reputation of designing some of the most reliable boilers in the marketplace. Their dedication to producing long-lasting heating solutions is seen in every boiler they make. Weil-McLain's AquaBalance™ Combi hot water boiler is a highly efficient and reliable solution to both space heating and domestic hot water needs. Using condensing technology, the AquaBalance™ will reuse heat that escapes from conventional boilers, providing greater efficiency. Simple design along with Honeywell® controls make the AquaBalance™ easy to install and easy to use. With a 95% AFUE, Low Nox certification, and a 10:1 turndown ratio, the AquaBalance™ AB-120-C makes comfort and efficiency more accessible than ever before.
Product Note
Compatible NG to LP Conversion Kit: Williamson-Thermoflo 640-000-025
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
383100040
Overview
Product Category
Boiler
UPC
672619210226
General Information
Product Line
AquaBalance
Product Sub-line
Series 2
Product Category
Boiler
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Condensing
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Yes
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Wall
Minimum Altitude
0 Feet
Maximum Altitude
10000 Feet
Assembly Type
Packaged
Includes Pump
Yes
Gas Conversion Kit
Optional
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
95 %
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
120000 BTU
Minimum Input Capacity
12000 BTU
DOE Heating Capacity
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
112000 BTU
Net I=B=R Capacity
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
97000 BTU
Ultra Low NOx Emissions
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Low NOx Emissions
Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Turndown Ratio
10:1
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Flue Connection Size
3 Inches
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch

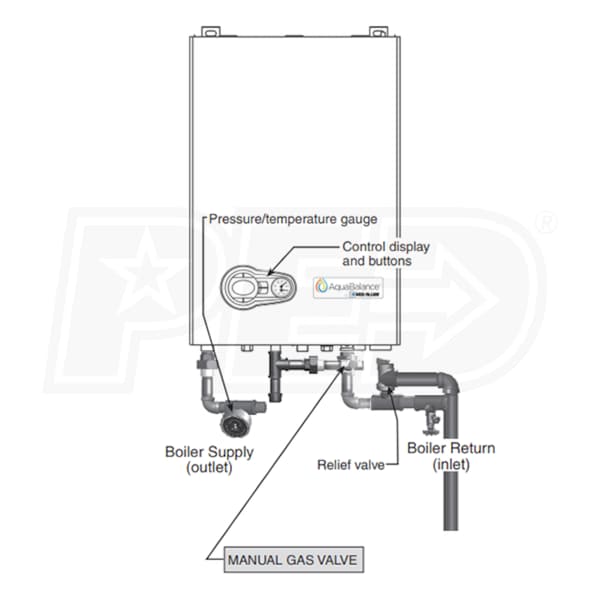

Boiler Supply
3/4 Inch
Boiler Return
3/4 Inch
Product Height
27 9/16 Inches
Product Width
16 13/24 Inches
Product Depth
12 29/48 Inches
Product Weight
80 Pounds
Shipping Weight
90 Pounds
Certifications
CSA Listed
Yes
Energy Star Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
201870442
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
10 Years
Reviews
(17)
Weil-McLain 383100040 Reviews & Ratings
Customer Photos and Videos
Customer Rating
4.82
(17 Ratings)
5
(14)
(14)4(3)
(3)3(0)
(0)2(0)
(0)1(0)
(0)
Half Installed
By Paul B
Oregon
Purchased 08/27/2024 |
Review Posted 10/10/2024
The unit is giving us domestic hot water but not floor heat yet as the old plastic manifold had to be replaced. It heats quickly and a full hot bath is quick!
Paul B Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
4/5
Pros:
I39d Buy It Again, High Quality, Features, Quiet
Cons:
Expensive
Weil Mclain AB120C
By Thomas O
Illinois
Review Posted 11/21/2022
Fair price, promptly delivered.
Owner installed - not recommended unless you are qualified. I have a background in building and engineering, am a qualified residential and commercial inspector, and have installed HVAC and plumbing in the past. Be prepared to spend almost the cost of the unit on required additional system safety & other components. Installation manual can be a bit ambiguous but tech support from Weil Mclain is very good: friendly, knowledgeable, easy to access, and staffed by real people.
Owner installed - not recommended unless you are qualified. I have a background in building and engineering, am a qualified residential and commercial inspector, and have installed HVAC and plumbing in the past. Be prepared to spend almost the cost of the unit on required additional system safety & other components. Installation manual can be a bit ambiguous but tech support from Weil Mclain is very good: friendly, knowledgeable, easy to access, and staffed by real people.
Thomas O Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
3/5
5/5
Really Great Combi Boiler
By Dan M
Davenport, Iowa
Purchased 11/04/2021 |
Review Posted 12/09/2021
Like this combi boiler a lot. Very easy to install and connect using the very expensive manifold but the manifold has it all and made connecting easy. Provides the shutoff valves all copper pipe and brass valves, worth every penny.
Startup was a breeze with the manual and the digital display. Only changed 1 setting that was from plastic flue pipe to metal stainless steel or al29. That was it, fired right off had almost instant hot water, easy to set hot water temperature. Then shut off 50 gallon gas water heater. Instantly saving money!!!
Next started heat and set water temperature to 130 degrees so grandkids don't get burned on old cast iron radiators. Followed manual, did all the quick start-up tests, everything was great. Used about a month now and keeps temperature very steady. I have been charting and recording temperature, only varies a few tenths of a degree. You can set up heating curves in boiler to match the house. Only wish so far would be that is was Alexa connected or had Wi-Fi.
Last boiler was also Weil McClain and it lasted 26 years. I am expecting to see a major improvement on gas bill. Old boiler in its day was 87 percent efficient this is 95 up to 97.5 percent efficient. Also old boiler was 140k BTU, I reduced size on new boiler to 120k BTU and it has a 10 to 1 turn down ratio. Simply said, it will lower the flame to match heating requirements. An outside temperature sensor which came with boiler helps to minimize flame and or gas usage thus creating energy savings. Nicest part is very overshot on temperature. older boiler could not do those things and over shot temperature wasting energy.
Very happy with this unit from Weil-McLain.
Startup was a breeze with the manual and the digital display. Only changed 1 setting that was from plastic flue pipe to metal stainless steel or al29. That was it, fired right off had almost instant hot water, easy to set hot water temperature. Then shut off 50 gallon gas water heater. Instantly saving money!!!
Next started heat and set water temperature to 130 degrees so grandkids don't get burned on old cast iron radiators. Followed manual, did all the quick start-up tests, everything was great. Used about a month now and keeps temperature very steady. I have been charting and recording temperature, only varies a few tenths of a degree. You can set up heating curves in boiler to match the house. Only wish so far would be that is was Alexa connected or had Wi-Fi.
Last boiler was also Weil McClain and it lasted 26 years. I am expecting to see a major improvement on gas bill. Old boiler in its day was 87 percent efficient this is 95 up to 97.5 percent efficient. Also old boiler was 140k BTU, I reduced size on new boiler to 120k BTU and it has a 10 to 1 turn down ratio. Simply said, it will lower the flame to match heating requirements. An outside temperature sensor which came with boiler helps to minimize flame and or gas usage thus creating energy savings. Nicest part is very overshot on temperature. older boiler could not do those things and over shot temperature wasting energy.
Very happy with this unit from Weil-McLain.
Dan M Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Features, Easy To Use, Exceeded Expectations, High Quality
Excellent product with dedicated help.
By Jeff C.
CLEVELAND, Ohio
Purchased 01/14/2021 |
Review Posted 12/03/2021
Not only did I purchase this boiler but a lot of extra accessories from eComfort. I have had other boilers in my home but this combi boiler, combination of boiler and hot water unit, has my house feeling more comfortable and cozier than it ever has before, my house was built in 1913. It is quiet and very efficient. I especially want to thank Chris for all the help that he gave me in solving several of the challenges that I had. This brand was an excellent choice and model ended up being an excellent choice
Jeff C. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Price, Exceeded Expectations, High Quality, Id Buy It Again
Cons:
A lot of work and accessories but worth it
Impressive performance in a small package
By Rodney W.
Baker, Montana
Purchased 07/29/2020 |
Review Posted 10/01/2020
Needed to work with manufacturer for final connection and start up.
Rodney W. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Combi boiler
By Marc C.
New City, New York
Purchased 10/28/2019 |
Review Posted 01/19/2020
Seems good so far. Setup and initial start-up a little tricky
Marc C. Recommends This
Was this review helpful?
Rating Breakdown
4/5
3/5
4/5
4/5
Good purchase.
By Chris Y.
Commerce Township, Michigan
Purchased 10/23/2019 |
Review Posted 12/26/2019
So far so good, using it for my floor heat.
Chris Y. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
5/5
awsome aqua balance, this combi is as good as they come
By Theo H.
Cohoes, New York
Purchased 10/25/2019 |
Review Posted 11/23/2019
none better than this one!!
Theo H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
great boiler
By Nicholas B.
Machias, New York
Purchased 10/31/2019 |
Review Posted 11/22/2019
The boiler was very light weight, well built and easy to hang. I was surprised at how fast the water heated.
Nicholas B. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Great price. Works as expected.
By Richard V.
Marietta, Ohio
Purchased 10/06/2019 |
Review Posted 11/07/2019
So far very pleased with this product.
Richard V. Recommends This
Was this review helpful?
Rating Breakdown
4/5
3/5
3/5
5/5
