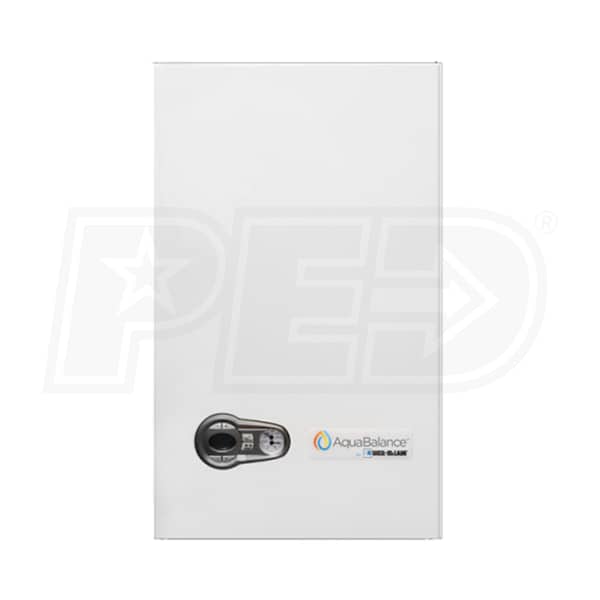

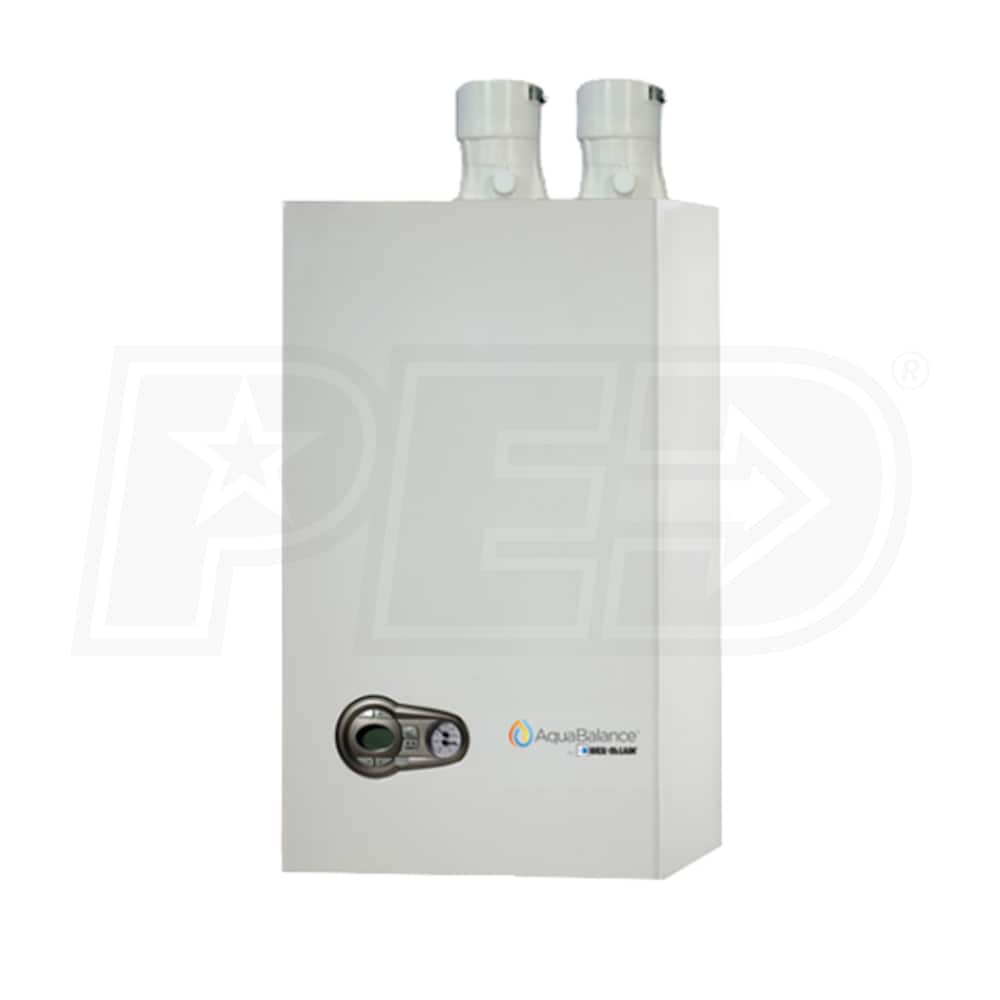

Weil-McLain AquaBalance™ AB-155-C - 144K BTU - 95% AFUE - Combi Gas Boiler - Direct Vent
Model:
383100050
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- High Efficiency Heating and Hot Water
- Weil-McLain's rigorous standards of boiler efficiency are clearly shown in the AquaBalance™ Combi line. The AB-155-C combines space heating and domestic hot water production, boasting an impressive 95% AFUE rating without compromising performance.
- Easy Installation
- The AquaBalance™ comes pre-wired with a plug-in ready electrical design. Fewer pipes and connection points streamline the installation process, allowing you to get the system up and running quickly.
- Compact Design
- The AquaBalance's™ compact design is small enough to fit in a closet; a perfect solution for families living in smaller homes or apartments. It also features a heavy gauge insulated jacket to provide extremely quiet operation.
- Outdoor Reset Control
- An outdoor reset sensor is included with every AquaBalance™ boiler. This sensor allows your boiler temperature to be adjusted relative to the temperature outside, eliminating excess energy use and guaranteeing comfort.
- Contractor Friendly

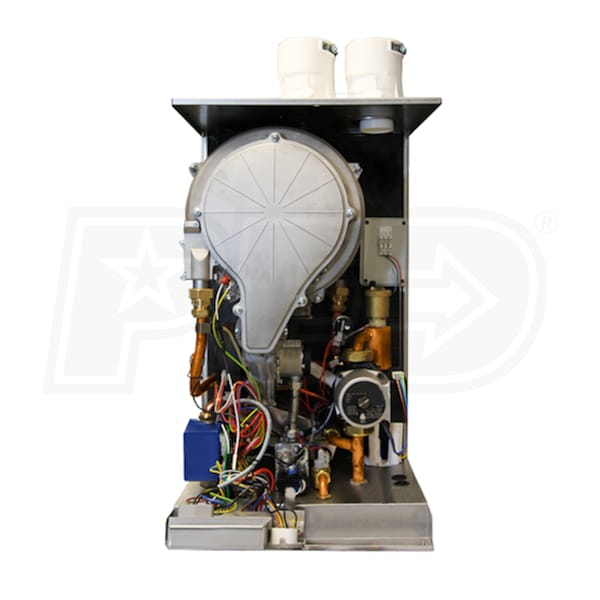

- Along with simple installation, the AquaBalanace™ also features removable sides panels. This makes all of the internal components very accessible, allowing for quick and easy service.
- Product Includes
- (1) Weil-McLain AquaBalance™ AB-155-C Hot Water Boiler
- (1) Outdoor Temperature Sensor
- (1) Mounting Bracket & Hardware
- (1) 3-in-1 Vent Adapter
- (1) 3-Speed Circulator
Over the last 130 years, Weil-McLain has built a reputation of designing some of the most reliable boilers in the marketplace. Their dedication to producing long-lasting heating solutions is seen in every boiler they make. Weil-McLain's AquaBalance™ Combi hot water boiler is a highly efficient and reliable solution to both space heating and domestic hot water needs. Using condensing technology, the AquaBalance™ will reuse heat that escapes from conventional boilers, providing greater efficiency. Simple design along with Honeywell® controls make the AquaBalance™ easy to install and easy to use. With a 95% AFUE, Low Nox certification, and a 10:1 turndown ratio, the AquaBalance™ AB-155-C makes comfort and efficiency more accessible than ever before.
Product Note
Compatible NG to LP Conversion Kit: Weil-McLain 640000133
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
383100050
Overview
Product Category
Boiler
UPC
672619210240
General Information
Product Line
AquaBalance
Product Sub-line
Series 2
Product Category
Boiler
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Condensing
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Yes
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Wall
Minimum Altitude
0 Feet
Maximum Altitude
10000 Feet
Assembly Type
Packaged
Includes Pump
Yes
Gas Conversion Kit
Optional
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
95 %
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
155000 BTU
Minimum Input Capacity
15500 BTU
DOE Heating Capacity
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
144000 BTU
Net I=B=R Capacity
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
125000 BTU
Ultra Low NOx Emissions
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Low NOx Emissions
Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Turndown Ratio
10:1
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Flue Connection Size
3 Inches
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch

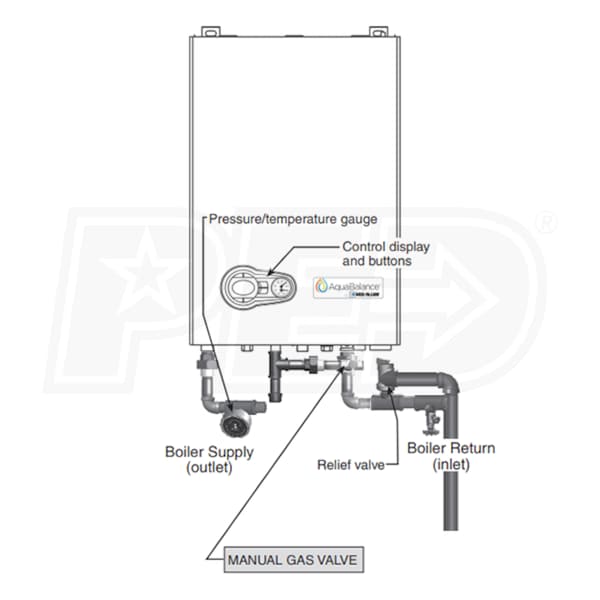

Boiler Supply
1 Inch
Boiler Return
1 Inch
Product Height
27 9/16 Inches
Product Width
16 13/24 Inches
Product Depth
12 29/48 Inches
Product Weight
87 Pounds
Shipping Weight
97 Pounds
Certifications
CSA Listed
Yes
Energy Star Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
201870443
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
10 Years
