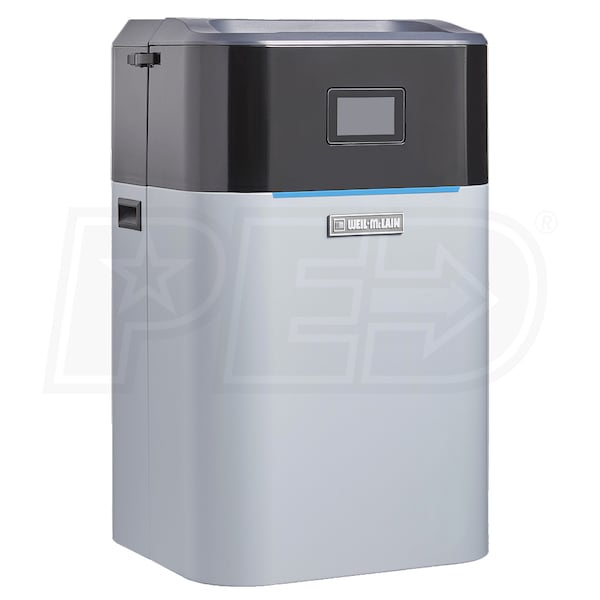

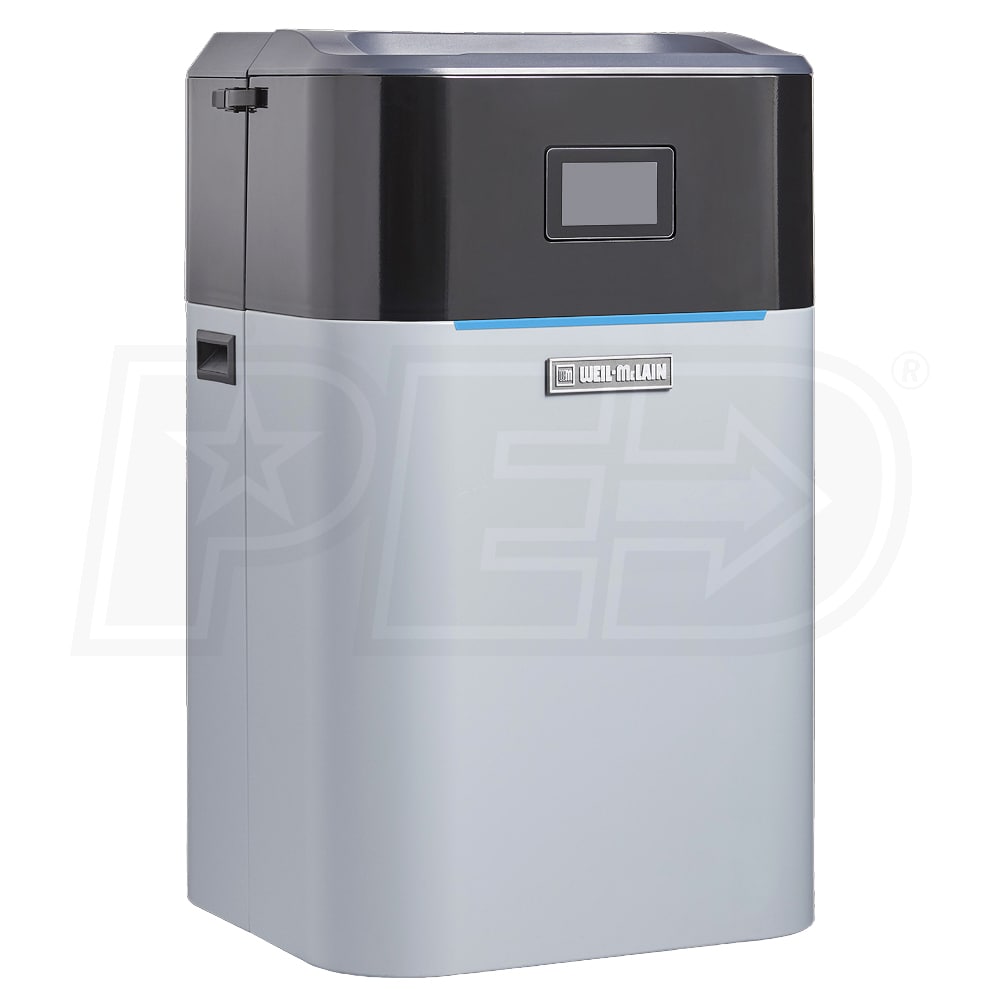

Weil-McLain ECO® Tec 150-C Series 2 - 150K BTU - 95% AFUE - Combi Gas Boiler - Direct Vent
Model:
383900174
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Efficient Heating
- The Weil-McLain ECO® Tec boiler boasts an impressive 95% AFUE rating, allowing you to save on energy costs throughout the heating season.
- Unity 2.0 Multi-zone controller with Setup Wizard
- The large touchscreen control is equipped with 10 preloaded system-type options that you can assign to each zone in your home. The control allows you to prioritize zones and assign different temperatures to specific zones based on system type.
- Spacious Cabinet
- The ECO® Tec's spacious cabinet allows for full access to all critical parts that are strategically positioned.
- Fire Tube Heat Exchanger
- The durable, stainless steel fire tube heat exchanger maximizes heater transfer and features a vertical design that promotes self-rinsing during operation.
- Silent operation
- The ECO® Tec features a sound-dampening air silencer for whisper-quiet operation.
- Built-In ECM Pump
- An included ECM circulator saves electrical energy and installation time - and no worrying about shopping for a standalone pump!
- Sealed Cabinet
- The sealed cabinet preheats incoming air for smooth starting without pulling any potential debris directly into the blower and burner.
The Weil-McLain ECO® Tec heat only boiler provides efficient home heating and is built with homeowners and contractors in mind. The ECO® Tec is designed to be easy to install and service, includes a stainless steel firetube heat exchanger and features a next-generation touchscreen control for simple operation. With an impressive 95% AFUE rating, you'll know you're getting the most out of your gas bill. By using state-of-the-art technology while keeping a simple design, the Weil-McLain ECO® Tec is a powerful, yet reliable solution to your home comfort needs.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
383900174
General Information
Product Line
ECO Tec
Product Category
Boiler
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Condensing
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Yes
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Wall
Minimum Altitude
0 Feet
Maximum Altitude
10000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Gas Conversion Kit
Optional
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
95 %
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
150000 BTU
DOE Heating Capacity
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
139000 BTU
Net I=B=R Capacity
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
121000 BTU
Ultra Low NOx Emissions
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
No
Low NOx Emissions
Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Turndown Ratio
10:1
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
3 Inches
Gas Connection Size
1/2 Inch
Boiler Supply
1 Inch
Boiler Return
1 Inch
Product Height
33 Inches
Product Width
20 Inches
Product Depth
19 Inches
Product Weight
126 Pounds
Certifications
Energy Star Listed
Yes
CSA Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
12 Years
