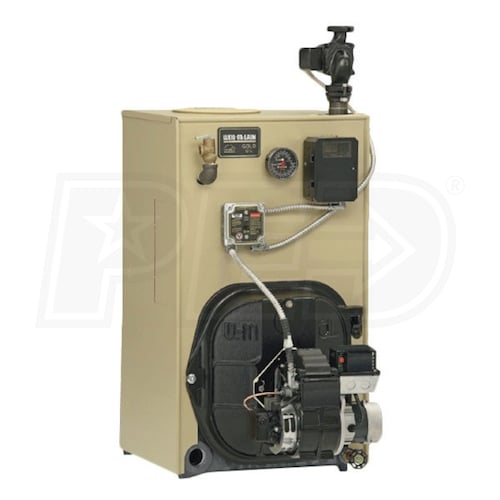

Weil-McLain P-WGO-4 - 145K BTU - 85.0% AFUE - Hot Water Oil Boiler - Chimney Vent - Burner Sold Separately
Model:
386700829
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
16
Model: 573002A
Backflow Preventer
$159.00
In-Stock
$225.00
In-Stock
$1,628.19
In-Stock
Model: 170SV
$138.00
Factory-Direct
$128.00
Factory-Direct
$250.00
Factory-Direct
$227.00
Factory-Direct
$101.00
Factory-Direct
Model: 521107520
$721.43
In-Stock
$594.00
Model: 521100014
$773.48
Model: 386700432
$670.19
Only 5 In-Stock
$159.00
Factory-Direct
Model: SR504-EXP-4
$237.95
Connection Type
$361.00
Model: 551008A
Connection Type
$354.00
Features
- Simple to Service
- Inspecting and maintaining a WGO is incredibly simple. Between the swing-away burner door and the quick-open top panel, the WGO is always accessible. Weil-McLain uses a recessed target wall design to protect the unit from flue brushes during cleaning.
- Captured Seals
- Silicone-coated fiber ropes are used for sealing the boiler sections. These seals expand and contract with the boiler, keeping the unit watertight and preventing contaminants from entering your system.
- Venting Flexibility
- WGO boilers have two vent connections, one on the rear and one on the top. By providing an alternate venting set up, Weil-McLain has ensured that the WGO is suited for a variety of installation conditions.
- Efficiency-Boosting Insulation
- Heat retention is critical to energy efficiency. Heat leakage represents energy use without any comfort gains. An extended, insulated steel jacket prevents heat from escaping the WGO and improves the efficiency.
Over the last 130 years, Weil-McLain has built a reputation of designing some of the most reliable boilers in the marketplace. Their dedication to producing lasting heating solutions is seen in every boiler they make. The WGO is a flexible, durable, oil-fired heating solution for hot water systems. Efficient energy use is a high point of the WGO's design, allowing you to make the most of your energy dollar. Weil-McLain knows the value of longevity, so they used cast-iron for WGO boiler sections. Between the high efficiency, durable construction, and flexibility, the WGO excels both as a replacement boiler and as an addition to new construction.
Product Note
This boiler does not include an oil burner. Please see the Accessories tab for compatible burners if you require one.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
386700829
General Information
Product Line
WGO
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Conventional
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Assembly Type
Packaged
Includes Pump
Yes
Burner Model
Sold Separately
UPC
0672619140103
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
85 %
Input Rate
1.2 GPH
DOE Heating Capacity
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
145000 BTU
Net I=B=R Capacity
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
126000 BTU
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
6 Inches
Supply Connection
1 1/4 Inches
Return Connection
1 1/2 Inches
Product Height
35 5/8 Inches
Product Width
20 1/4 Inches
Product Depth
16 7/8 Inches
Product Weight
645 Pounds
Shipping Height
39 Inches
Shipping Width
23 Inches
Shipping Depth
27 Inches
Shipping Weight
655 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Energy Star Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
2101621
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
20 Years
Reviews
(5)
Weil-McLain 386700829 Reviews & Ratings
Heat In The North
By Jerimiah M
Kodiak, Alaska
Purchased 01/07/2021 |
Review Posted 02/20/2021
In Alaska we need dependable affordable heat. I have 3 different buildings with this hot water oil burner model. Minimum care and efficient heat. Period.
Jerimiah M Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Durable, Reliable, High Quality, Id Buy It Again
Cons:
Heavy
quality product
By Scott K.
New Hampshire
Purchased 09/03/2019 |
Review Posted 09/26/2019
quality product
Scott K. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Everything went as planned
By Charlie L.
Orange, Connecticut
Purchased 03/31/2018 |
Review Posted 04/26/2018
The boiler shipped per the agreed date, I also ordered a burner and a couple zone valves , they arrive first. The Delivery of the boiler was awesome , the trucking company in my case was R&L with lift gate service. I was worried about this because of the weight (450# plus) the driver called a 1/2 hour prior to arriving as I requested and I met him with dolly's and straps ready for a tough move .He had a pallet jack , already had the boiler on a larger skid to fit the jack and moved it in my garage within 5 minutes .
Charlie L. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Runs like a Top, real survivor
By Kenneth B.
Cassville, Pennsylvania
Purchased 03/03/2018 |
Review Posted 03/26/2018
The boiler was dropped off the lift, hit the ground and only had superficial damage. I am more than satisfied with the quality of workmanship and design. No runs, no leaks, no problems.
Kenneth B. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, Exceeded Expectations, High Quality, I'd Buy It Again
Cons:
Heavy
Great Price
By Carmen U.
Orange, Connecticut
Purchased 04/25/2016 |
Review Posted 06/29/2016
Great bargin and a great furnace!
Carmen U. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
How-To Articles
Five Ways to Improve Boiler Efficiency
When purchasing a new boiler for your home, efficiency is the name of the game....
Hydronic System Accessory Guide
How warm does a coat keep you without gloves and a hat? Accessories are sometim...
eComfort How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

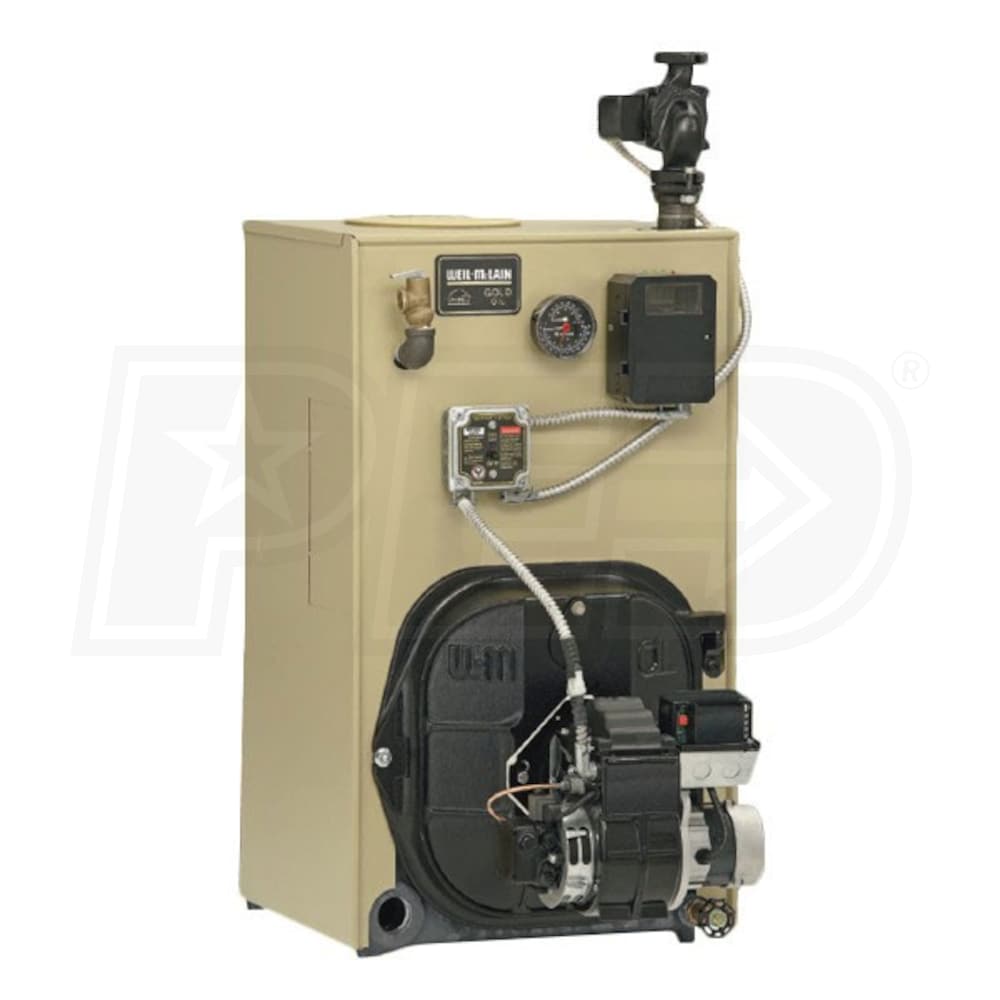

Weil-McLain P-WGO-4 - 145K BTU - 85.0% AFUE - Hot Water Oil Boiler - Chimney Vent - Burner Sold Separately
