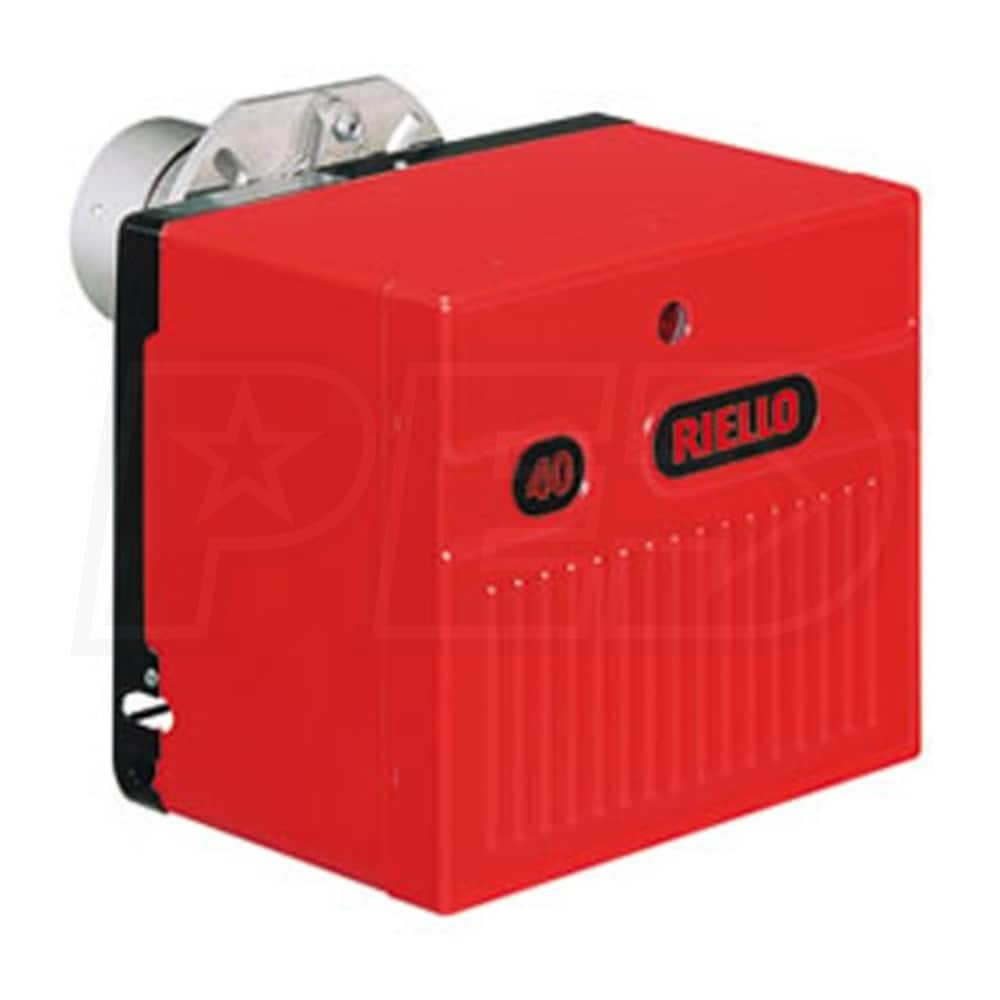

Weil-McLain Oil Burner for GO-2, GO-3, GO-4, and GO-5 - Riello F5 - 1.65 GPH - Chimney Vent
Model:
521107520
+
Share This Product
Features
- Product Compatible With
- Weil-McLain WGO-2 Hot Water Boilers
- Weil-McLain WGO-3 Hot Water Boilers
- Weil-McLain WGO-4 Hot Water Boilers
- Weil-McLain WGO-5 Hot Water Boilers
- Weil-McLain WTGO-3 Hot Water Combi Boilers
- Weil-McLain WTGO-4 Hot Water Combi Boilers
- Weil-McLain WTGO-5 Hot Water Combi Boilers
- Weil-McLain SGO-3 Steam Boilers
- Weil-McLain SGO-4 Steam Boilers
- Weil-McLain SGO-5 Steam Boilers
Riello provides burners for many of the world's top boiler companies. This F5 burner is their contribution to Weil-McLain's GO lines.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
521107520

Overview
Product Category
Boiler
UPC
0672619146709
General Information
Product Line
GO
Product Category
Boiler
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Performance
Input Rate
1.65 GPH
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
9 2/12 Inches
Product Width
10 11/16 Inches
Product Depth
15 5/12 Inches
Product Weight
30 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Reviews
(1)
Weil-McLain 521107520 Reviews & Ratings

Purchased Riello Oil Burner
By John P.
Waterville Valley, New Hampshire
Purchased 11/26/2018 |
Review Posted 01/04/2019
The order process was simple and the burner was shipped to my house in about one week It came with all of the required parts and was pre-wired for installation into a Weil-McLain Boiler.
Installation took about 30 minutes and it runs smoothly and fairly quiet.
It has a good reputation for reliability, but it is too soon to confirm the reliability and fuel consumption.
Installation took about 30 minutes and it runs smoothly and fairly quiet.
It has a good reputation for reliability, but it is too soon to confirm the reliability and fuel consumption.
John P. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
