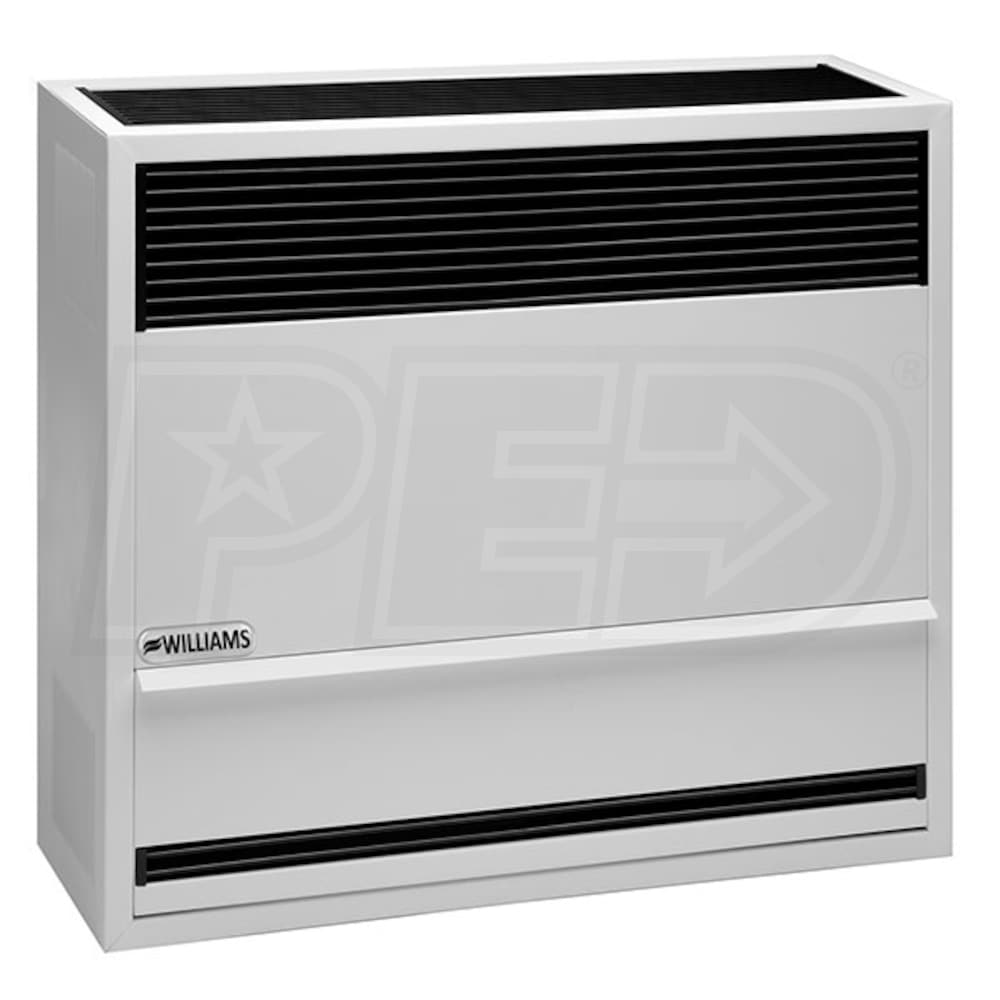

Williams Direct-Vent - 22K BTU - Gas Direct-Vent Wall Furnace - NG - 67% AFUE - Up To 2,000 Ft Altitude
Model:
2203822
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
10
$16.00
In-Stock
Model: 9301
$124.00
Backordered
Model: 2302
$239.00
In-Stock
Model: 9308
$149.00
In-Stock
Model: 4318
$110.00
$110.00
Only 2 In-Stock
Model: P322016
$35.00
In-Stock
$110.00
Factory-Direct
Model: 9307
$110.00
Only 1 In-Stock
Model: 9302
$154.00
Factory-Direct
Features
- Space-Saving Size
- The direct vent model is a low-profile furnace that can fit in just about any space. Having a unique wall mount design, this furnace requires no floor space.
- No Electricity Needed
- During power outages, you have a lot to worry about, but your furnace won't be one. The Direct-Vent furnace requires no electricity for operation.
- Sealed Combustion
- Rather than using indoor air to fuel combustion, the Williams direct vent pulls intake air directly from the outdoors. This means the heat your furnace generates isn't fed back into the system, maximizing efficiency.
- Easy Installation
- The Williams Direct Vent furnace mounts directly on the outside-facing wall. Venting is accomplished through a single 9" opening to the outdoors and vent materials that will accommodate most installations are included.
- Product Includes
- Williams Direct-Vent Furnace
- All Vent Materials Needed for a 9" Thick Wall
Williams' Direct-Vent Wall Furnace makes heating any home easy. The Direct-Vent model is attractive and economical with a slim design taking up minimal space. Safety is no worry with this furnace, having a matchless pilot igniter and sealed combustion chamber requiring no inside air. The soft white, scratch-resistant coating can blend in nicely with any homes decor.
Product Note
A thermostat does not come included with this unit. The Williams P322016 thermostat is compatible and can be found under the "Accessories" tab. Alternatively, any standard millivolt thermostat can be used.
California residents see
Warning: This product can expose you to chemicals including Epichlorohydrin which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
2203822
Overview
Product Category
Furnace
UPC
0093909299088
General Information
Type
Gas Wall Furnace
Product Line
Direct-Vent
Product Category
Furnace
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Wall
Gas Conversion Kit
Available
Color
White
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
67 %
Heating BTU
22000
High Fire Input
22000 BTU
High Fire Output
16462 BTU
Dimensions
Gas Connection Size
1/2 Inch
Product Height
28 Inches
Product Width
32 1/8 Inches
Product Depth
10 1/4 Inches
Product Weight
88 Pounds
Shipping Weight
98 Pounds
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Limited 10 Years
Reviews
(11)
Williams 2203822 Reviews & Ratings
Customer Rating
4.55
(11 Ratings)
5
(7)
(7)4(3)
(3)3(1)
(1)2(0)
(0)1(0)
(0)
Heater Replacement
By Adrian M
Fremont, California
Purchased 03/05/2022 |
Review Posted 04/24/2022
Replacement was exactly like my old one and fit perfectly.
Adrian M Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Pros:
Delivery person was exceptional.
Cons:
No cons so far. To soon to tell.
We Love Our Heater!
By Eileen M
Taunton, Massachusetts
Purchased 10/28/2020 |
Review Posted 12/14/2020
I accidently ordered a natural gas heater so we had to order the conversion kit for propane, it was installed and our heater works amazing! It's so quiet and efficient!
Be sure you are ordering the correct product, I didn't even notice the drop down box when I placed my order. I also purchased the thermostat and it works great.
We are using this as a back up heater in our "camp" for when the woodstove goes out at night or to keep the place at 50 degrees when we are away and don't want the water to freeze!
Be sure you are ordering the correct product, I didn't even notice the drop down box when I placed my order. I also purchased the thermostat and it works great.
We are using this as a back up heater in our "camp" for when the woodstove goes out at night or to keep the place at 50 degrees when we are away and don't want the water to freeze!
Eileen M Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, Quiet, High Quality
Cons:
Drop down not clear when ordering
Better than I thought it would be
By John W.
Lake Isabella, California
Purchased 01/13/2020 |
Review Posted 03/18/2020
The product exceeded my hopes in terms of performance, appearance, and build quality
John W. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
a very good product !
By Lois S.
Big Rapids, Michigan
Purchased 12/11/2019 |
Review Posted 01/20/2020
It does a great job heating. We got good advice from people who service Williams products. Everything went good installing.
Lois S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Exactly as described.
By Monte M.
Midland, Michigan
Purchased 12/11/2019 |
Review Posted 01/03/2020
Good product. Very affordable.
Monte M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Williams Direct vent
By Michael S.
Elk Grove Village, Illinois
Purchased 10/23/2019 |
Review Posted 11/14/2019
The heater was easy to install and performs as described.
Michael S. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Simple to install . So far works good. Just tested it.
By Thomas M.
Waukesha, Wisconsin
Purchased 07/02/2019 |
Review Posted 08/06/2019
Product looks nice.Takes up limited space.
Thomas M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
4/5
4/5
4/5
Love my wall furnace!
By Jill Z.
Saline, Michigan
Purchased 09/26/2018 |
Review Posted 02/13/2019
Easy install and generates nice heat! Love it!
Jill Z. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Features, Quiet, High Quality, I'd Buy It Again
Shipping issue
By Jeffrey J.
DUNLAP, California
Purchased 01/27/2017 |
Review Posted 02/20/2017
Have not used yet due to final construction needed but the shipping company put a forklift dent in the sheet metal. I did not return because it is cosmetic and this unit was needed for a disabled person. Please let your freight company know of my damage.
Jeffrey J. Recommends This
Was this review helpful?
Rating Breakdown
4/5
1/5
1/5
4/5
Excellent product
By Sheryal N.
Avon Park, Florida
Purchased 11/10/2016 |
Review Posted 12/05/2016
Have had it up and running for about 4 days now, and have had no complaints. Using this for the main source of heat in a single wide trailer in the state of Maine. Got this for my sister and she called me last nite, temp was in the 20's outside and inside was 75 degrees, warmest she has ever had it in the cold weather since she has lived there for 30 years. Even one of her cats is not sleeping with them now, she is sleeping in the cat toy next to the furnace.
Sheryal N. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
5/5
Product Q&A
(1)
Product Questions
Answered by Ken, the eComfort Product Expert
Can the exhaust vent use a 90 degree elbow?
Ron H.
from Nevada
July 26, 2016
