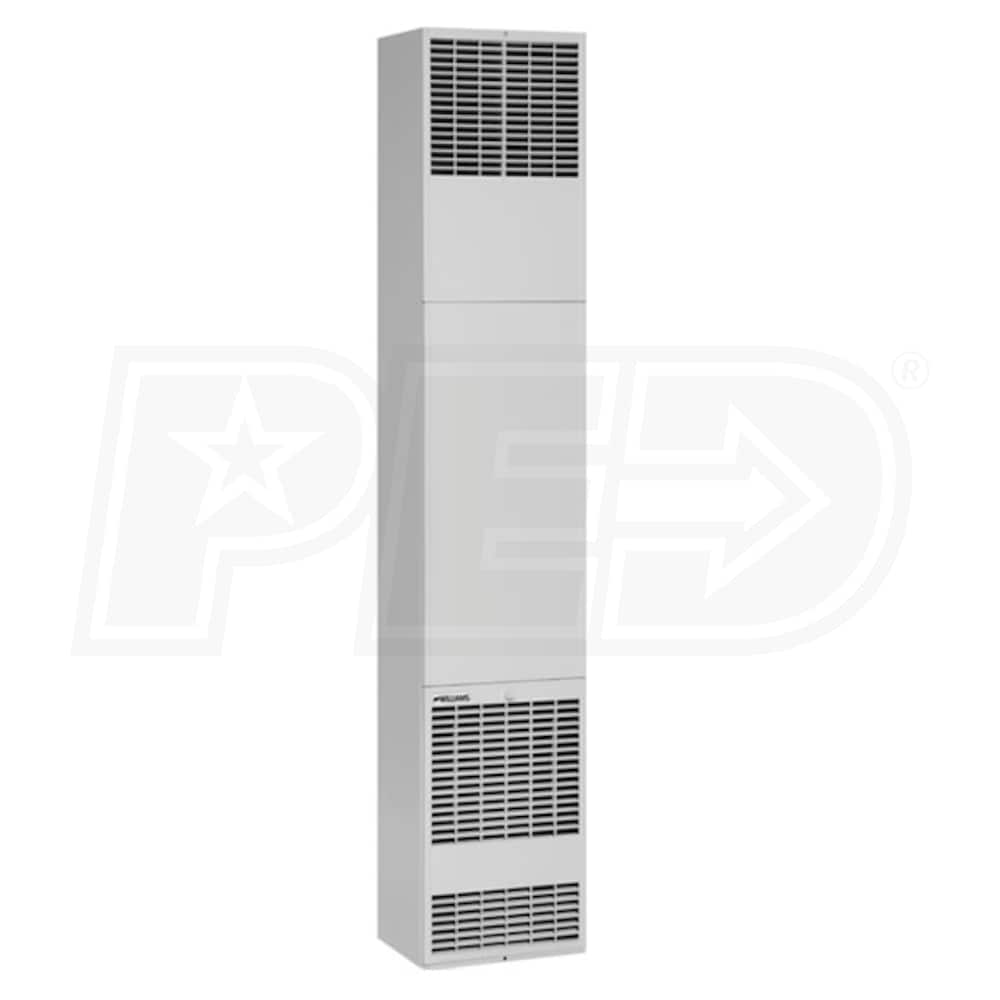

Williams Forsaire - 40k BTU - Gas Direct-Vent Wall Furnace - 75.4% AFUE - Standing Pilot
Model:
4007732
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
13
$16.00
In-Stock
Model: 6702
$109.00
Factory-Direct
Model: 6701
$170.00
Factory-Direct
Model: 9806
$110.00
Model: 9308
$149.00
In-Stock
$109.00
Factory-Direct
$109.00
Model: 4318
$110.00
Model: 9940
$110.00
Factory-Direct
$110.00
$110.00
Factory-Direct
Model: P322016
$35.00
In-Stock
$110.00
In-Stock
Features
- Sealed Combustion
- Rather than using indoor air to fuel combustion, the Williams direct vent pulls intake air directly from the outdoors. This means the heat your furnace generates isn't fed back into the system, maximizing efficiency.
- Counterflow Blower System
- The Forsaire furnace has a counterflow blower system that takes air from the ceiling and blows the warm air at the floor. This allows for the heat to be evenly distributed throughout the room.
- Safe Pilot Ignition
- With matchless pilot ignition, the guess work is taken out of lighting the furnace. By sealing the pilot and igniter away from dirt and debris, the electronic igniter lights the furnace safely and reliably.
- Vent Limit Safety Switch
- The vent limit safety switch is equipped on all Forsaire furnaces. This turns off the unit in case the vent is blocked, protecting your family from carbon monoxide and fires.
- Product Includes
- All Vent Materials Needed for a 9" Thick Wall
Safety is no worry with this furnace, having a matchless pilot igniter and sealed combustion chamber requiring no inside air. Whether recessed into the wall or surface mounted, the soft-white powder coated finish provides a discrete durable finish that blends into any home's decor.
Product Note
A thermostat does not come included with this unit and is required. The Williams P322016 thermostat is compatible and can be found under the "Accessories" tab. Alternatively, any standard millivolt thermostat can be used.
California residents see
Warning: This product can expose you to chemicals including Epichlorohydrin which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
4007732
Overview
Product Category
Furnace
UPC
093909298906
General Information
Type
Gas Wall Furnace
Product Line
Forsaire
Product Category
Furnace
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Blower Motor Type
Single Speed
Mount Type
Wall
Gas Conversion Kit
Available
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
75.4 %
Heating BTU
40000
High Fire Input
40000 BTU
High Fire Output
32000 BTU
Maximum Air Flow
325 CFM
Electrical Data
Minimum Circuit Ampacity
2 Amps
Dimensions
Gas Connection Size
1/2 Inch
Product Height
77 3/8 Inches
Product Width
14 1/8 Inches
Product Depth
11 3/4 Inches
Product Weight
116 Pounds
Shipping Weight
126 Pounds
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
10 Years
Reviews
(19)
Williams 4007732 Reviews & Ratings
Customer Photos and Videos
Customer Rating
4.79
(19 Ratings)
87% recommend this product
5
(15)
(15)4(4)
(4)3(0)
(0)2(0)
(0)1(0)
(0)
Heat
By Kevin M
New Jersey
Purchased 01/21/2025 |
Review Posted 02/17/2025
Love the unit not so much for the instruction manual
Kevin M Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I39d Buy It Again
Cons:
Bad Instructions
I Now Have 3 Of These Forsaire Heaters!
By Richard F
New Mexico
Purchased 01/08/2025 |
Review Posted 01/30/2025
This is the third Forsaire that i have put in rental properties, tho the one 40K BTU unit i just installed a few days ago might be a flip house, not a rental. Don't know yet. The packaging and shipping were great, the hard cardboard protected the furnace perfectly. since i live in an out-of-the-way area, there was a little confusion about exactly who to call to coordinate final delivery, and some miscues re: timing of delivery, but it was no big deal and luckily i was at the house early and delivery arrived early. Installation was straight forward... i wasn't sure of the proper setting for heat anticipator and i could not find that in the manual. So i just looked at one of my other Forsaire's. a 40K BTU unit i installed 5 or 6 years ago. I also installed a 60K BTU version of the same machine around 13 months ago, these seem to be real workhorses! Never had any problems. However, the one i installed a couple days ago, 40K BTU seems to have a problem with the push-button igniter. it just doesn't do anything other than click. But i was able to light the unit the old fashioned way and so far everything seems to be humming along. I don't consider the igniter problem to be serious enough to report it, especially since i don't know if i might have messed it up when i was fiddling with the unit by putting in the high altitude aperture. I don't have much recent experience with other brands when it comes to direct vent heating but i am confident to recommend the Williams direct vent units to anyone looking to get something like this. They seem to be very reliable.
Richard F Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Pros:
Easy To Use, Price, I39d Buy It Again
Cons:
None
Williams Furnace
By Jan T
Illinois
Purchased 03/21/2024 |
Review Posted 07/03/2024
Excellent product. I appreciated the inclusion of the thru the-wall vent assembly with the unit, making for a reasonable install.
Jan T Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I39d Buy It Again
I'm Buying Again
By James P
Levittown, Pennsylvania
Purchased 02/11/2022 |
Review Posted 04/27/2022
I would give it more stars, but you only go up to 5.
James P Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Id Buy It Again, Reliable, Fast
More Heat Than I Needed
By Nicholas P
SAN GABRIEL, California
Purchased 12/09/2021 |
Review Posted 01/12/2022
Produces and distributes great amount of heat aided by its blower fan. Probably could have purchased smaller unit had I not underestimated how well it circulates the heat. It's provides heat to the 1015sqft. 1st floor of my two story house in a heart beat. My only issue so far is with the installation booklet not being product specific. Can be confusing if you don't pay strict attention to your specific unit install.
Nicholas P Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
4/5
4/5
Pros:
Easy To Use, Exceeded Expectations, High Quality
Cons:
Bad Instructions
Awesome Heater!! My Whole Downstairs Is Happy!!
By Chad S
Atascadero, California
Purchased 10/11/2020 |
Review Posted 12/18/2020
Don’t use the millivolt thermostat. The reed switch couldn’t handle the current. Excellent heater!
Chad S Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, Exceeded Expectations, Id Buy It Again
the unit i replaced is the new ones twin was about 40 years old
By Al K.
Tinley Park, Illinois
Purchased 04/15/2020 |
Review Posted 05/07/2020
my old uunit was about 40 years old and i only had to replace about 3 thermocouples in that time. only reason i replaced it was thae gas vavle was suspicious..
Al K. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, Features, Reliable, Id Buy It Again
Three way diffuser Excellent Accessory
By Orrie S.
Flint, Michigan
Purchased 03/19/2020 |
Review Posted 04/10/2020
This unit is made of quality metal. Easily snaps in place. It sends heat to the right and left and in the front. I received it very fast the fastest that I have received any ordered item. The price was competitive. And it was in stock most places had to order it before I could get it.
Orrie S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
very good heater
By James E.
Rio Rancho, New Mexico
Purchased 02/05/2020 |
Review Posted 04/09/2020
had one for almost 30 yrs
its a very good heater and effecient also warm air comes in at top and blows out bottom so dont have to warm cold air
only thing on this new one it makes a viberation noise when it goes on the high speed
its a very good heater and effecient also warm air comes in at top and blows out bottom so dont have to warm cold air
only thing on this new one it makes a viberation noise when it goes on the high speed
James E. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
a dang good heater...
By Dan H.
bailey, Colorado
Purchased 01/09/2020 |
Review Posted 01/30/2020
am to Hope this Williams Wall Heater is to last as long as my old Williams of over 28 years!
Dan H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
