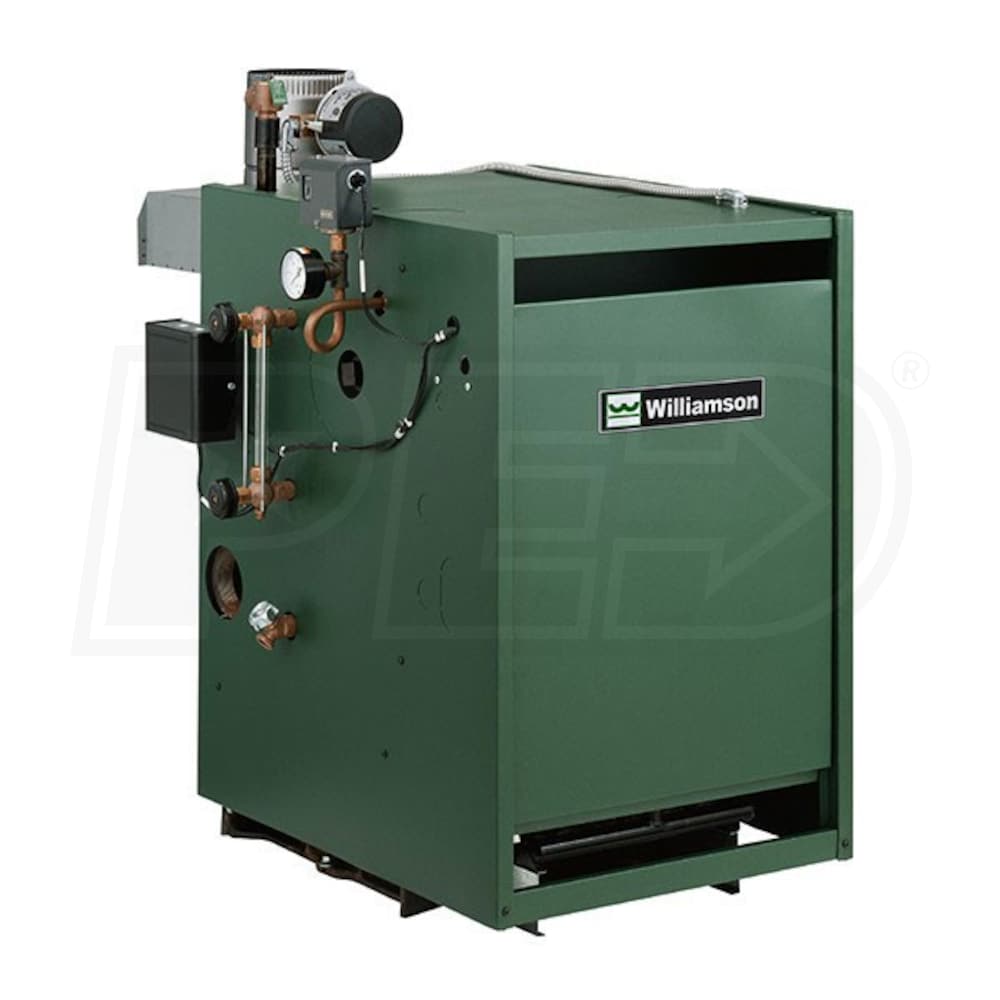

Williamson-Thermoflo GSA-100 - 62K BTU - 82.9% AFUE - Steam Gas Boiler - Chimney Vent
Model:
GSA-100-N-IP
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Factory Tested
- Every single GSA boiler is factory tested, ensuring reliability and properly functioning equipment.
- Factory Packaged
- GSA boilers are factory packaged meaning that the boiler comes to you with cast iron sections and the boiler assembled and ready for installation.
- Easy Service
- Service is simple with a one-piece access door and easily accessible controls.
- 10 Year Warranty
- A limited 10 year warranty on boiler parts means that you can rest assured that your investment is covered, should there be a problem.
"Uncover warm possibilities" with Williamson-Thermoflo's GSA gas fired steam boiler. The efficient GSA-100-N-IP pumps out 100,000 BTUs with an AFUE (annual fuel utilization efficiency) rating of 82.9 percent. The GSA is also designed with a generous heating surface and an automatic vent damper to maintain that efficiency. This factory-packaged boiler is equipped with many features, such as a spark (intermittent) pilot system, cast-iron sections, and an insulated heavy-gauge steel jacket. The GSA is also easily serviced with all controls in reach and a one-piece access door. Since it is factory tested and comes with a limited 10 year warranty on boiler sections, you can be absolutely sure that your investment is reliable and built to last.
Specifications
GSA-100-N-IP
General Information
Product Line
GSA
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Steam
Heat Exchanger Material
Cast Iron
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Conventional
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Minimum Altitude
0 Feet
Maximum Altitude
2000 Feet
Includes Pump
No
Assembly Type
Packaged
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
82 %
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
100000 BTU
DOE Heating Capacity
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
83000 BTU
Net I=B=R Capacity
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
62000 BTU
Ultra Low NOx Emissions
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
No
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
5 Inches
Gas Connection Size
1/2 Inch
Supply Connection
3 Inches
Return Connection
2 1/2 Inches
Product Height
38 3/8 Inches
Product Width
28 3/4 Inches
Product Depth
39 3/8 Inches
Product Weight
430 Pounds
Shipping Weight
440 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
10 Years
