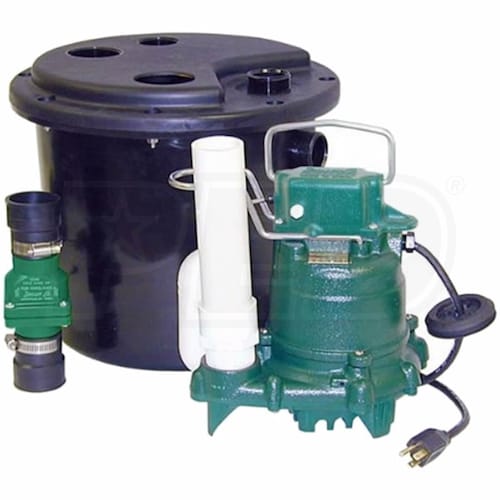

Zoeller 105-0001 - 1/3 HP (M53) Remote Sink/Drain Pump System w/ Vertical Float Switch

Model:

105-0001

Write A Review
$319.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Dec 23rd
Shipping to60601

Zoeller 105-0001 - 1/3 HP (M53) Remote Sink/Drain Pump System w/ Vertical Float Switch
Zoeller 105-0001 - 1/3 HP (M53) Remote Sink/Drain Pump System w/ Vertical Float Switch
Model: 105-0001
$319.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Automatic Remote Drain Pump & Laundry Tray System
  • Pre-packaged for easy installation
  • Cast Iron Switch Case, Motor & Pump Housing
  • Designed for rapid heat dissipation and extended life
  • Engineered Thermoplastic Base w/ Built-In Strainer
  • Corrosion resistant design, easily passes laundry lint
  • 1/3 HP Thermally Protected Motor
  • Oil-filled and hermetically sealed to prevent overheating
  • Non-Clogging Vortex Impeller
  • Capable of passing 1/2" diameter solids
  • Vertical Float Switch
  • Solid and buoyant polypropylene design

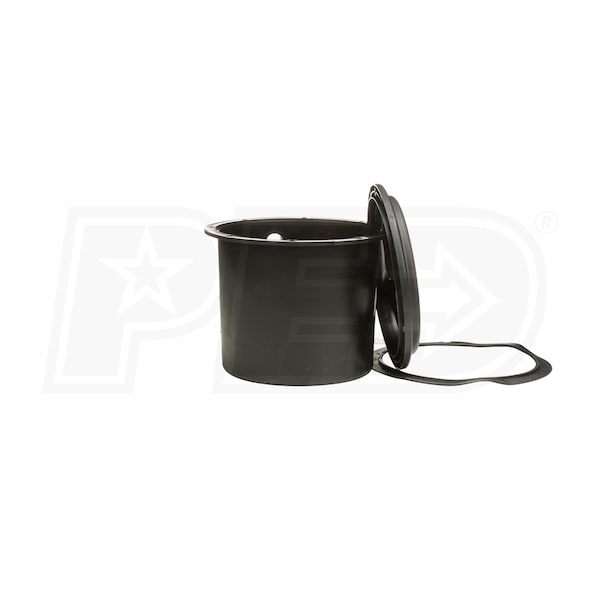

  • 14.5"W x 12.5"H Polyethylene Basin
  • High capacity, corrosion resistant w/ Gas Tight Cover
  • Threaded Connection For Easy Installation
  • 1-1/2" Compression Intake, 2" NPT Vent & 1-1/2" NPT Discharge
  • 1-1/2" Slip-On Check Valve
  • Engineered for longer life & quiet operation
  • 9-Foot Power Cord For Easy Connection
  • UL Listed
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

105-0001
specs product image PID-11377
General Information
Product Category
Sump Pump
Base
Min Sump Basin Size
15 Inch
Motor
Voltage
120 Volt
Running Amps
9.3
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Starting Amps
25.9
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Vertical Float

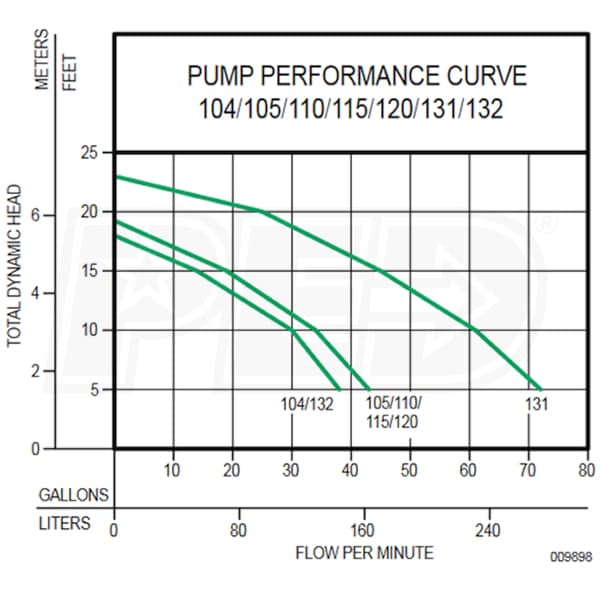

GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Check Valve Included
Yes
Float On
7.25 Inches
Float Off
3 Inches
Manual Override
No
Engine
Horsepower
.33 HP
Overview
Product Category
Sump Pump
Weight
30 Pounds
Consumer Warranty
3 Years
Product Width
14.5 Inches
Product Height
12.5 Inches
UPC
053514012953

Reviews

(114)
Zoeller 105-0001 Reviews & Ratings

Product Q&A

(7)
Expert avatar photo
Product Questions Answered by Ken, the eComfort Product Expert
What is the capacity and dimensions of the sump basin?
Pat
from Illinois
September 19, 2023
Jim, I need to replace my Flotec laundry tray pump system which is getting ready to celebrate its 20th birthday. I really want to buy the Zoeller 105-0001. It looks like a great product. Could I get a copy of the installation manual with the dimensions for the tank and the input and output locations? Plus, I don't see a float switch. What triggers the pump to turn on and off? Thank You, Ray
Ray Brennan
from Pennsylvania
July 05, 2016
Zoeller 105-0001 - 1/3 HP (M53) Remote Sink/Drain Pump System w/ Vertical Float Switch I see this is pictured with a (tank) What all comes with this ? for $214.00
John S
from Texas
June 08, 2015
How many vertical feet and horizontal feet can this pump?
Katherine
from Virginia
January 02, 2015
Jim, Can the discharge on these be reduced to fit a tight install. Also Can it use different style vent
Lloyd
from Pennsylvania
July 09, 2014
Dear Jim- I want to make sure this is what I'm looking for because the drain basin seems small. I would like to drain a washing machine into a basin and have that pumped into a drain line, are these the correct products, are these basins large enough to handle the discharge from a washing machine? Thank You
Robert P
from Pennsylvania
November 18, 2013
Installing an underground sump pump to drain water coming under the house. Was thinking about ordering the following kit, but I am not sure if the basin is the correct one for a sump pump or if we should switch it to something bigger. Zoeller 1050001 13 HP M53 Remote SinkDrain Pump System w Vertical Float Switch Thank you, Nestor Ho
Nestor H
from Texas
October 21, 2013
