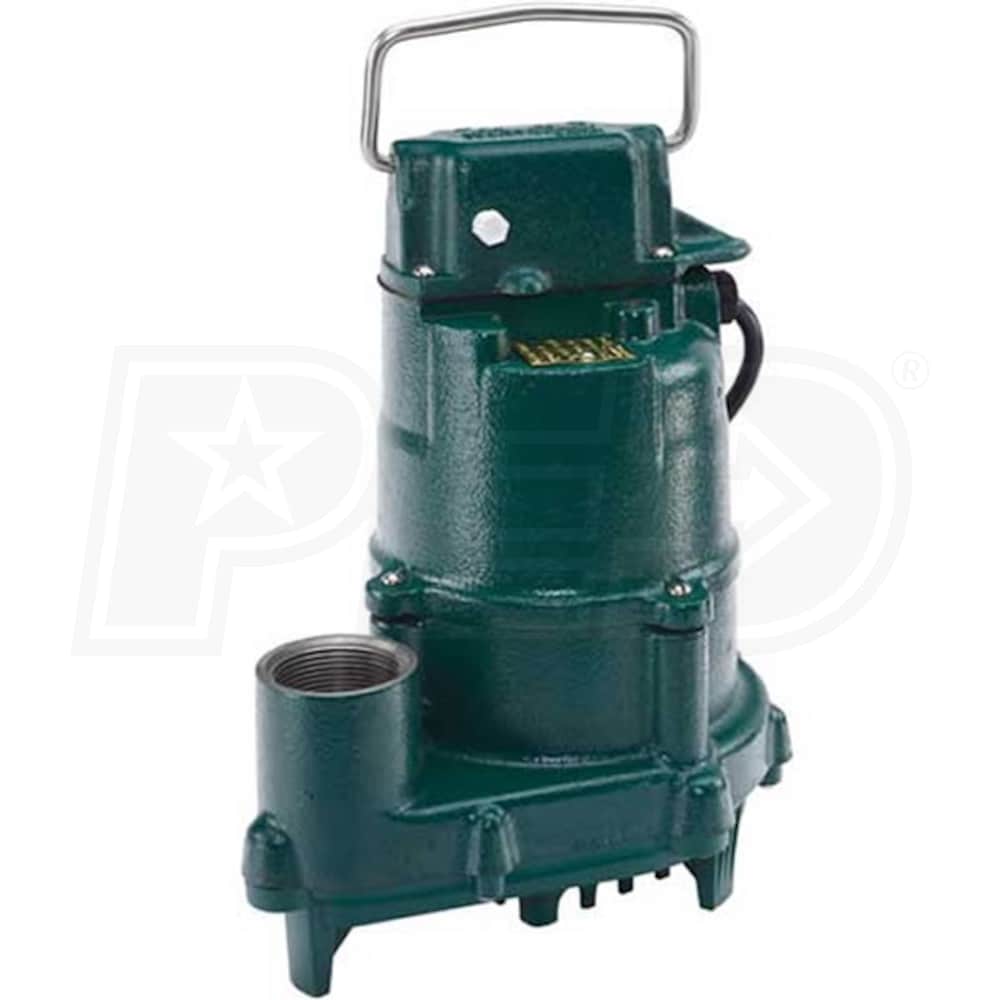

Zoeller N152 - 4/10 HP Cast Iron High Head Effluent Pump (Non-Automatic)
Model:
152-0002
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- ***NON-AUTOMATIC - Requires Float Switch or Control Panel***
- Zoeller N152 High Head Dose-Mate Submersible Effluent Pump
- Provides up to 38' Max Head
- For septic tank, low pressure pipe (LPP) & enhanced flow step systems
- Durable Cast Iron Construction (Pump Housing & Base)
- Corrosion-resistant powder coated epoxy finish
- 4/10 HP Thermally Protected Motor (3450 RPM)
- Oil-filled & hermetically sealed to prevent overheating w/ auto-reset
- Non-Clogging Engineered Thermoplastic Vortex Impeller
- Passes 3/4" spherical solids - No screens to clog
- Carbon/Ceramic Shaft Seal & Upper/Lower Sleeve Bearings
- Assures maximum protection for extended pump life
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel screws, guard, handle, arm and seal assembly
- 1-1/2" NPT Discharge
- Allows for easy connection to your discharge line
- Also includes 1-1/2" x 2" PVC adapter fitting
- 20' Power Cord
- UL Listed 3-wire neoprene cord and plug
- Industry Leading Quality Control
- Entire unit is pressure tested after assembly
- 3-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
152-0002
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
8.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Nominal Voltage
120 Volt
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
No Switch

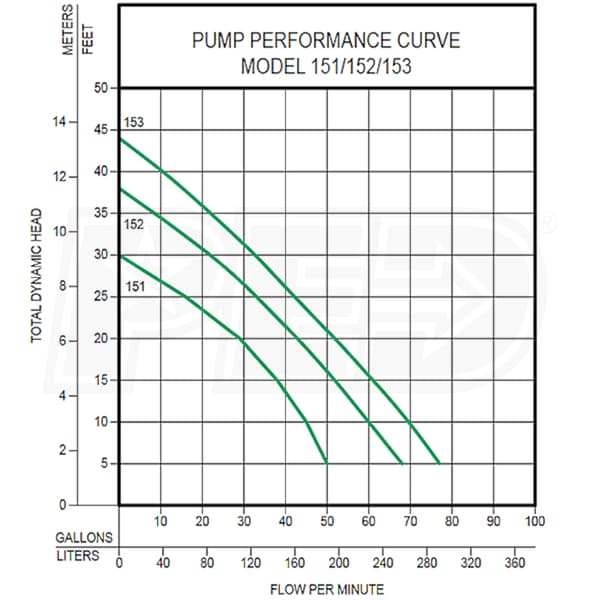

GPH @ 0 feet
4140
GPH @ 5 feet
4140
GPH @ 10 feet
3660
GPH @ 15 feet
3180
GPH @ 20 feet
2640
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Max Head
38 Feet
Submersible
Yes
Engine
Horsepower
.4 HP
Overview
Product Category
Sump Pump
Weight
37 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
053514118655
