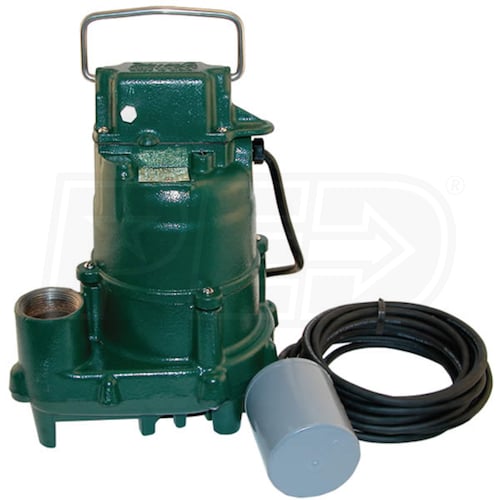

Zoeller BN152 - 4/10 HP Cast Iron High Head Effluent / Sump Pump w/ 20' Variable Level Float Switch
Model:
152-0005
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
1
$60.00
In-Stock
Features
Zoeller BN152 - 4/10 HP Cast Iron High Head Effluent / Sump Pump w/ 20' Variable Level Float Switch
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Zoeller Dose-Mate Submersible Effluent Pump
- For septic tank, low pressure pipe (LPP) & enhanced flow step systems
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel screws, guard, handle, arm and seal assembly
- Thermally Protected, 4/10 HP Permanent Split Capacitor Motor
- Oil-filled and hermetically sealed to prevent overheating
- Variable Level Tether Float Switch w/ 20' Cord
- Enough cord for reliable operation in septic systems
- Cast Iron Construction w/ Powder Coated Epoxy Finish
- Assures maximum protection for extended pump life
- 1-1/2" Discharge & Engineered Thermoplastic Vortex Impeller
- Non-clogging, can pass up to 3/4" spherical solids
- No screen to interfere with flowing debris
- Carbon/Ceramic Shaft Seals & Upper Sleeve / Lower Ball Bearings
- Provides smooth, quiet operation & lower operating temperatures
- 20' UL Listed Power Cord w/ 3-Prong Ground Plug
- Same length as float switch cord for reliable operation
- Includes 1-1/2" x 2" PVC Adapter Fitting
- *Note* Max Operating 130F & 38' Shutoff Head
- 3-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
152-0005
General Information
Product Category
Sump Pump
Motor
Voltage
120 Volt
Running Amps
8.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Piggy-Back Tether Switch

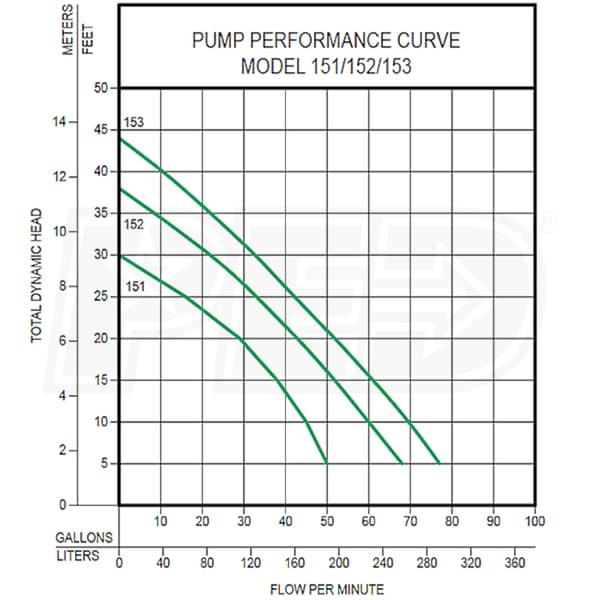

GPH @ 0 feet
4140
GPH @ 5 feet
4140
GPH @ 10 feet
3660
GPH @ 15 feet
3180
GPH @ 20 feet
2640
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Manual Override
Yes
Engine
Horsepower
.4 HP
Overview
Product Category
Sump Pump
Weight
38 Pounds
Consumer Warranty
3 Years
Product Length
10.125 Inches
Product Width
7.875 Inches
Product Height
12.06 Inches
UPC
053514118679
Reviews
(8)
Zoeller 152-0005 Reviews & Ratings
Sump Pumps Direct
By Rob H.
Snohomish, Washington
Purchased 07/30/2021 |
Review Posted 08/23/2021
Great service by Sump Pumps direct.
Rob H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Great Pump Replaced With A Great Pump
By Timothy M.
Peaks Island, Maine
Purchased 05/03/2021 |
Review Posted 05/26/2021
20 + years ago, we installed this exact model pump in our new septic (at the time) at the Historic Greenwood Garden, maintained by the non-profit Peaks Island Lions Club. This pump has been the only thing working well in that 20+ years.
When we started to figure out what was wrong with the septic this spring, we recognized that the pump was frozen during the winter due to being in Maine and not flushing tank and pump, and wasn't wired properly.
We ordered this new pump (same model)and it will outlast me in life.
This is a great pump and I would recommend it whole heartedly for any business, residence, and Non-profit for years of no fear of failure.
When we started to figure out what was wrong with the septic this spring, we recognized that the pump was frozen during the winter due to being in Maine and not flushing tank and pump, and wasn't wired properly.
We ordered this new pump (same model)and it will outlast me in life.
This is a great pump and I would recommend it whole heartedly for any business, residence, and Non-profit for years of no fear of failure.
Timothy M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
High Quality, Reliable, Exceeded Expectations, Fast
Review For Model Pump Indicated
By Asa M.
Glennville, Georgia
Purchased 03/12/2021 |
Review Posted 05/01/2021
Company rep. I spoke to was most helpful in advising me to go with the model pump I (got rather than just a sump pump when I told him what I was going to do with it. I clean it faithfully after each use and so far it is doing great.
Asa M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Reliable Pump At A Good Price
By Terry S.
Willow Park, Texas
Purchased 02/23/2020 |
Review Posted 03/17/2020
Best pump at the head i needed (32' effective including friction loss). Lightest weight and lowest amperage of the pumps I considered. Other pumps were much heavier with more amperage draw.
Terry S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
High Quality, Reliable, Price, Light Weight
Cons:
Bad Instructions
Best Lasting Quality Product You Can Buy!
By John S.
Highmore, South Dakota
Purchased 06/19/2018 |
Review Posted 07/12/2018
Excellent quality pump. Best pump for the job and will outlast any other. Will buy only Zoeller products.
John S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
High Quality, I'd Buy It Again, Durable, Reliable
Built To Last
By Richard G.
massapequa, New York
Purchased 03/04/2018 |
Review Posted 03/27/2018
I bought this product to replace a failed pump which had slightly higher pumping capacity but clearly did not have the durability of the Zoeller. This pump is constructed with care and does a great job.
Richard G. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
High Quality, Durable, Quiet, Exceeded Expectations
Cons:
Heavy
You Can't Go Wrong With This Pump..
By James P.
Lancaster, New York
Purchased 02/19/2018 |
Review Posted 03/13/2018
This is a serious sump pump. When you get tired of buying big box store pumps go with a Zoeller. Love the fact that is has a separate float that can be configured for any size pit and levels. I can depend on this pump for long service in a harsh environment. Yes is a bit more but you can't go wrong with this pump.
James P. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, Reliable, High Quality, I'd Buy It Again
Cons:
Expensive
Outstanding Pump!
By Jay K.
Santa Rosa, California
Purchased 01/20/2017 |
Review Posted 02/11/2017
Pump is absolutely outstanding in it's ability to move water. We have had a heavy rain for several days and so far it's performed great. The electrical cords are a good length and over all installation was easy.
The box and packaging it came in were a concern as it's a heavy pump. There was nothing around the pump itself and just a thin styrofoam pad at the bottom of the box.
I am only giving this a 4 star in terms of value because of needing to get this pump after a M-98 capacitor failed within 1 week of use. I had a Gould pump which had a vertical float switch that lasted almost 6 years before starting to go out. So I was advised to get the BN152 with a variable float switch. So, had to spend $60 more. But so far so good!
The box and packaging it came in were a concern as it's a heavy pump. There was nothing around the pump itself and just a thin styrofoam pad at the bottom of the box.
I am only giving this a 4 star in terms of value because of needing to get this pump after a M-98 capacitor failed within 1 week of use. I had a Gould pump which had a vertical float switch that lasted almost 6 years before starting to go out. So I was advised to get the BN152 with a variable float switch. So, had to spend $60 more. But so far so good!
Jay K. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Features, High Quality, I'd Buy It Again
Cons:
Packaging
