Zoeller M267 - 1/2 HP Cast Iron Sewage Pump (2") w/ Vertical Float

Name: Zoeller M267 - 1/2 HP Cast Iron Sewage Pump (2") w/ Vertical Float
Brand: Zoeller
SKU: 3754
Price: 503.25 USD
Availability: InStock

Model:

267-0001

Write A Review

$503.25

Free Shipping

In-Stock

Ships Tuesday, Dec 31st

Shipping to60601

Power

Style

Cord Length

Voltage

Zoeller M267 - 1/2 HP Cast Iron Sewage Pump (2") w/ Vertical Float

Model: 267-0001

$503.25

Accessories

Features

Specifications

Reviews

Product Q&A

How-To Articles

Manuals

Expert Recommended Accessories Selected by Ken, our Expert

Required Accessories 9

These accessories are required to properly setup/install this product.

Optional Accessories 10

Features

Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Automatic Submersible Sewage / Ejector Pump
Ideal for average to above average sewage removal
Durable Cast Iron Design
Switch case, base, motor & pump housing
No Sheet Metal Parts To Rust Or Corrode
Stainless steel screws, guard, handle, arm and seal assembly
Thermally Protected Motor
Oil-filled and hermetically sealed to prevent overheating
Non-Clogging Vortex Plastic Impeller Design
Capable of passing 2" spherical solids
Carbon & Ceramic Shaft Seal
Assures maximum protection for extended pump life
Powder Coated Epoxy Finish
Provides a corrosion resistant exterior
Added Features:
Neoprene square ring & gasket
Completely submersible, watertight and dust tight
Industry Leading Quality Control
Entire unit is pressure tested after assembly

California residents see

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

For more information go to: www.p65Warnings.ca.gov

Specifications

267-0001

General Information

Product Category

Sump Pump

Base

Base Material

Cast Iron

Min Sump Basin Size

18 Inch

Motor

Voltage

120 Volt

Running Amps

10.4

Thermal Protection

Yes

Power Cord Length

10 Feet

Oil Free Motor

Starting Amps

43.6

Pump

Housing Material

Cast Iron

Impeller Material

Plastic

Solids Handling Size

2 inch

Handles Solids

Yes

Float Type

Vertical Float

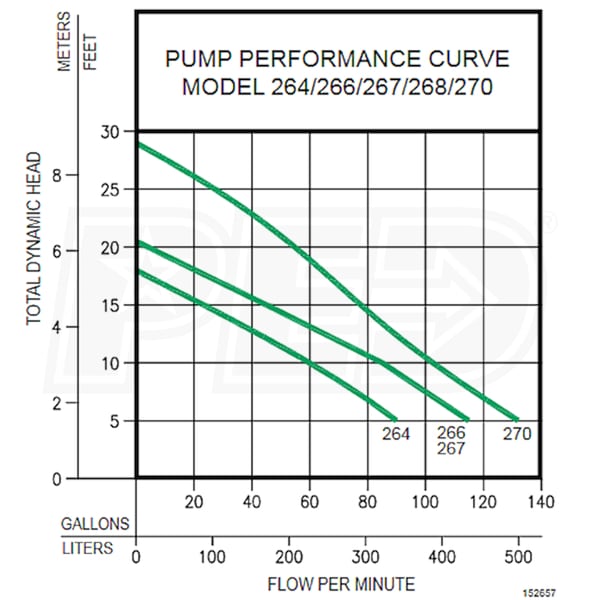

GPH @ 0 feet

7680

GPH @ 5 feet

7680

GPH @ 10 feet

5340

GPH @ 15 feet

3000

GPH @ 20 feet

600

Discharge Port Size

2 Inch

Check Valve Included

Float On

12 Inches

Float Off

4 Inches

Manual Override

Submersible

Yes

Engine

Horsepower

.5 HP

Overview

Product Category

Sump Pump

Weight

47.5 Pounds

Consumer Warranty

3 Years

Product Length

12.5 Inches

Product Width

12.5 Inches

Product Height

14.25 Inches

UPC

053514017613

Additional Model Numbers

M267, 267-0001

Reviews

(122)

Zoeller 267-0001 Reviews & Ratings

Product Q&A

(24)

Product Questions Answered by Ken, the eComfort Product Expert

Is it simple to replace the mechanical pump switch?

Richard

from Oregon

January 04, 2023

Answer

The Zoeller M267 mechanical switch is built into the pump. If you're fairly mechanical, it's not that difficult to replace. The hardest part might be unscrewing the screws that hold that housing together. Here is the replacement switch: https://www.sumppumpsdirect.com/Zoeller-004740/p8471.html

We do also recommend replacing the gasket, which you can find here:Â https://www.sumppumpsdirect.com/Zoeller-267007/p16469.htmlÂ

Was this answer helpful?

Yes

Hi Jim, can this pump work in a situation where the residential waste needs to be pumped straight up 5 feet and then up 5 additional feet over the next 100 feet horizontally?

Christopher

from California

January 17, 2018

Can I use an inline PVC adapter to go from 2" to 3" with this pump?

Keith E.

from Wisconsin

March 31, 2017

How tall is this sewage pump?

Derek

from New York

July 20, 2016

what is the RPMs for the M267 Zoeller?

Bobby

from Louisiana

April 28, 2016

What is the maximum distance this unit will pump vertically

Bob

from Alabama

December 07, 2015

I have a M267-F (M267-0037) I can not tell if your M267 is this model can you help

John

from Arizona

May 24, 2015

does the zoeller pump have a capacitor in it?

Philip C

from Texas

January 29, 2015

Jim - my local supplier is telling me the M267 is an acceptable replacement for the WM266 pump in my QwikJon. Upon inspection I can tell the design is slightly different but it would certainly 'fit' in the QwikJon basin. Thoughts?

Ken

from Maryland

January 24, 2015

Answer

Your local supplier is incorrect. The Zoeller QwikJon systems require an exact replacement pump and the M267 will NOT work. While the dimensions may appear very similar, the switching mechanism is very different. the correct replacement would be the 1/2 HP Replacement Sewage Pump for QWIK JON® Units, model WM266.
If you have any other questions, please let me know or feel free to call Zoeller tech support at 800-928-7867.

Was this answer helpful?

Yes

JIM THAT DISTANCE OF 120 FT WOULD HAVE A VERTICAL LIFT OF 4 1/2 FT STRAIGHT UP IFROM HOUSE BASMENT FLOOR TO SEWER PIPE. M267-F PUMP. THANKS ROCKY

ROCKY

from Illinois

August 22, 2014

made in USA ?

Jerry Z

from Indiana

August 15, 2014

How far will this pump, pump horizontally. I am building an outbuilding with a toilet and need to pump about 260 feet to my septic. The ground is level, basically no slope in discharge pipe over that distance. If not are there other options?

Jim

from North Carolina

May 26, 2014

What's the voltage? Is it dual (120/240) or (120/208)?

Steve C

from South Carolina

January 28, 2014

Why would a grinder pump like the shark 280 be used in lieu of a pump that just passes solids like the M267?

Steve

from Maryland

December 14, 2012

Answer

In most applications, especially residential, a standard sewage pump should suffice. Standard sewage pumps like the Zoeller M267 will easily handle "solids" up to 2 inches and will attach to a 2 inch discharge pipe. If you experience problems with frequent or occasional clogging, you may need to upgrade to a sewage pump with a 3 inch discharge. While a lot of people believe that a grinder pump will handle all their needs, this is generally not the case. A true grinder pump like the Liberty 2 HP Omnivore® Grinder Pump w/ Piggyback Tether Float model LSG202A are better used in applications that require an extreme high head (50' - 100+') or horizontal discharge run.

Was this answer helpful?

Yes

Hi Jim, Please tell me that's a typo in the Spec Sheet where it indicates the Motor Amps: 10.4 run / 43.6 start Amps. That's a whale of a load for Start Up. Thanks!

Art

from Indiana

August 01, 2012

i CURRENTLY HAVE A ZOELLER M282 AND IT JUST QUIT ON ME WONDERING IF THE M267 WOULD BE A GOOD REPLACEMENT. THIS SERVICES A BATHROOM AND 2 SINKS IN THE BASEMENT

JOE

from Illinois

July 29, 2012

Hi Jim, I'd like to know if you have any recommendations on a battery backup pump you can recommend that would be a good fit with the Zoeller M267.

Mark

from Maryland

March 07, 2012

Hi, Can i reduce output 2 inch to 1.5 inch whit this sump pump zoeller m267 and do you you ship to Quebec Canada

from

October 21, 2011

is there a warranty that comes with this product? type and length of warranty

Carol Porcho

from California

October 13, 2011

is this the same thing as a grinder pump

Rainey

from Missouri

September 29, 2011

Hi Jim, We are looking for sewage pump for basement bathroom; Zoeller M267 looks the best one available. However, is there any kind of system come with pump which will alert just in case pump shut down or something got stuck/wrong with it? Please suggest...

Mehul Patel

from North Carolina

July 16, 2011

Answer

There are no pumps that I'm aware of with that capability, however, you might check out the Superior Pump Universal Sump & Sewage Pump Alarm System, Model 92060. This alarm system would alert you in the event your liquid level was higher than normal. Another option might be the Protected Home Basic Alarm Dialer, Model BD-5000 and the Protected Home WaterSiren Plus, model WS-04. This system would sound an alarm and automatically dial a phone number to alert you as well when the water level reaches a higher than normal level.

Was this answer helpful?

Yes

Hi Jim: I'm looking at using the M267 to move the water from a basin that will catch flow from 5 gutter downspouts. What is the duty cycle rating? When it rains, I expect this pump will run continuously and/or have lots of starts.

Ben

from Tennessee

April 16, 2011

Answer

Kind of a tough question to answer because the Duty Cycle is based on a number of variables.
Basically the standard stop/starts per hour recommended for the M267 are 6-10.

To calculate a more specific Duty cycle you would need to know the fixture count & GPM’s feeding into the basin, the basin capacity along with the collected volume capacity within the basin, also the discharge length and head, taking into account peak Vs. non-peak usage (yes it gets complicated).

There are mathematical equations to figure out a close Duty Cycle predicated on the info I just listed above however, depending on peak, non-peak or moderate demand the Duty Cycle will fluctuate.

Was this answer helpful?

Yes

What is the shut off head in feet on the M267?

Bruce

from California

February 04, 2011
