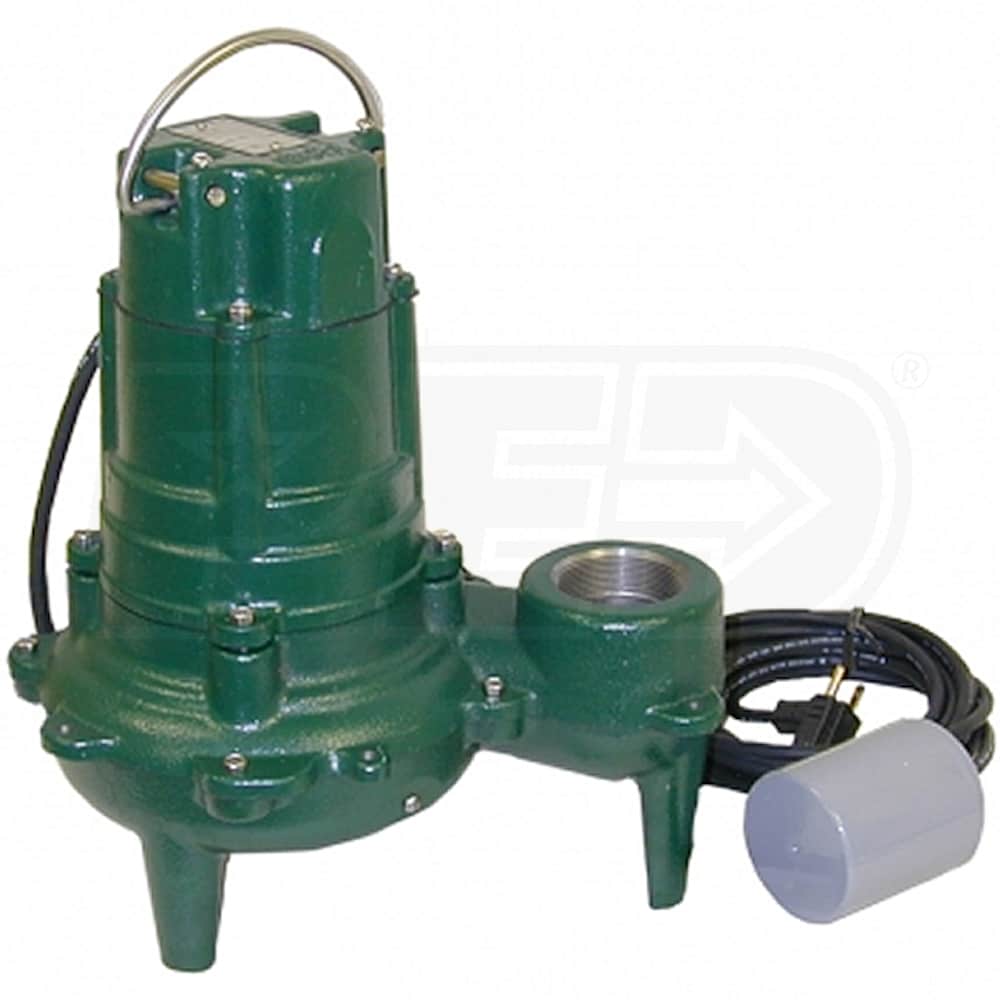

Zoeller BN270 1-HP Cast Iron Sewage Pump w/ Variable Piggy Back Float Switch (20' Cord)

Model:

270-0005

Write A Review
$699.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Dec 23rd
Shipping to60601

Zoeller BN270 1-HP Cast Iron Sewage Pump w/ Variable Piggy Back Float Switch (20' Cord)
Zoeller BN270 1-HP Cast Iron Sewage Pump w/ Variable Piggy Back Float Switch (20' Cord)
Model: 270-0005
$699.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Submersible Sewage / Ejector Pump
  • Ideal for above average sewage removal
  • Piggyback Variable Level Float Switch w/ 20-Foot Cord
  • Fully-adjustable, can accommodate longer pump cycles
  • Powder Coated Epoxy Finish Cast Iron Pump & Motor Housing
  • A durable, corrosion-resistant exterior for harsh conditions
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel screws, guard, handle, arm and seal assembly
  • Thermally Protected 1 HP PSC Motor (3450 RPM)
  • Oil-filled & hermetically sealed to prevent overheating w/ auto reset
  • Non-Clogging Vortex Engineered Plastic Impeller
  • Capable of passing up to 2" spherical solids
  • Carbon/Ceramic Shaft Seal & Upper Sleeve/Lower Ball Bearings
  • Assures maximum protection for extended pump life
  • Engineered Thermoplastic Base
  • No need to worry about a rusty base or pump leg again
  • Neoprene Square Ring & Gasket
  • Completely submersible, watertight and dust tight
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

270-0005
specs product image PID-94501
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
15
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
7920
GPH @ 5 feet
7920
GPH @ 10 feet
6060
GPH @ 15 feet
4620
GPH @ 20 feet
3360
Discharge Port Size
2 Inch
Check Valve Included
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
1 HP
Overview
Product Category
Sump Pump
Weight
48 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Product Width
13.06 Inches
Product Height
15 Inches
UPC
053514062378
