Zoeller ProPack98 Spin - 1/2 HP Combination Primary & Backup Sump Pump System
Model:
508-0007
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

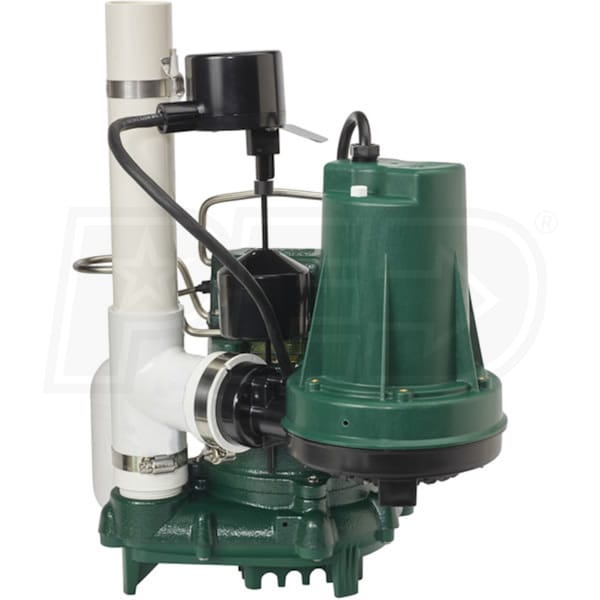

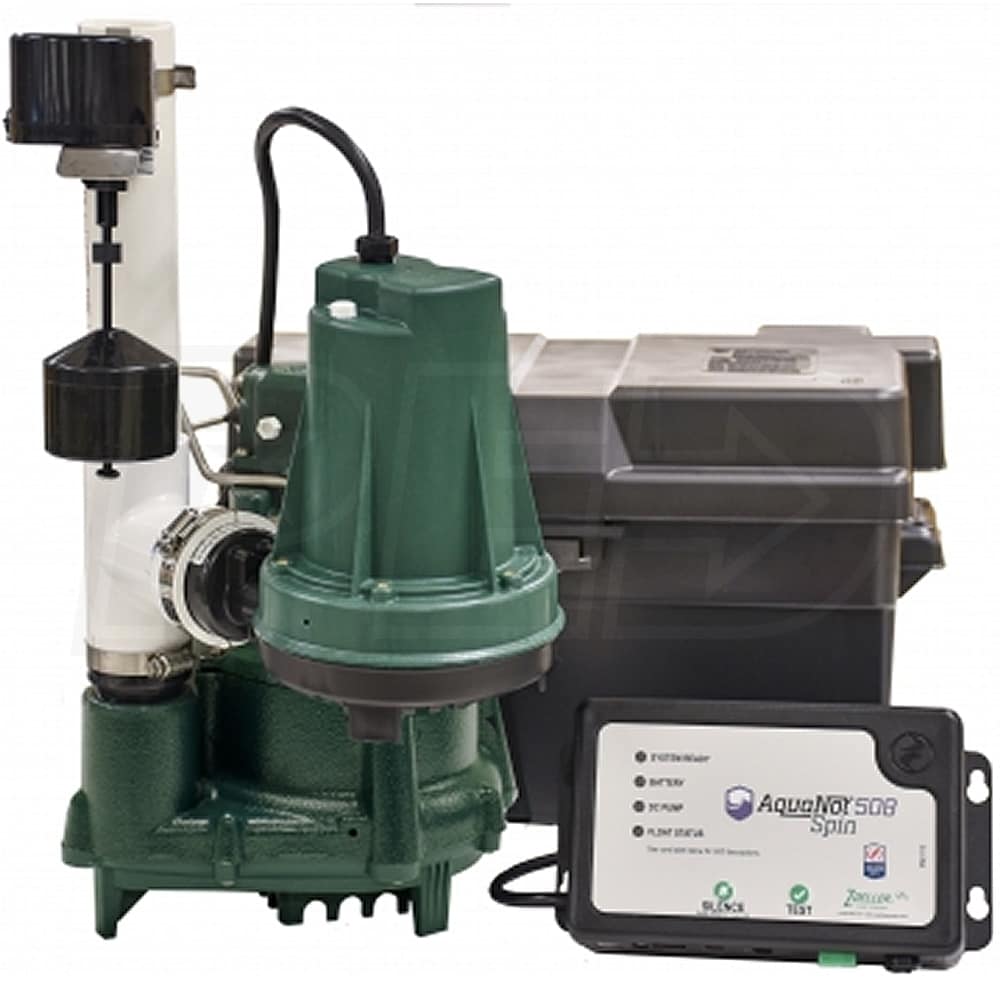

- Zoeller Pro Pak 98 - Primary & Backup Sump Pump System
- Simply attach inlcluded discharge pipe & you're ready to install
- 1/2 HP Cast Iron Primary Pump w/ Vertical Float Switch
- Engineered thermoplastic base for extended pump life
- Oil-filled and hermetically sealed to prevent overheating
- 12-Volt, Highly Efficient Backup Sump Pump (6' Leads)
- Non-corrosive design w/ Integrated Check Valve & Pump Legs
- Pumps 2340 gallons-per-hour @ 5' lift (or 1800 GPH @ 10')
- Built-In Alarms
- High Water, Low Battery & Reverse Polarity
- 10-Amp Battery Charger & Control Box w/ LED Screen
- Self-contained design w/ Battery burnout & overcharge protection
- Displays battery voltage & important system information
- LED Light Indicators & Buttons
- For system status; AC Power, Charged, Charging & Low Battery
- Plus High Water, Alarm Off button & Scroll display button
- Compact, low-voltage Vertical Float Switch For Backup Pump
- Corrosion-Resistant Box Fits Group 27, 29 or 31 Batteries
- Furnished With All Required Fittings - BATTERY SOLD SEPARATELY
- 3-Year Warranty
- For Indoor Use Only
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
508-0007
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
12 Volt DC/120 Volt AC
Battery Included
No
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Vertical Float
GPH @ 0 feet
4320
GPH @ 5 feet
4320
GPH @ 10 feet
3660
GPH @ 15 feet
2700
GPH @ 20 feet
1500
Backup GPH @ 0 feet
2340
Discharge Port Size
1-1/2 Inch
Check Valve Included
Yes
Float On
9.5 Inches
Float Off
3 Inches
Manual Override
No
Backup GPH @ 5 feet
2340
Backup GPH @ 10 feet
1800
Backup GPH @ 15 feet
1200
Backup GPH @ 20 feet
360
Engine
Horsepower
.5 HP
Overview
Product Category
Sump Pump
Assembly Required
Yes
Weight
43 Pounds
Consumer Warranty
3 Years
UPC
053514348762
Reviews
(71)
Zoeller 508-0007 Reviews & Ratings
Product Q&A
(3)
Product Questions
Answered by Ken, the eComfort Product Expert
The description says that it requires an 18-inch sump basin. Our basin is 18 inches in diameter at the top but slopes down to 16 inches at the bottom. Will this model fit?
Mason M.
from Ohio
August 30, 2018
Do I need this check valve with the 508-0007 pump system or will the check valves built into it do the same thing? My current sump pump installation has a check valve above the pump just above the pit level. There is also a small hole drilled into the pipe between the sump pump and the current check valve. Will the 508 system need this hole also? I'm not sure what the hole is for, it just sprays a bit while the pump is running and then lets this section of pipe drain. The instructions included with the 508 don't mention either of these features, I just wanted to double check with you before I eliminate them.
Brad T.
from Utah
February 07, 2017
I have no experience with battery back-up systems but I'm considering this system for purchase. It does not include a battery. What type and size battery is optimally recommended for this system?
Kevin
from New York
April 08, 2015
