Zoeller BN53 - 1/3 HP Cast Iron Submersible Sump Pump w/ Tether Float Switch
Model:
53-0029
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
4
Model: 10-4011
$134.00
In-Stock
Model: 30-0041
$31.90
In-Stock
$18.00
In-Stock
$504.00
In-Stock
Features
- Non-Automatic Submersible Sump Pump w/ Piggyback Float Switch
- Ideal for average water removal
- Piggyback Variable Level Float Switch w/ 15' Cord
- Fully-adjustable, can accommodate longer pump cycles
- Cast Iron Switch Case, Motor & Pump Housing
- Designed for rapid heat dissipation and extended life
- Engineered Thermoplastic Base
- Offers years of reliable, trouble-free operation
- Thermally Protected Motor
- Oil-filled and hermetically sealed to prevent overheating
- Carbon & Ceramic Shaft Seal
- Assures maximum protection for extended pump life
- Clog-Resistant Design
- No screen to interfere with flowing debris
- Capable of passing 1/2" diameter solids
- Industry Leading Quality Control
- Entire unit is pressure tested after assembly
- 3-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
53-0029
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.7
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
25.9
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch

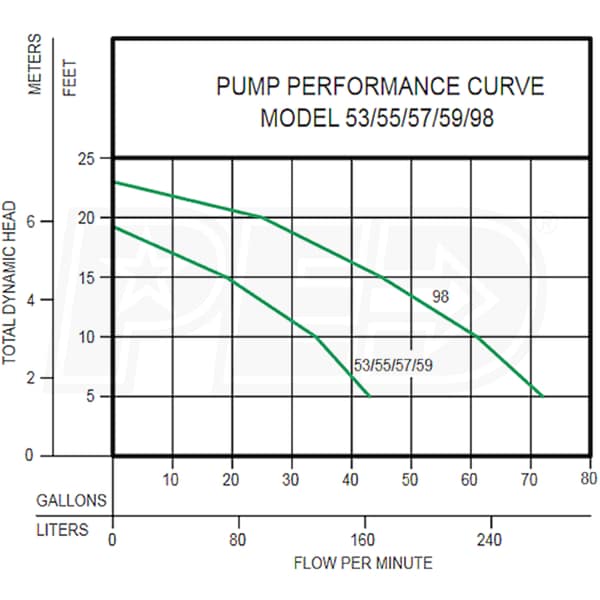

GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.33 HP
Overview
Product Category
Sump Pump
Weight
24 Pounds
Consumer Warranty
3 Years
Product Length
10.2 Inches
Product Width
7.5 Inches
Product Height
10.2 Inches
UPC
053514023812
Reviews
(12)
Zoeller 53-0029 Reviews & Ratings
Customer Rating
4.92
(12 Ratings)
5
(11)
(11)4(1)
(1)3(0)
(0)2(0)
(0)1(0)
(0)
Forget The Box Stores
By Timothy B
Connecticut
Purchased 08/19/2024 |
Review Posted 09/10/2024
Usually I buy a pump from a box store because of the immediacy of replacing a failed pump/flooding. After going through three pumps with the automatic float i got the feeling that the automatic float pumps have a short cycle and puts a lot of wear on the switch. This time I opted for the tethered float type to get more of a level differential on the cycle and the control of selecting on and off heights. I tethered out the minimum of 5” of cord and am happy with the results. Dramatically fewer cycles as it takes a long time for the water to rise enough to turn it on.
The automatic pumps keep the level too low and short cycle. I’m also hoping that the tethered switch is more resilient than the mechanical switch on automatic pumps. This pump is also an oil filled motor with bearings, cast iron body and a engineered plastic impeller that can move up to 1/2” solids. Better than what is available at box stores. You do need a sump deep enough and wide enough to accommodate this type of float switch. Mine is maybe 30” deep and 18”-20” wide.
I’m keeping the lesser quality pump I bought at a box store as a backup if this ever fails in an emergency. I also bought an alarm to warn me of a failure because flooding basement is no fun.
The automatic pumps keep the level too low and short cycle. I’m also hoping that the tethered switch is more resilient than the mechanical switch on automatic pumps. This pump is also an oil filled motor with bearings, cast iron body and a engineered plastic impeller that can move up to 1/2” solids. Better than what is available at box stores. You do need a sump deep enough and wide enough to accommodate this type of float switch. Mine is maybe 30” deep and 18”-20” wide.
I’m keeping the lesser quality pump I bought at a box store as a backup if this ever fails in an emergency. I also bought an alarm to warn me of a failure because flooding basement is no fun.
Timothy B Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
4/5
4/5
Pros:
Price, I'd Buy It Again, High Quality, Features
Cons:
None
Easy Return Policy
By Anthony L
Maryland
Purchased 04/26/2024 |
Review Posted 05/20/2024
I had ordered the wrong pump and tried to cancel that order while ordering the right pump. However they both arrived at my house. I followed their instructions and was able to send back unopened and got my full refund back within days thumbs up…
Anthony L Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I'd Buy It Again, Easy To Store
Cons:
None
Sump Pump
By David W
Illinois
Review Posted 02/14/2023
Pump is working fine.
David W Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
4/5
4/5
Great Pump
By Ken M.
Georgetown, Ohio
Purchased 12/01/2021 |
Review Posted 12/23/2021
This pump works great and my last Zoeller pump ran for 15 years performance was fantastic. I highly recommend this pump with tether switch.
Ken M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Reliable, Durable, High Quality, Id Buy It Again
This Is A Workhorse
By Dave K.
coopersburg, Pennsylvania
Purchased 07/20/2020 |
Review Posted 02/12/2021
Great pump...I got this pump two weeks before we had a really bad 8 inch rain storm. Worked really well and was able to keep up with the amount of water coming in the pit. My pit is large enough to use the tether piggy back float switch. It is able to pump longer cycles and more water than the standard vertical float. This eases my mind. The old Wane pump
served me well for 14 years but it was time to put it in the bone yard.
served me well for 14 years but it was time to put it in the bone yard.
Dave K. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Reliable, Quiet, Durable, Id Buy It Again
Spare
By Ron G.
Aurora, Illinois
Purchased 01/01/2021 |
Review Posted 01/25/2021
I purchased this unit as a spare.
Ron G. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Reliable, Id Buy It Again, Features, Easy To Store
Built Tike A Tank
By Timothy D.
POTTSTOWN, Pennsylvania
Purchased 08/22/2018 |
Review Posted 09/13/2018
Seems well built and stocky. Reasonable price. My sump pump system worked with no weep hole. Pumped water like mad and is almost silent. Talk to me in 10 years to see how it holds up.
Timothy D. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, High Quality, Easy To Use, I'd Buy It Again
Cons:
Packaging
Best Sump Pump I Have Ever Owned
By Jan M.
HOWELL, Michigan
Purchased 05/12/2018 |
Review Posted 06/04/2018
My water table is very high and I have had to replace sump pumps every 2 or 3 years. I am very happy and have peace of mind with my Zoeller pump. Thank you for building a reliable pump.
Jan M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, Reliable, Durable, Price
I Would Call This Pump A Work Horse.
By David L.
plymouth, Indiana
Purchased 08/20/2017 |
Review Posted 05/26/2018
During a heavy rain and melting snow last February in north In. This pump ran 24/7 for two weeks with no problems period, water came in so fast the pump would cycle on then off I thought it would be better to disconnect the switch and run the pump full time and worked out well. I wouldn't recommend for the novice if you're new to this type of problem.
The pump is built strong and made to last a long time, I will buy another one if this one ever fails. Another good point to end this with is, the web site for Zoeller has a contact for them and you can talk to an English speaking person that has a wealth of knowledge about water problems and solutions and that's a great reason to buy American made.
The pump is built strong and made to last a long time, I will buy another one if this one ever fails. Another good point to end this with is, the web site for Zoeller has a contact for them and you can talk to an English speaking person that has a wealth of knowledge about water problems and solutions and that's a great reason to buy American made.
David L. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
High Quality, Durable, Reliable
Awesome Pump For The Money
By Gregory P.
Oshkosh, Wisconsin
Purchased 04/06/2017 |
Review Posted 04/28/2017
Great pump.
Gregory P. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, Quiet, High Quality, I'd Buy It Again
Cons:
none
Product Q&A
(1)
Product Questions
Answered by Ken, the eComfort Product Expert
Does this pump require a weep hole?
Richard
from Indiana
March 27, 2024
