Features
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- ***NON-AUTOMATIC - Requires Float Switch***
- Submersible Cast Iron Sump Pump
- Offers years of reliable, trouble-free operation
- Engineered Thermoplastic Base
- Designed to prevent base corrosion in harsh environments
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel screws, guard, handle, arm and seal assembly
- Thermally Protected, Permanent Split Capacitor Motor
- Oil-filled and hermetically sealed to prevent overheating
- Carbon & Ceramic Shaft Seal
- Assures maximum protection for extended pump life
- Powder Coated Epoxy Finish
- Provides a corrosion resistant exterior
- Clog-Resistant Design
- No screen to interfere with flowing debris
- Capable of passing 1/2" diameter solids
- Industry Leading Quality Control
- Entire unit is pressure tested after assembly
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
98-0002
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.4
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
29.2
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
No Switch

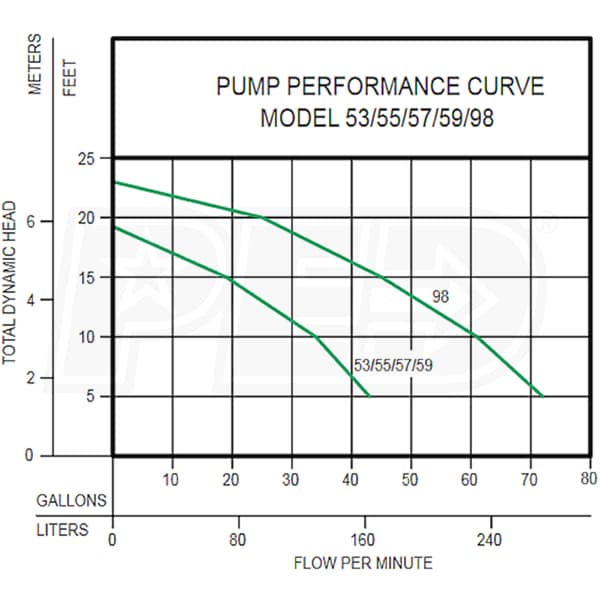

GPH @ 0 feet
4320
GPH @ 5 feet
4320
GPH @ 10 feet
3660
GPH @ 15 feet
2700
GPH @ 20 feet
1500
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Manual Override
Yes
Max Head
23 Feet
Submersible
Yes
Engine
Horsepower
.5 HP
Overview
Product Category
Sump Pump
Weight
38 Pounds
Consumer Warranty
3 Years
Product Length
10.125 Inches
Product Width
7.875 Inches
Product Height
12.06 Inches
UPC
053514029470
Additional Model Numbers
N98, 98-0002
Reviews
(77)
Zoeller 98-0002 Reviews & Ratings
Product Q&A
(6)
Product Questions
Answered by Ken, the eComfort Product Expert
With 29.2 start up amps. Will this run on a 15 amp circuit?
David
from Wisconsin
December 22, 2014
My Zoller pump has a threaded female connector on the body. What am I expected to put between the pump body and the bottom clamp of this check valve?
BN
from California
September 17, 2014
which float switches will work with the Zoeller N98 with its 29.2 amp start up?
Levi
from Iowa
September 08, 2013
Is this pump capable of handling water softener and washing machine discharge?
if not, which brand/model can?
Steve K
from Wisconsin
June 06, 2013
can this pump run continous 24/7. t be used in a exterior feature
Paul
from Illinois
April 30, 2012
I am torn between which Zoeller pump would be best for my application. My basement is 104' and currently takes in approximately 3" of water when there is a hard rain. The water is only on one side of the basement and never comes up on the other. Would you recommend a 1/3 hp or 1/2?
Joe
from New Jersey
January 15, 2012
How-To Articles
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

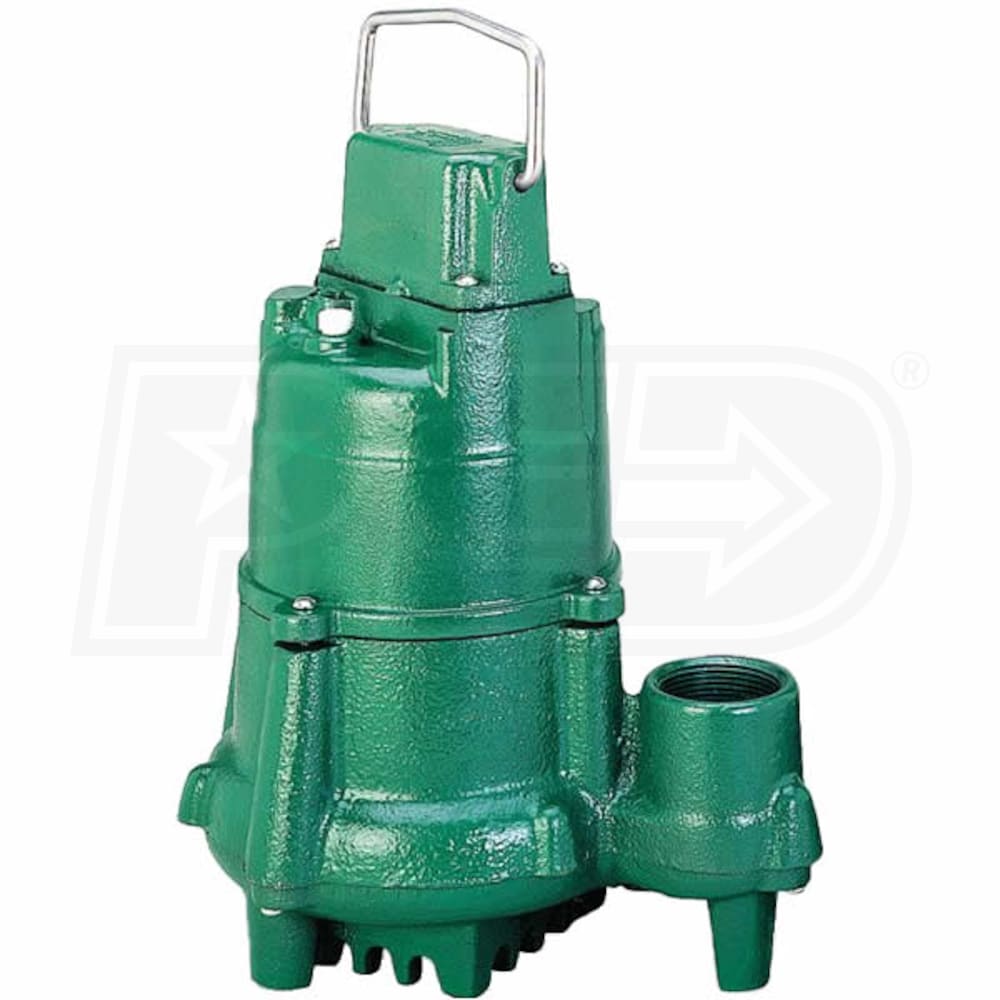

Zoeller N98 - 1/2 HP Cast Iron Submersible Sump Pump (Non-Automatic)
