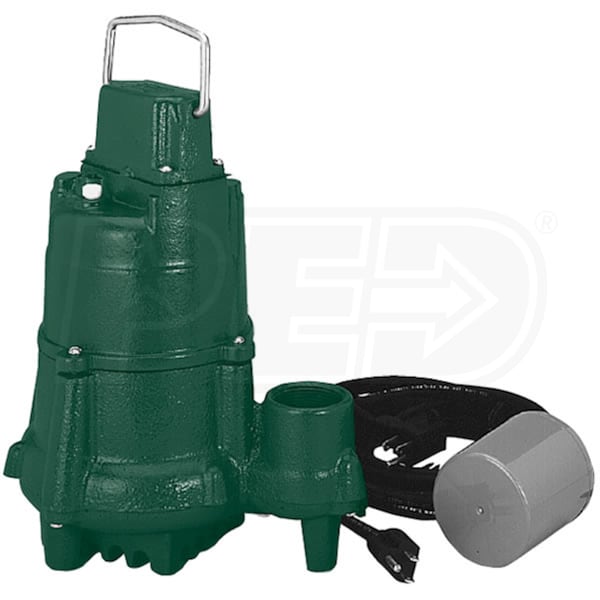

Zoeller 98-0005 - 1/2 HP Cast Iron Submersible Sump Pump w/ Tether Float Switch

Model:

98-0005

Write A Review
$364.50
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Dec 23rd
Shipping to60601

Zoeller 98-0005 - 1/2 HP Cast Iron Submersible Sump Pump w/ Tether Float Switch
Zoeller 98-0005 - 1/2 HP Cast Iron Submersible Sump Pump w/ Tether Float Switch
Model: 98-0005
$364.50
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Non-Automatic Submersible Sump Pump w/ Piggyback Float Switch
  • Ideal for average water removal
  • Piggyback Variable Level Float Switch w/ 15 Cord
  • Fully-adjustable, can accommodate longer pump cycles
  • Cast Iron Switch Case, Motor & Pump Housing
  • Designed for rapid heat dissipation and extended life
  • Engineered Thermoplastic Base
  • Offers years of reliable, trouble-free operation
  • Thermally Protected Motor
  • Oil-filled and hermetically sealed to prevent overheating
  • Carbon & Ceramic Shaft Seal
  • Assures maximum protection for extended pump life
  • Clog-Resistant Design
  • No screen to interfere with flowing debris
  • Capable of passing 1/2" diameter solids
  • Includes 1-1/2" x 2" adapter
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
  • 3-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

98-0005
specs product image PID-16864
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.4
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
29.2
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Float Type
Piggy-Back Tether Switch

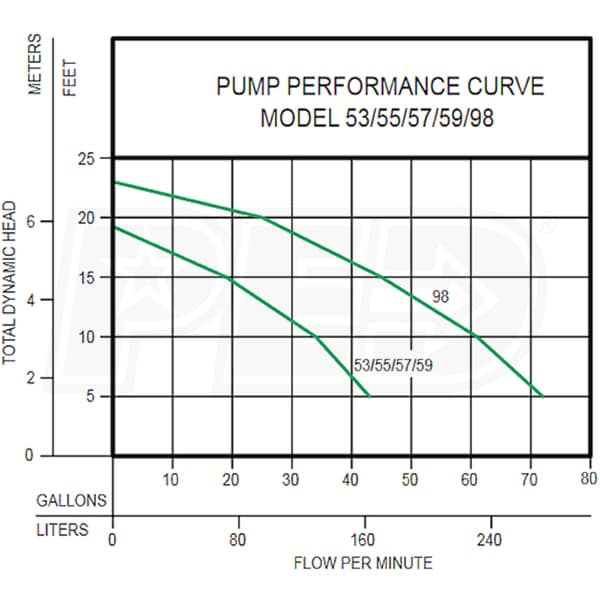

GPH @ 0 feet
4320
GPH @ 5 feet
4320
GPH @ 10 feet
3660
GPH @ 15 feet
2700
GPH @ 20 feet
1500
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Manual Override
Yes
Engine
Horsepower
.5 HP
Overview
Product Category
Sump Pump
Weight
38 Pounds
Consumer Warranty
3 Years
Product Length
10.25 Inches
Product Width
7.875 Inches
Product Height
12.06 Inches
UPC
053514029500
Additional Model Numbers

BN98, 98-0005
