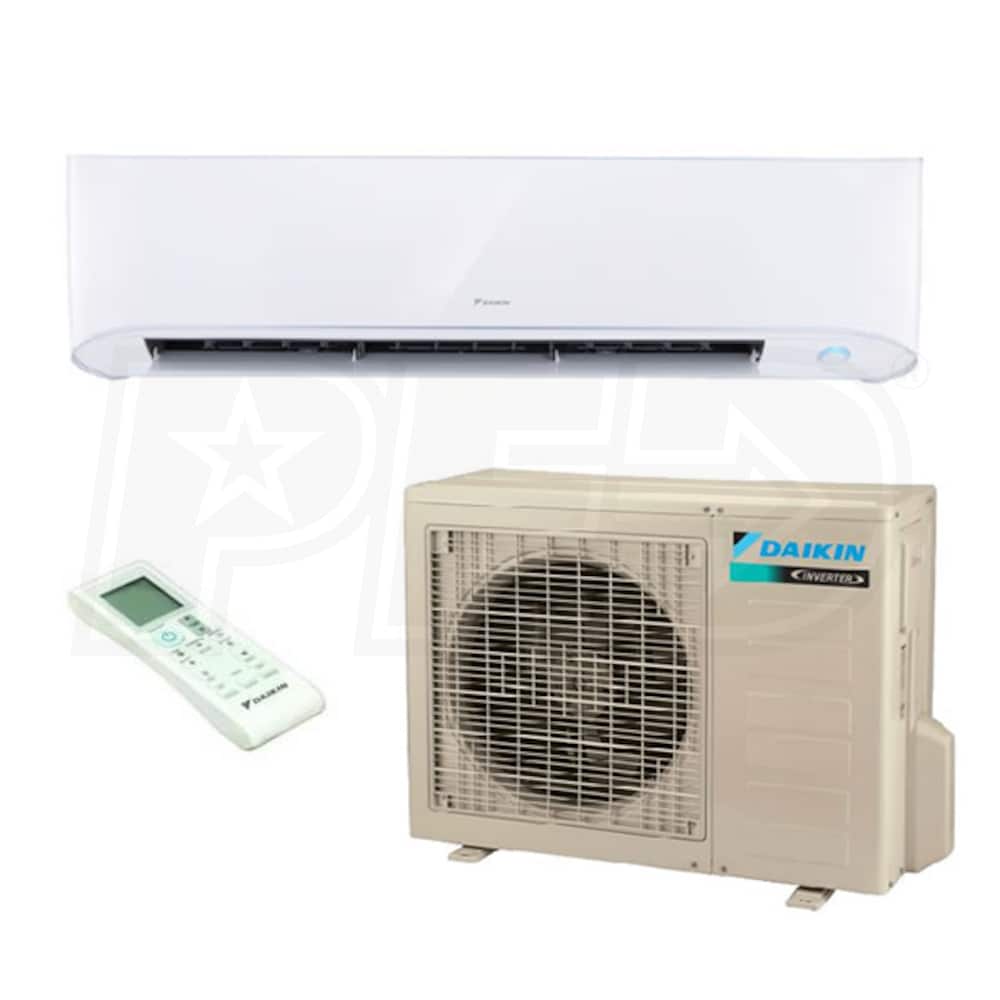

Daikin - 18k BTU Cooling Only - 17-Series Wall Mounted Air Conditioning System - 17.0 SEER
Model:
KB18AXVJU
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Whisper Quiet Operation
- Daikin ductless units are engineered from the ground up for impressively quiet operation. The solid construction works together with quiet motor operation to make the units as unobtrusive as possible to its surrounding environment.
- Inverter Technology
- Daikin's inverter technology works together with the expansion valve to adjust coolant flow and compressor speed to match indoor conditions. This results in less dramatic temperature swings and a more comfortable home.
- Built-In Advanced Filtration System
- Daikin mini splits do more for your home's comfort level than control its temperature. A titanium apatite photocatalytic filtration system is installed in the indoor unit, allowing the mini split to purify your home's air as well as cooling it.
- Included Wireless Control
- The included wireless control allows you to control the temperature of your room while never leaving the comfort of your favorite recliner.
- Low Ambient Cooling Capable
- Daikin condensers can continue to provide cooling even in low temperature climates. This unit can continue to operate down to an outside temperature of 50°F.
- (1) Daikin 17 Series - 18k BTU Cooling Only Outdoor Condenser - Single Zone Only (RKB18AXVJU)
- (1) Daikin 17 Series - 18k BTU Cooling Only Wall Mounted Unit - Single Zone Only (FTKB18AXVJU)
Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. The KB18AXVJU is a wall mounted system perfect for all your single zone cooling needs. This system pairs a Daikin wall mounted indoor unit with an outdoor air conditioning unit to provide cool air quietly and efficiently to any single zone or room in your home. Daikin indoor and outdoor units are designed with powerful energy saving features, allowing these systems to provide you with cost-efficient home comfort.
Product Includes
Product Note
All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Daikin 17 Series - 18k BTU Cooling Only Outdoor Condenser - Single Zone Only (RKB18AXVJU)
- (1) Daikin 17 Series - 18k BTU Cooling Only Wall Mounted Unit - Single Zone Only (FTKB18AXVJU)
KB18AXVJU
Overview
Product Category
Mini Split Cooling Only System
General Information
Type
Wall Mounted
Product Line
17-Series
Product Category
Mini Split Cooling Only System
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Outdoor Unit Size
18000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North and Southeast
Line Set Size
1/4" x 1/2"
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
17.0
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
10.5
Cooling Power Input
1650 Watts
Minimum Outdoor Temperature for Cooling
50 F
Dimensions
Product Weight
113 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
10571503
RKB18AXVJU
General Information
Type
Outdoor Condenser
Product Line
17-Series
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
18000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
53 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Cooling
50 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
98.4 Feet
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Condensate Drain Size
3/4 Inch
Product Height
25 11/16 Inches
Product Width
33 11/16 Inches
Product Depth
12 15/16 Inches
Product Weight
82 Pounds
Certifications
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
FTKB18AXVJU
General Information
Type
Wall Mounted
Product Line
17-Series
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Installation Location
Indoor
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Maximum Air Flow
430 CFM
Minimum Air Flow
318 CFM
Minimum Sound Level
35 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
40 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Condensate Drain Size
3/4 Inch
Product Height
12 5/8 Inches
Product Width
46 1/8 Inches
Product Depth
9 1/2 Inches
Product Weight
31 Pounds
Certifications
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
