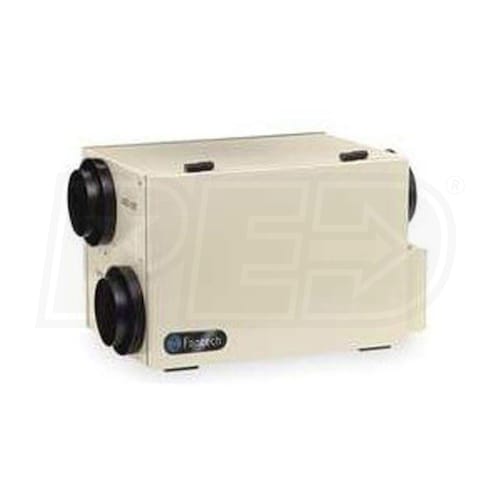

Fantech SHR - 159 CFM - Heat Recovery Ventilator (HRV) - Side Ports - 6" Duct - Exhaust Defrost

Model:

SHR1504

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Fantech SHR - 159 CFM - Heat Recovery Ventilator (HRV) - Side Ports - 6
Fantech SHR - 159 CFM - Heat Recovery Ventilator (HRV) - Side Ports - 6" Duct - Exhaust Defrost
Model: SHR1504
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    The Fantech SHR 1504 Heat Recovery Ventilator (HRV) is a 159 CFM heat recovery ventilator with side ports and exhaust defrost capabilities. The SHR 1504 is a 120 volt unit designed with 4 ports with 6" ducts. HRVs make your heating and cooling systems more efficient by transferring heat between fresh and stale air during ventilation. Its compact size and wall bracket make this HRV easy to mount. The SHR 1504 Heat Recovery Ventilator (HRV) features an aluminum core, washable electrostatic filters, and electronic control board.

    Product Features

    Heat Recovery Core
    An aluminum heat recovery core provides improved heat transfer capacity while taking up less space than traditional cores.

    Winter Guard
    A built-in exhaust defrost system allows for consistent, reliable operation during the winter months.

    Electronic Control Board
    Microprocessor technology efficiently controls operation of the unit making it easy to connect HVAC equipment and wall controls.

    Washable Electrostatic Filters
    Electrostatic filters capture airborne particles traveling through the ventilator. Easily washable, these filters can be repeatedly reused before replacement.

    Product Includes
    • (1) SHR 1504 Heat Recovery Ventilator (HRV)
    • (1) Mounting Chains

Specifications

SHR1504
specs product image PID-31165
General Information
Type
HRV
Product Line
SHR
Defrost Type Learn More
Defrost Type
ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Exhaust
Ports Quantity
4
Port Location
Side
UPC
650737015022
Performance
Maximum Air Flow
159 CFM
Apparent Sensible Effectiveness
74 %
Minimum Air Flow
60 CFM
Sensible Recovery Efficiency
62 %
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
6 Inches
Product Height
16 1/8 Inches
Product Width
23 1/2 Inches
Product Depth
17 3/8 Inches
Product Weight
45 Pounds
Shipping Width
35 Inches
Shipping Height
30 Inches
Shipping Length
40 Inches
Shipping Weight
45 Pounds
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Motor Warranty
7 Years
