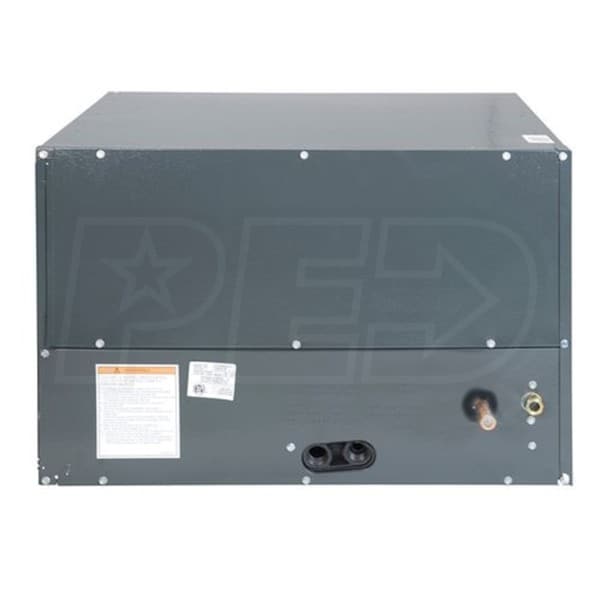

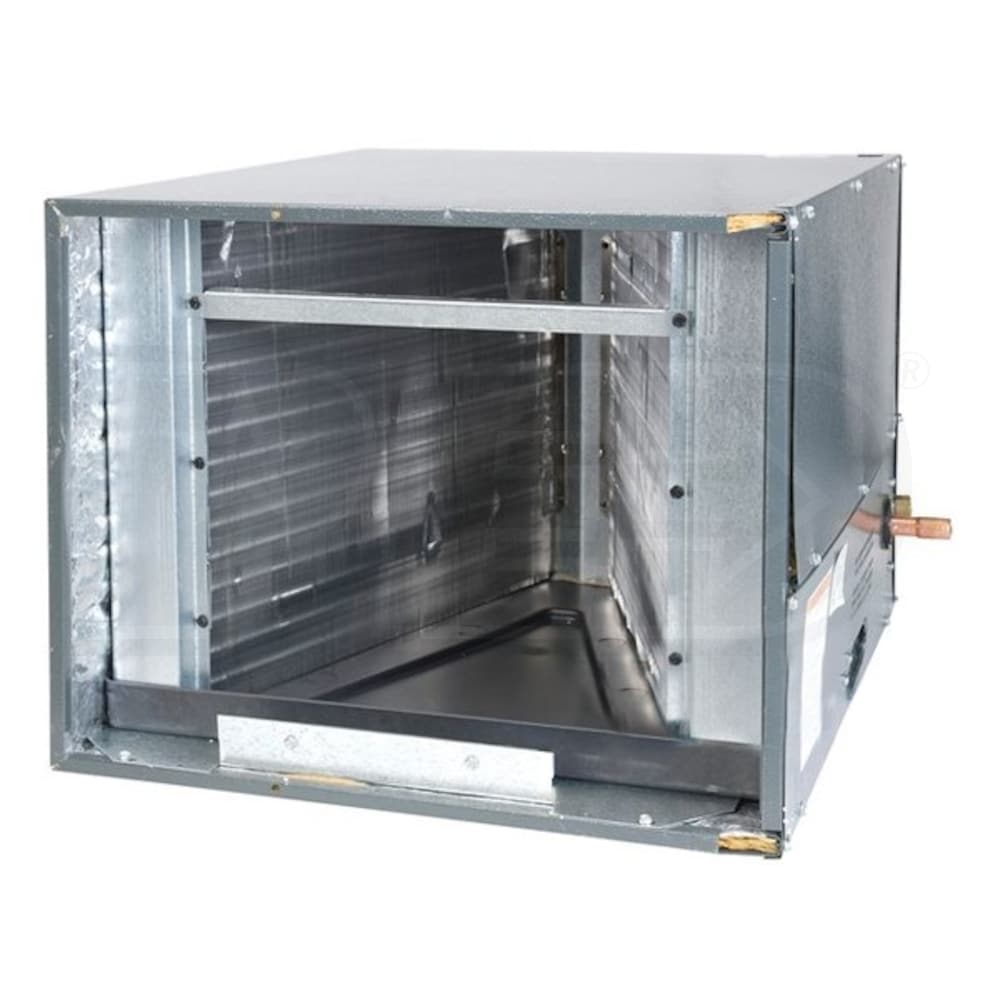

Goodman CHPF - 3-3.5 Ton - Horizontal A Coil - Cased - 24.5" Width Cabinet
Model:
CHPF3642D6
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
2
$56.00
Only 1 In-Stock
$57.00
In-Stock
Features
- All-Aluminum Coil
- Goodman's evaporator coils use a reliable all-aluminum design featuring sine fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
- Secure Cabinet
- A galvanized, embossed, and insulated cabinet protects this coil and prevents air leakage, providing superior longevity and efficiency.
- Condensate Management
- The CHPF features foil-faced insulation to inhibit the formation of condensate and a rust-resistant thermoplastic drain pan to capture what does form, keeping your system safe and operational.
- Multi-Refrigerant Compatibility
- R-22 refrigerant is no longer in production, but many older systems still use it. The CHPF is compatible with both R-22 and its replacement, R-410A. This makes it the perfect fit for any homeowner.
An air conditioner or heat pump is only as good as its evaporator coil. Luckily, Goodman designs their evaporator coils with the same mind for accessibility, longevity, and value as their other heating and cooling equipment. The CHPF3642D6 is a cased A coil for use in horizontal airflow applications. The all-aluminum construction and advanced design of this coil improve its durability and heat transfer efficiency. Whether you're replacing a failing coil or installing a new system, you can choose the CHPF with confidence. Goodman pressure tests each coil twice before it leaves the factory and backs them with an excellent warranty.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
CHPF3642D6
General Information
Type
Evaporator Coil
Product Line
CHPF
Product Category
Evaporator Coil
Refrigerant Type
R-22 or R-410A
Casing
Cased
Style
A Coil
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Installation Available
No
TXV Installed
No
UPC
663051451797
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 - 3.5 Tons
Nominal Cooling Capacity
42000 BTU
Nominal Minimum Cooling Capacity
36000 BTU
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
24 1/2 Inches
Product Height
24 1/2 Inches
Product Width
26 Inches
Product Depth
21 1/8 Inches
Product Weight
66 Pounds
Shipping Weight
66 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
(9)
Goodman CHPF3642D6 Reviews & Ratings
Customer Rating
4.78
(9 Ratings)
5
(7)
(7)4(2)
(2)3(0)
(0)2(0)
(0)1(0)
(0)
System is all set up and works great.
By Aj A
WILLIAMSPORT, Pennsylvania
Purchased 09/17/2018 |
Review Posted 10/11/2018
My home is nice and cool now and everyone says how quiet it is
Aj A Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, Price, Exceeded Expectations, I'd Buy It Again
Glad I found this at E Comfort!
By Joyce N.
Taylorsville, Kentucky
Purchased 08/20/2018 |
Review Posted 09/12/2018
My AC has been leaking for 8 of the 9 years I've owned my home. Until last year, no one could find the leak and the constant refills on coolant were pretty expensive. Finally, someone showed me the rusted, yucky version I had of this A coil and it set off their detector loud and clear. His cost for the part was nearly twice the cost of this so he recommended I purchase it online. It's now installed and the leak issue has been resolved. So glad I found this part at E Comfort!
Joyce N. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
That was great !!!!
By Jungsoo Y.
La Mirada, California
Purchased 08/02/2018 |
Review Posted 08/23/2018
That is so good. And works fine. If I need coil again, I'll buy that.
Jungsoo Y. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Super fast shipments. Great seller, this product came super qui
By Elizabeth R.
Toledo, Illinois
Purchased 07/10/2018 |
Review Posted 08/22/2018
Great product-super fast shipping. Definitely would buy again
Elizabeth R. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Nice unit. Quality construction.
By Robert H
North Platte, Nebraska
Purchased 05/11/2018 |
Review Posted 07/15/2018
Easy to install perfect fit to Goodman furnace.
Robert H Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Exactly what I was looking for
By James W.
Delran, New Jersey
Purchased 11/20/2017 |
Review Posted 12/23/2017
Got this to replace an old one. Fitted perfectly where old one came out. Seems to be build really well and a lot lighter than old one.
James W. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Cheaper than a new AC
By Deep N.
Austin, Texas
Purchased 06/03/2015 |
Review Posted 08/05/2016
I'm a GC but my personal AC coil was leaking and every contractor I talked to said I needed to replace my entire unit because the coil wasn't available. eComfort to the rescue! They shipped the coil and my guys were able to install it and I saved thousands over the cost of a new AC.
It's been about 6 months now and everything is working great. All my neighbors have the same systems so I always tell them to buy the coil from eComfort instead of replacing their whole unit.
It's been about 6 months now and everything is working great. All my neighbors have the same systems so I always tell them to buy the coil from eComfort instead of replacing their whole unit.
Deep N. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
So far so good
By Woo
IL
Review Posted 07/26/2015
I am a DIY guy without any prior experience on HVAC before. Original 2.5 Ton Carrier system was installed 10 years before by a local AC contractor with the new home. Micro leak happened on 5th year and then Freon refilled 3 times to bring it back until it no longer repairable this summer. Tired with contractor's pricing quote games for $2.2-2.5K to replace only the coil. I decided to learn and replace the coil myself. Goodman is the only OEM is selling HVAC equipment on open market as you knew. I have no other choice but bought this CHPF3636B6 from eComfort to match the original Carrier coil. Purchasing experience was smooth without any issue. This Goodman coil looked "good" on workmanship without any issue during the installation, grazing, leak testing,..., etc. Finally, charged the system and tested whole day yesterday and it is still running normally. I would say "so far so good". I guess Goodman decided this open marketing strategy with confidence of product reliability and user friendly for maybe DIY guys like me. However, the reliability can be proved only by timing. Hopefully, I can go back to update my review 5 or even 10 years later?!
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Great Product and Service
By Lijun
IL
Review Posted 07/08/2014
This coil arrived with perfect condition and works great after install it. It works much better than its old part (same model). eComfort provide great service.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
