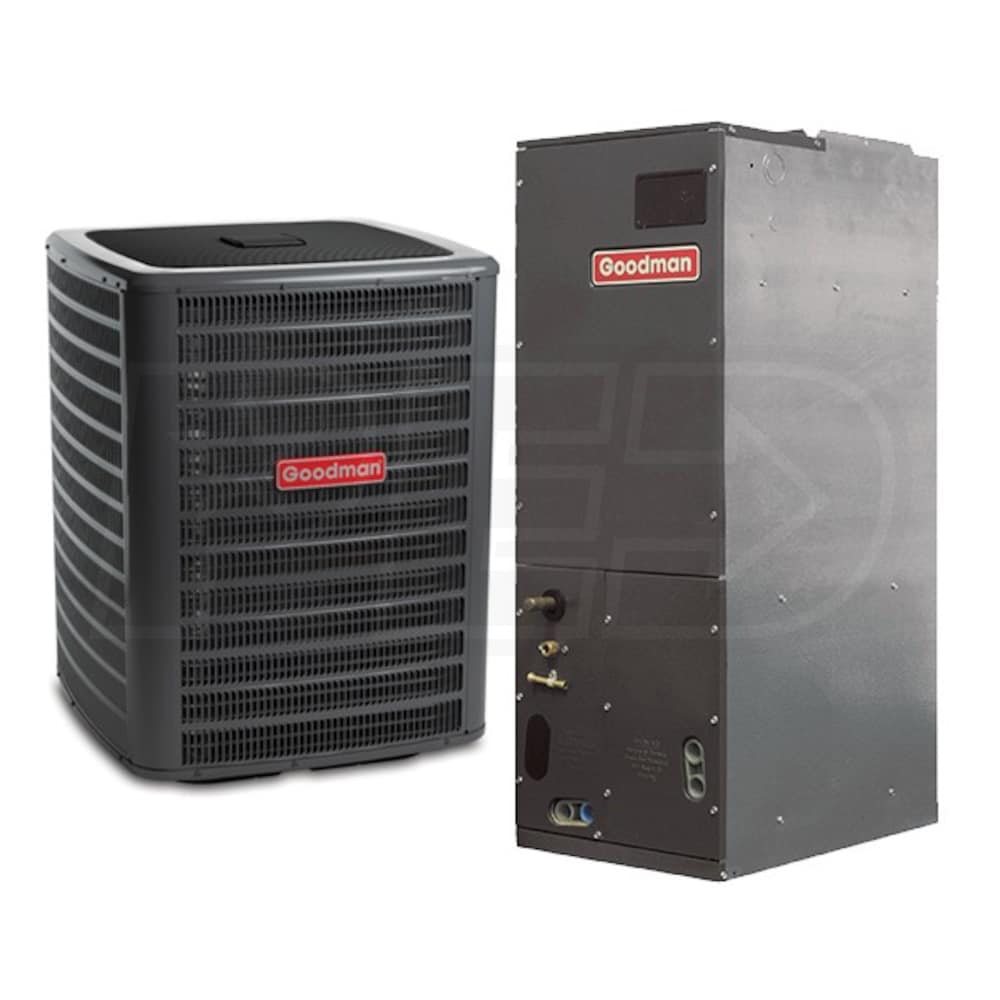

Goodman High Efficiency - 3 Ton Cooling - Air Conditioner & Air Handler Package - 16 SEER - Multi-Position
Model:
GAC160035000M-3
+
Share This Product
Features
- (1) Goodman GSX160361 Air Conditioner
- (1) Goodman ASPT42D14 Air Handler
A Goodman high efficiency central air package is the perfect way to upgrade your home's HVAC system. This pack contains a GSX16 air conditioner and an ASPT air handler. Each of these components enjoy the impressive durability and easy accessibility for which Goodman is famous, but their energy efficiency is the real selling point. State-of-the-art design and technology make the GAC160035000M-3 an excellent addition to nearly any household looking to reduce their energy spending.
Product Features
Advanced Coil Design
The coils of the GSX160361 and ASPT42D14 feature aluminum fins and grooved tubing. This design maximizes surface area and optimizes heat transfer for efficient comfort.
High-Efficiency Compressor
The GSX16 air conditioner utilizes a high-efficiency scroll compressor to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
Energy-Efficient Circulation
PSC blower motors are energy hogs. The EEM motor in the ARPT18B14 provides more efficient, more intelligent airflow for your home.
Quiet Comfort
Goodman takes great pride in providing comfort that doesn't disrupt your home. The GSX160361 features a three-bladed condenser fan, wire fan discharge grille, and louvered top, all designed to reduce noise levels without compromising performance.
Dehumidification
Goodman's air handlers make it easy to stay cool. The ASPT is designed to remove moisture from the air, letting you feel cool at higher temperatures.
SmartFrame
This air handler features Goodman's SmartFrame sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.
Secure Cabinet
Both components in this system possess a durable cabinet designed to improve the longevity of the system. Additionally, the ASPT42D14's cabinet is reinforced to prevent air and sound leakage.
Product Includes
Product Note
NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions. As of December 9th, 2022, we will no longer be selling 14 SEER and 16 SEER unitary products to the DOE Southern Region to comply with updated SEER2 Federal Regulations.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Goodman GSX16 - 3 Ton - Air Conditioning Condenser - 16 SEER - Single-Stage - R-410A Refrigerant (GSX160361)

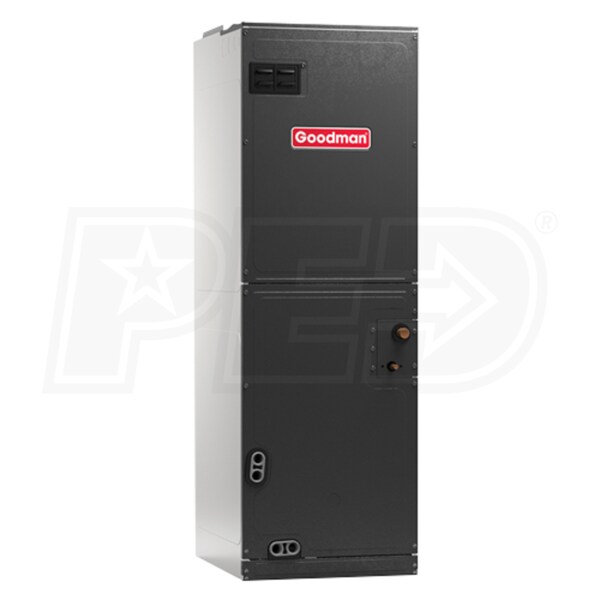

- (1) Goodman ASPT - 3.5 Ton - Air Handler - Multi-Position - EEM Motor (ASPT42D14)
GAC160035000M-3
General Information
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
No
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Nominal Cooling Capacity
35000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
13.0
Maximum Air Flow
1175 CFM
Dimensions
Product Weight
329 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
5756175
GSX160361
General Information
Type
Condenser
Product Line
GSX16
Product Category
Air Conditioning Condensers
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410a
Installation Location
Outdoor
Compressor Stages
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North
Installation Available
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Cooling BTU
36000
Cooling Capacity
35000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
72 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
19 Amps
Recommended Breaker Size
30 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
38 1/4 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
162 Pounds
Shipping Weight
180 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited* 10 Years Years
Overview
Product Category
Air Conditioning Condensers
ASPT42D14
General Information
Type
Air Handler
Product Line
ASPT
Product Category
Air Handler
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Motor Type
EEM
Mount Type
Multi-Position
Installation Location
Indoor
Electric Heat
Available
Installation Available
Yes
TXV Installed
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Cooling BTU
42000
Maximum Air Flow
1720 CFM
Minimum Air Flow
1055 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
6 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
24 1/2 Inches
Product Height
53 7/16 Inches
Product Width
24 1/2 Inches
Product Depth
21 Inches
Product Weight
110 Pounds
Shipping Weight
155 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
7/8 Inch
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
