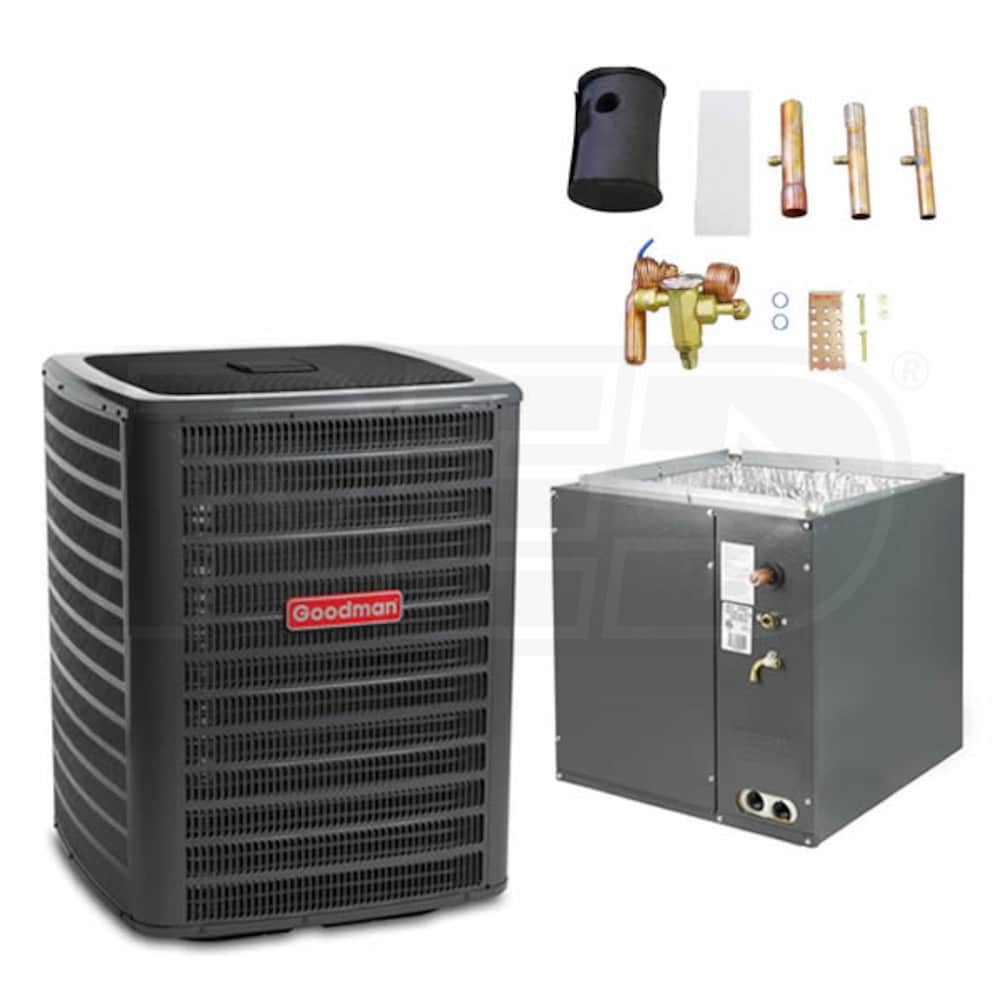

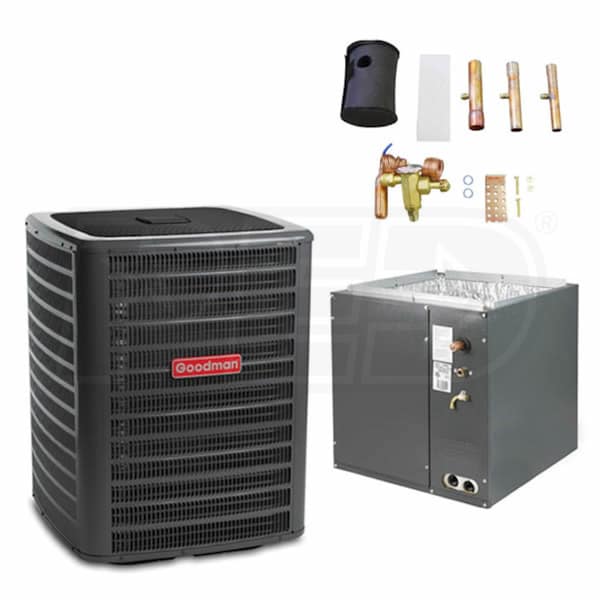

Goodman - 3 Ton Air Conditioner + Coil System - 15.5 SEER - 21" Coil Width - For Upflow/Downflow Installation
Model:
GSXC1836CAPF4961C6-V
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Ultra Quiet
- A compressor covered in a high-density sound blanket with the addition of a two-speed ultra-quiet ECM motor, makes for an extremely quiet air conditioner.
- UltraTech™ Compressor
- A two-stage Copeland® UltraTech™ scroll compressor provides the GSXC18 with incredibly reliable refrigerant flow. The two stage compressor increases efficiency by allowing the compressor to operate at a lower capacity when your demand is low.
- Filter Drier
- A filter drier is installed in the liquid line of the air conditioner to remove moisture and trap impurities. This prevents corrosion, freezing, and blockages that can negatively impact the operation of the air conditioner.
- Secure Cabinet
- The cabinet of the GSXC18 is built to last. Galvanized steel construction, a durable powder paint finish, and a steel coil guard protect your equipment from wear and tear, increasing its longevity.
- All-Aluminum Coil
- Goodman's evaporator coils use a reliable all-aluminum design featuring sine fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
- Durable Evaporator Coil
- A galvanized, embossed, and insulated cabinet protects the evaporator coil and prevents air leakage, providing superior efficiency over years of use.
- ComfortAlert™
- The included ComfortAlert™ compressor diagnostics module reduces the average time of maintenance calls and virtually eliminates misdiagnoses by experienced technicians, saving you money throughout the life of the air conditioner.
- ComfortBridge™ Compatible
- The GSXC18 is compatible with Goodman's ComfortBridge™ communicating controls. ComfortBridge™ control streamlines the installation and maintenance processes by automatically detecting your equipment and providing diagnostics.
- Extended Warranty
- Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
- (1) Goodman GSXC18 - 3 Ton - Air Conditioner - 18 Nominal SEER - Two-Stage - R-410a Refrigerant (GSXC180361)
- (1) Goodman CAPF - 4-5 Ton - Upflow/Downflow A Coil - Cased - 21" Width (CAPF4961C6)
- (1) Goodman 2.5 to 3 Ton Air Conditioner TXV Kit R410A Refrigerant (TX3N4)
The Goodman GSXC1836CAPF4961C6-V kit includes an outdoor condenser and evaporator coil to complete your home's central air system. The powerful GSXC18 air conditioner features an advanced condenser coil design that provides efficient and reliable cooling. The CAPF4961C6 evaporator coil fits directly onto your existing 21" furnace or air handler cabinet, allowing conditioned air to be circulated into your home. The GSXC18's galvanized steel construction paired with the all-aluminum evaporator coil design ensures your cooling system stays effective and efficient for years to come.
Product Includes
Product Note
The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Goodman GSXC18 - 3 Ton - Air Conditioner - 18 Nominal SEER - Two-Stage - R-410a Refrigerant (GSXC180361)
- (1) Goodman CAPF - 4-5 Ton - Upflow/Downflow A Coil - Cased - 21" Width (CAPF4961C6)
- (1) Goodman 2.5 to 3 Ton Air Conditioner TXV Kit R410A Refrigerant (TX3N4)
GSXC1836CAPF4961C6-V
Overview
Product Category
Air Conditioner & Coil Package
General Information
Product Category
Air Conditioner & Coil Package
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410A
Coil Width
21 Inches
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
Compressor Stages
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two Stage
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Cooling Capacity
34000 BTU
Nominal Cooling Capacity
35000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
15.5
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.5
Dimensions
Shipping Weight
311 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
201505458
GSXC180361
General Information
Type
Condenser
Product Line
GSXC18
Product Category
Air Conditioning Condensers
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410a
Installation Location
Outdoor
Compressor Stages
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two Stage
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Cooling BTU
36000
Cooling Capacity
36000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
18.0
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
71 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
21 Amps
Recommended Breaker Size
35 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
40 Inches
Product Width
35 3/4 Inches
Product Depth
35 3/4 Inches
Product Weight
216 Pounds
Shipping Weight
238 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited* 10 Years
Compressor Warranty
LIFETIME Years
Overview
Product Category
Air Conditioning Condensers
CAPF4961C6
General Information
Type
Evaporator Coil
Product Line
CAPF
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
Installation Available
Yes
TXV Installed
No
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 - 5.0 Tons
Cooling BTU
60000
Nominal Minimum Cooling Capacity
48000 BTU
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
21 Inches
Product Height
30 Inches
Product Width
21 Inches
Product Depth
21 Inches
Product Weight
73 Pounds
Shipping Weight
83 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Overview
Product Category
Evaporator Coil
TX3N4
General Information
Type
TXV Kit
Product Line
TX
Product Category
Forced Air Accessories
Refrigerant Type
R-410A
Dimensions
Product Weight
1 Pound
Shipping Weight
2 Pounds
Overview
Product Category
Forced Air Accessories
