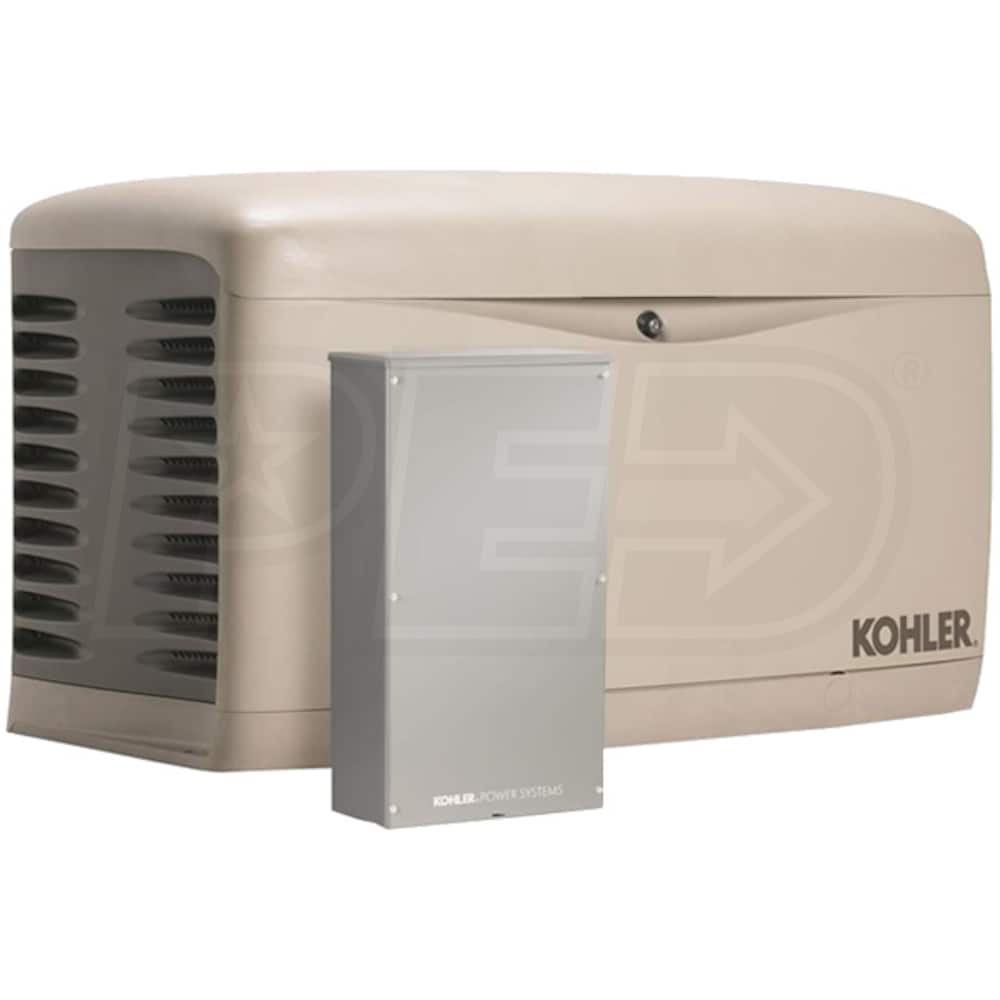

Kohler 14kW Composite Standby Generator System (200A Service Disconnect Switch w/ Load Shedding)

Model:

14RESAL-200SELS

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Kohler 14kW Composite Standby Generator System (200A Service Disconnect Switch w/ Load Shedding)
Kohler 14kW Composite Standby Generator System (200A Service Disconnect Switch w/ Load Shedding)
Model: 14RESAL-200SELS
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Fully Automatic Operation - Includes Automatic Transfer Switch
  • RXT 200A Service Entrance Rated Outdoor Automatic Transfer Switch
  • NEMA 3R Enclosure mounts between meter & main service panel
  • Built-In Load Shed - Manage (2) HVAC + (4) Non-Essential loads***
  • Kohler Command PRO® OHV Engine
  • Powerful and reliable engine with hydraulic valve lifters
  • PowerBoost™ Technology
  • Greater motor-starting ability for large electrical loads
  • Fast Response & Cleaner Power for Sensitive Electronics
  • Kohler™ generators restore power in as little as 10 seconds
  • Protects sophisticated electronics with low distortion (THD)
  • New Silencer Reduces Sound Levels & Provides Quiet Operation
  • Maintains neighborhood solitude - approx 67 dB(A) at 7 m (23 ft)
  • RDC2 Controller w/ Real-Time Clock To Set Weekly Exercise
  • LCD Display (2-Line); No More Codes - LED ATS status lights
  • 2.5-Amp 120V battery charger - eliminates separate 6-Amp charger
  • OnCue Plus Remote Monitoring System (Included)
  • Built-In Ethernet card, no hardware needed
  • Exclusive 100% Corrosion-Proof Composite Enclosure
  • Will not rust - even in harsh seaside environments
  • Premium Warranty - 5-Year / 2,000-Hour Limited Warranty
  • *Note - Must Be Installed At Least 5' From Structure
  • ***Requires PRM (Sold Separately)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

14RESAL-200SELS
specs product image PID-50707
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
420 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
26.2 Inches
Product Height
29 Inches
UPC
650531126214
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
14000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
12000 Watts
LP Power Capacity
14000 Watts
NG Fuel Consumption @ 50% Load
124 ft³/hr
NG Fuel Consumption @ 100% Load
193 ft³/hr
LP Fuel Consumption @ 50% Load
1.8 gallons/hr
LP Fuel Consumption @ 100% Load
2.3 gallons/hr
Rated Amps
58 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67 Run (63 Test) dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included (500 CCA)
Enclosure
Composite
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Sold Separately
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
725 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
