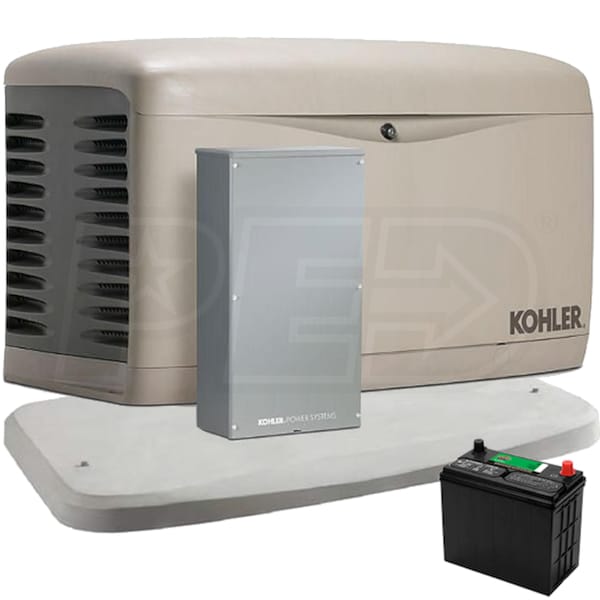

Kohler 14kW Composite Standby Generator System (200A Service Disc. w/ Load Shedding) + 3" Mounting Pad + Battery

Model:

EGD-14RESAL-200SELSKIT

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Kohler 14kW Composite Standby Generator System (200A Service Disc. w/ Load Shedding) + 3
Kohler 14kW Composite Standby Generator System (200A Service Disc. w/ Load Shedding) + 3" Mounting Pad + Battery
Model: EGD-14RESAL-200SELSKIT
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Fully Automatic Operation - Includes Automatic Transfer Switch
  • RXT 200A Service Entrance Rated Outdoor Automatic Transfer Switch
  • NEMA 3R Enclosure mounts between meter & main service panel
  • Built-In Load Shed - Manage (2) HVAC + (4) Non-Essential loads***
  • Kohler Command PRO® OHV Engine
  • Powerful and reliable engine with hydraulic valve lifters
  • PowerBoost™ Technology
  • Greater motor-starting ability for large electrical loads
  • Fast Response & Cleaner Power for Sensitive Electronics
  • Kohler™ generators restore power in as little as 10 seconds
  • Protects sophisticated electronics with low distortion (THD)
  • New Silencer Reduces Sound Levels & Provides Quiet Operation
  • Maintains neighborhood solitude - approx 67 dB(A) at 7 m (23 ft)
  • RDC2 Controller w/ Real-Time Clock To Set Weekly Exercise
  • LCD Display (2-Line); No More Codes - LED ATS status lights
  • 2.5-Amp 120V battery charger - eliminates separate 6-Amp charger
  • Built-in Ethernet card, no hardware needed for OnCue
  • Exclusive 100% Corrosion-Proof Composite Enclosure
  • Will not rust - even in harsh seaside environments
  • Premium Warranty - 5-year/2,000-Hour Limited Warranty
  • Includes Kohler® 3 Concrete Mounting Pad
  • Allows for easy installation of your Kohler® standby generator
  • Also Includes Interstate Group 51 12-Volt Battery
  • ***Requires PRM (Sold Separately)
  • Product Includes
    • (1) Kohler 14kW Composite Standby Generator System (200A Service Disconnect Switch w/ Load Shedding) (14RESAL-200SELS)
    • (1) Kohler 3" Concrete Mounting Pad for 14 / 20 RESA/RESAL & 20RESC/RESCL Standby Generators (GM90969)
    • (1) UN2794, Battery, Wet, Filled with Acid,8 Emergency 800-424-9300 (V51-6)
California residents see
Warning: This product can expose you to chemicals including Lead and lead compounds which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Kohler 14kW Composite Standby Generator System (200A Service Disconnect Switch w/ Load Shedding) (14RESAL-200SELS)
  • (1) Kohler 3" Concrete Mounting Pad for 14 / 20 RESA/RESAL & 20RESC/RESCL Standby Generators (GM90969)
  • (1) UN2794, Battery, Wet, Filled with Acid,8 Emergency 800-424-9300 (V51-6)
EGD-14RESAL-200SELSKIT
specs product image PID-82385
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
420 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
26.2 Inches
Product Height
29 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
14000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
12000 Watts
LP Power Capacity
14000 Watts
NG Fuel Consumption @ 50% Load
124 ft³/hr
NG Fuel Consumption @ 100% Load
193 ft³/hr
LP Fuel Consumption @ 50% Load
1.8 gallons/hr
LP Fuel Consumption @ 100% Load
2.3 gallons/hr
Rated Amps
58 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Included
Enclosure
Composite
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
725 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
14RESAL-200SELS
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
420 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
26.2 Inches
Product Height
29 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
14000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
12000 Watts
LP Power Capacity
14000 Watts
NG Fuel Consumption @ 50% Load
124 ft³/hr
NG Fuel Consumption @ 100% Load
193 ft³/hr
LP Fuel Consumption @ 50% Load
1.8 gallons/hr
LP Fuel Consumption @ 100% Load
2.3 gallons/hr
Rated Amps
58 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67 Run (63 Test) dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included (500 CCA)
Enclosure
Composite
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Sold Separately
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
725 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
GM90969-KP1-QS
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
190 Pounds
Product Length
54 Inches
Product Width
31 Inches
Product Height
3 Inches
