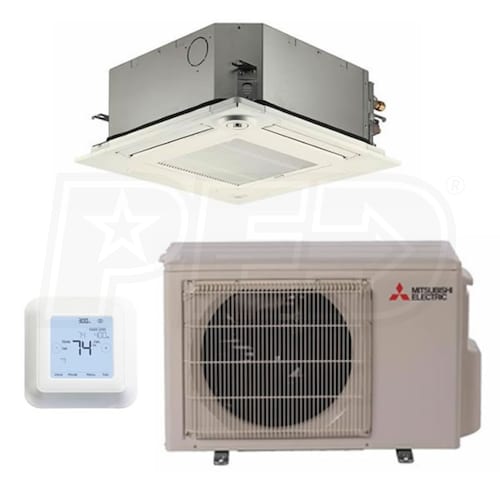

Mitsubishi - 12k BTU Cooling + Heating - M-Series Ceiling Cassette Air Conditioning System - 22.0 SEER
Model:
SL-KF12NA
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Precision Temperature Control Technology
- The SUZ-KA outdoor condenser uses inverter technology when cooling or heating your home. Rather than simply turning on and off, the outdoor condenser adjusts output based on temperature demand, resulting in efficient and precise heating and cooling.
- 3D i-see Sensor®
- The SLZ-KF cassette unit includes an advanced thermal sensor that scans the room for hot and cold spots as well as occupancy. Using this information, the cassette unit can be programmed to direct airflow to certain areas of the zone in specific scenarios.
- Hot-Start
- Mitsubishi's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
- Dehumidification
- When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
- Vane Control
- Optimal air flow can be achieved with the SLZ-KF thanks to the individual vane control option. This function provides access to an auto mode and a swing mode.
- Condensate Removal System
- The SLZ-KF contains an internal drain mechanism capable of lifting condensate 33". This simplifies installation and prevents condensate overflow, which can damage or destroy your property.
- Advanced Remote Controller
- The MHK1 wireless remote controller kit supports dual set point control and multiple scheduling options. The Optimal Start function learns how quickly your zone is cooled and heated to ensure the zone is always the right temperature at the right time.
- (1) Mitsubishi - 12k BTU - M-Series Outdoor Condenser - Single Zone Only (SUZ-KA12NA2.MX)
- (1) Mitsubishi - 12k BTU - M-Series Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (SLZ-KF12NA.TH-NG)
- (1) Mitsubishi RedLINK - Wireless Remote Controller Kit - Programmable - Wall Mounted (MHK2)
- (1) Mitsubishi SLP-18FAU Ceiling Cassette Grille For Mitsubishi SLZ-KF-NA Mini Split Units - With 3D i-see Sensor (SLP-18FAEU)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The SL-KF12NA is a packaged single zone heat pump mini split system designed to bring discreet heating and cooling to any room in your home. Featuring Mitsubishi's 3D i-see Sensor®, the indoor cassette unit thermally scans for warm and cold spots so conditioned air can be directed effectively. The outdoor condenser uses some of the most advanced technology available to modulate temperature without energy-wasting overshoots and short-cycling associated with simpler systems. With an included wireless remote controller, this system is the perfect combination of convenience and comfort for any application.
Product Includes
Product Note
This product requires the following accessories for installation:
Specifications
Product Includes
- (1) Mitsubishi - 12k BTU - M-Series Outdoor Condenser - Single Zone Only (SUZ-KA12NA2.MX)
- (1) Mitsubishi - 12k BTU - M-Series Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (SLZ-KF12NA.TH-NG)
- (1) Mitsubishi RedLINK - Wireless Remote Controller Kit - Programmable - Wall Mounted (MHK2)
- (1) Mitsubishi SLP-18FAU Ceiling Cassette Grille For Mitsubishi SLZ-KF-NA Mini Split Units - With 3D i-see Sensor (SLP-18FAEU)
SL-KF12NA
Overview
Product Category
Mini Split Heat Pump System
Additional Model Numbers
SL-KF12NA.TH, SL-KF12NA
General Information
Type
Ceiling Cassette
Product Line
M-Series
Product Category
Mini Split Heat Pump System
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Outdoor Unit Size
12000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 3/8"
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Heating Capacity
12000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
22.0
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
13.3
HSPF
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
11.4
Cooling Power Input
900 Watts
Heating Power Input
1310 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
112 Pounds
Shipping Weight
116 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
202392022
SUZ-KA12NA2
General Information
Type
Outdoor Condenser
Product Line
M-Series
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Heating BTU
17000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
51 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
9 Amps
Recommended Breaker Size
16 Amps
Dimensions
Maximum Line Length
65 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 5/8 Inches
Product Width
31 1/2 Inches
Product Depth
11 1/4 Inches
Product Weight
81 Pounds
Shipping Weight
88 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
SLZ-KF12NA-NG
General Information
Type
Ceiling Cassette
Product Line
M-Series
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Grille
Not Included
Required Grille Model
SLP-18FAEU
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Air Flow
335 CFM
Minimum Air Flow
207 CFM
Minimum Sound Level
34 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
25 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
9 31/48 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
31 Pounds
Shipping Weight
37 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
MHK2
General Information
Type
Mini Split Controller
Product Line
RedLINK
Product Category
Mini Split Accessories
Programmable
Yes
Power Source
AA Batteries
Interface
Touchscreen
Performance
Minimum Operating Temperature
32 F
Maximum Operating Temperature
120 F
Dimensions
Product Height
4 1/12 Inches
Product Width
4 1/12 Inches
Product Depth
1 1/16 Inches
Overview
Product Category
Mini Split Accessories
SLP-18FAEU
General Information
Type
Grille
Product Line
M-Series
Dimensions
Product Height
6/15 Inch
Product Width
24 29/48 Inches
Product Depth
24 29/48 Inches
Product Weight
5.3 Pounds
