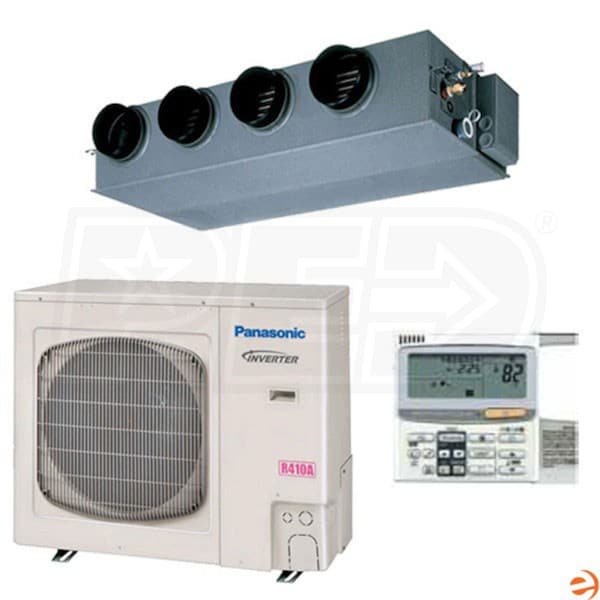

Panasonic 31,200 BTU - 36PSF1U6 - Concealed Duct - Ductless Air Conditioning System
Model:
36PSF1U6
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- 31,200 BTU Capacity
- Panasonic Engineering Quality and Experience
- Concealed Duct
- Environmentally Safe R-410A Refrigerant
- Meets a Wide Variety of Air Quality Regulations
- (1) U-36PS1U6 Outdoor Condenser
- (1) S-36PF1U6 Concealed Duct Indoor Unit with Remote Control
- Parts Warranty: 5 years
- Compressor Warranty: 7 years
- Line Set - efficiently double insulated tubing that transfers refrigerant between indoor and outdoor units
- Drain Tubing - a tube that drains condensate from the indoor unit to the drain system or outside
- Connecting Wire - provides power from an Outdoor unit to the indoor Units
- Disconnect Box & Electrical Whip Kit - provides power for an Outdoor Unit
- Condenser Plastic Pad (optional) - designed as a mounting base for an outdoor units
- Wall Bracket (optional) - in case you need to mount an outdoor unit on the wall
Panasonic 36PSF1U6 Cooling Only Concealed Duct Ductless Air Conditioning System - 31,200 BTU
Panasonic is a leading manufacturer of high quality electronic goods, and their air conditioners are no exception. The new 2012 line of Panasonic mini splits represents a step forward in both aesthetics and performance, allowing Panasonic to offer one of the top mini split lines on the market. Panasonic has over 53 years of air conditioning experience, allowing any consumer to purchase a Panasonic product knowing that the addition to their home or office will be efficient, reliable and easy to use.
The 36PSF1U6 Mini-Split air conditioner system is a fine example of Panasonic's engineering aptitude. This 31,200 system is guaranteed to meet any need a customer may have. The efficiency offered by this system is incredibly high, allowing anyone to save money on energy bills. The indoor units look great in any home, a sleek and stylish addition to any living space. The outdoor units represent Panasonic's pinnacle in engineering skill, combining high efficiency and operating range with a low footprint. The Panasonic 36PSF1U6 Concealed Duct Ductless Air Conditioning System is an incredible addition to new or existing construction.
Panasonic 36PSF1U6 Concealed Duct Ductless Air Conditioning System Features:To complete the Panasonic 36PSF1U6 Concealed Duct Ductless Air Conditioning System, consider adding the following accessories that are required to complete every ductless air conditioning system installation to your order:
By adding the required accessories to the Panasonic 36PSF1U6 Concealed Duct Ductless Air Conditioning System you are receiving a complete solution completely ready for installation, so your contractor does not need to purchase required Panasonic Accessories to finish the installation.
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Panasonic U-36PS1U6 Mini Split Outdoor Condenser Unit - 31,200 BTU (U-36PS1U6)
- (1) Panasonic S-36PF1U6 Mini Split Concealed Duct Indoor Unit - 31,200 BTU (S-36PF1U6)
36PSF1U6
General Information
Type
Ducted
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Remote Control
Wired
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
36
System Code
3600000000
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North and Southeast
Performance
Cooling BTU
31200
Cooling Capacity
36000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
15.1
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
8.1
Dimensions
Product Weight
247 Pounds
U-36PS1U6
General Information
Type
Outdoor Condenser
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wired
Installation Location
Outdoor
Performance
Cooling BTU
31200
Moisture Removal
10 Pints/Hour
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
15.1
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
8.1
Cooling Power Input
3840 Watts
Minimum Sound Level
52 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
52 dB
Electrical Data
Phase
1
Frequency
60 Hz
Recommended Breaker Size
35 Amps
Dimensions
Maximum Line Length
165 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
30 35/48 Inches
Product Width
37 Inches
Product Depth
13 3/8 Inches
Product Weight
143 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
S-36PF1U6
General Information
Type
Ducted
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wired
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
36
Installation Location
Indoor
Performance
Cooling BTU
36000
Cooling Capacity
36000 BTU
Moisture Removal
10 Pints/Hour
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
13.9
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
7.8
HSPF
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
8.5
Cooling Power Input
3290 Watts
Maximum Air Flow
1060 CFM
Minimum Air Flow
750 CFM
Heating Power Input
3340 Watts
Minimum Sound Level
31 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
38 dB
Electrical Data
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
165 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
12 11/48 Inches
Product Width
58 7/24 Inches
Product Length
24 13/16 Inches
Product Weight
104 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
